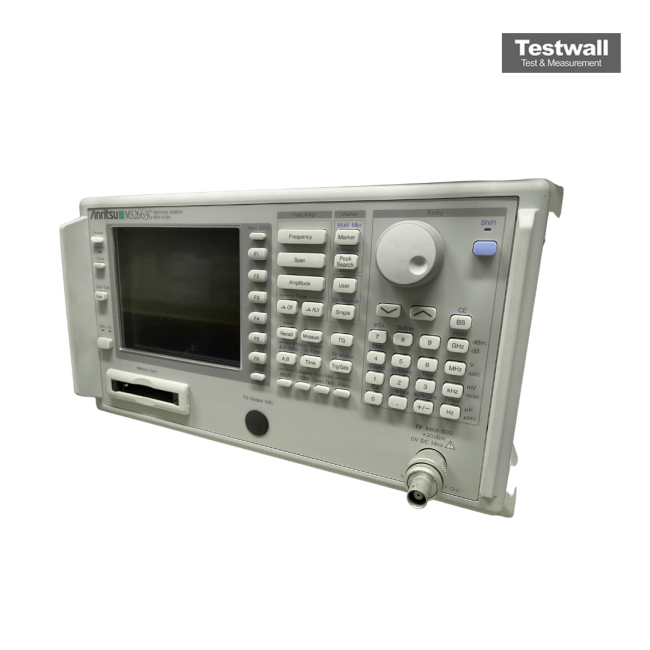

Anritsu MS2663C
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 8.1 GHz |
| Resolution Bandwidth | 1 Hz to 3 MHz |
| Phase Noise | -98 dBc/Hz at 10 kHz offset (typical) |
| Displayed Average Noise Level (DANL) | -145 dBm (typical) at 1 GHz with preamplifier |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Video Bandwidth | 1 Hz to 3 MHz |
| Dynamic Range | Greater than 100 dB |
| RF Input Connector | N-Type Female |
| Model | MS2663C |
|---|
The Anritsu MS2663C is a synthesized spectrum analyzer designed for high-precision RF analysis, covering frequencies from 10 kHz to 2.7 GHz. It provides excellent frequency resolution, fast switching speed, and delivers a high output amplitude with exceptional signal purity, making it ideal for a wide range of test scenarios.
This instrument supports AM, FM, and PM modulation as well as carrier sweeps, offering versatility for research, design validation, and advanced RF testing applications in both laboratory and field environments.
Testwall can supply the used Anritsu MS2663C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2663C.
