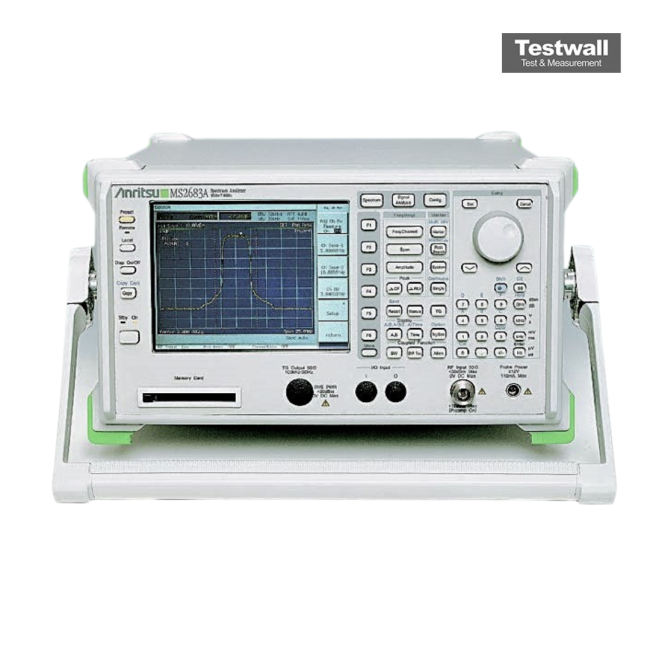

Anritsu MS2683A
| Attribute | Value |
|---|---|
| Frequency Range | 100 Hz to 7.8 GHz |
| Resolution Bandwidth | 1 Hz to 3 MHz |
| Phase Noise | -105 dBc/Hz at 10 kHz offset (typical) |
| Displayed Average Noise Level (DANL) | -152 dBm (typical, with preamplifier) |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| Dynamic Range | Greater than 100 dB |
| Amplitude Accuracy | ±0.5 dB |
| Video Bandwidth | 1 Hz to 3 MHz |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Model | MS2683A |
|---|
The Anritsu MS2683A spectrum analyzer offers a wide resolution bandwidth up to 20 MHz, a wide dynamic range of 156 dB (typ.), and high-speed sweep with a refresh rate of 20 times/s. Its GPIB data transmission speed reaches 120 kbytes/s, providing around ten times faster operation. Optional software enables high-speed modulation analysis, including 1.5 sec. with W-CDMA and 0.5 sec. with IEEE802.11a. It also supports narrow resolution bandwidth down to 1 Hz for detailed signal evaluation.
The MS2683A is designed to meet the performance requirements for advanced radio communication device evaluation. Its input attenuator allows 2 dB step adjustment, reducing mixer distortion and intrinsic noise, ensuring precise results.
Testwall can supply the used Anritsu MS2683A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2683A.
