Anritsu MS2687B
| Attribute | Value |
|---|---|
| Frequency Range | 100 Hz to 8.1 GHz |
| Resolution Bandwidth | 1 Hz to 10 MHz |
| Phase Noise | -130 dBc/Hz at 1 GHz, 10 kHz offset |
| Displayed Average Noise Level (DANL) | -152 dBm (typical) at 1 GHz, 1 Hz RBW |
| Dynamic Range | Greater than 100 dB |
| Input Attenuator Range | 0 to 65 dB in 5 dB steps |
| Amplitude Accuracy | ±0.5 dB (total absolute amplitude accuracy) |
| Maximum Input Power | +30 dBm (1 W) |
| Video Bandwidth | 1 Hz to 10 MHz |
| Power Requirements | 100 to 240 VAC, 50/60 Hz, 350 VA maximum |
| Model | MS2687B |
|---|

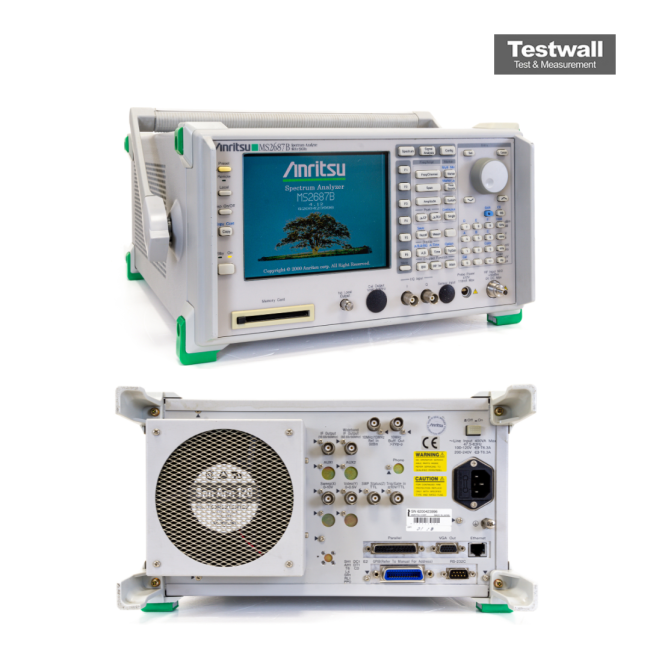

The Anritsu MS2687B Signal Analyzer is engineered for precise evaluation of both digital and analog modulation formats, offering spectrum and waveform views for comprehensive analysis. It covers a frequency range from 9 kHz to 7.8 GHz, with advanced FFT-based high-speed sweep and dual-channel input for synchronized testing.
Supporting W-CDMA, GSM, and multiple modulation standards, this analyzer is ideal for R&D applications. Its intuitive interface ensures accurate measurements with graphical clarity.
Testwall can supply the used Anritsu MS2687B Signal Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2687B Signal Analyzer.
