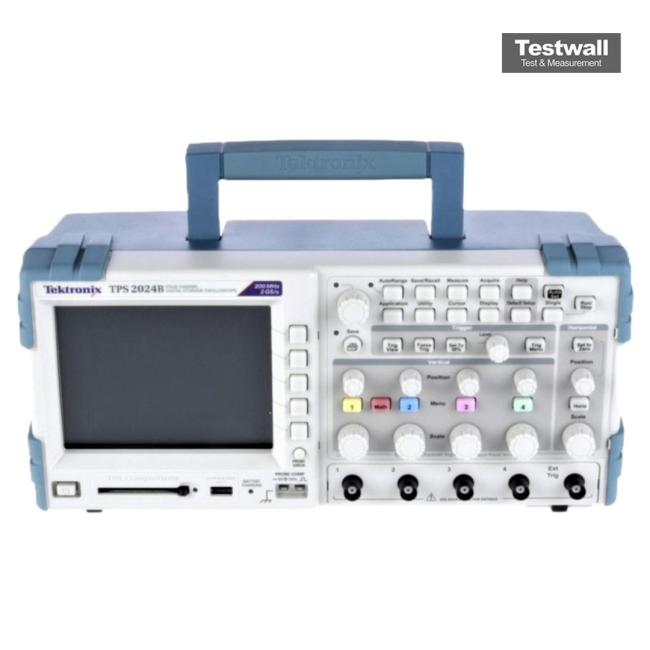

Tektronix TPS2024B
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Channels | 4 |
| Sample Rate | 2 GS/s (all channels simultaneously) |
| Record Length | 2,500 points on all channels |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Input Isolation | Each channel independently floating, up to 600 V CAT III / 1000 V CAT II |
| Display | 5.7-inch color LCD (320 x 240 resolution) |
| Power Supply | Battery powered (TPSBAT battery pack) or AC adapter (90–264 VAC, 47–63 Hz) |
Tektronix TPS2024B Options:
- TPS2024B - Opt. A0 - North America power
- TPS2024B - Opt. A1 - Universal Euro power
- TPS2024B - Opt. A2 - United Kingdom power
- TPS2024B - Opt. A3 - Australia power
- TPS2024B - Opt. A5 - Switzerland power
- TPS2024B - Opt. A6 - Japan power
- TPS2024B - Opt. A10 - China power
- TPS2024B - Opt. A11 - India power
- TPS2024B - Opt. A12 - Brazil power
- TPS2024B - Opt. A99 - No power cord or AC adapter
- TPS2024B - Opt. L0 - English user manual (071-1441-xx)
- TPS2024B - Opt. L1 - French user manual (071-1442-xx)
- TPS2024B - Opt. L2 - Italian user manual (071-1443-xx)
- TPS2024B - Opt. L3 - German user manual (071-1444-xx)
- TPS2024B - Opt. L4 - Spanish user manual (071-1445-xx)
- TPS2024B - Opt. L5 - Japanese user manual (071-1446-xx)
- TPS2024B - Opt. L6 - Portuguese user manual (071-1447-xx)
- TPS2024B - Opt. L7 - Simplified Chinese user manual (071-1448-xx)
- TPS2024B - Opt. L8 - Traditional Chinese user manual (071-1449-xx)
- TPS2024B - Opt. L9 - Korean user manual (071-1450-xx)
- TPS2024B - Opt. L10 - Russian user manual (071-1451-xx)
- TPS2024B - Opt. SILV200 - Standard Warranty Extended to 5 Years
The Tektronix TPS2024B is a 4-channel, 200 MHz digital oscilloscope equipped with IsolatedChannel technology for safe, floating, and differential signal measurements. It delivers 2 GS/s real-time sampling, 2.5k memory depth, FFT, and 8 hours of battery operation—ideal for field, automotive, and power electronics applications.
Its isolated inputs, power measurement capabilities, and rugged, battery-operated design support advanced diagnostics in harsh environments.
Testwall can supply the used Tektronix TPS2024B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TPS2024B.
