Anritsu MS2711
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Display | Sunlight-readable color LCD, 320 x 240 pixels |
| Dynamic Range | +20 dBm to -107 dBm (displayed average noise level) |
| Frequency Resolution | 100 Hz |
| Resolution Bandwidth (RBW) | 100 Hz to 1 MHz in 1-3-10 steps |
| Video Bandwidth (VBW) | 3 Hz to 1 MHz in 1-3-10 steps |
| Input Impedance | 50 Ohms |
| Battery Life | Approximately 2 hours with standard battery pack |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Weight | Approximately 2.7 kg (5.9 lbs) with battery |
Anritsu MS2711 Options:
- MS2711 - Option 5 - RF Watt Meter Power Monitor (RF Detector not included)
- MS2711 - Option 20 - Tracking Generator, 50 Ohm
| Model | MS2711 |
|---|

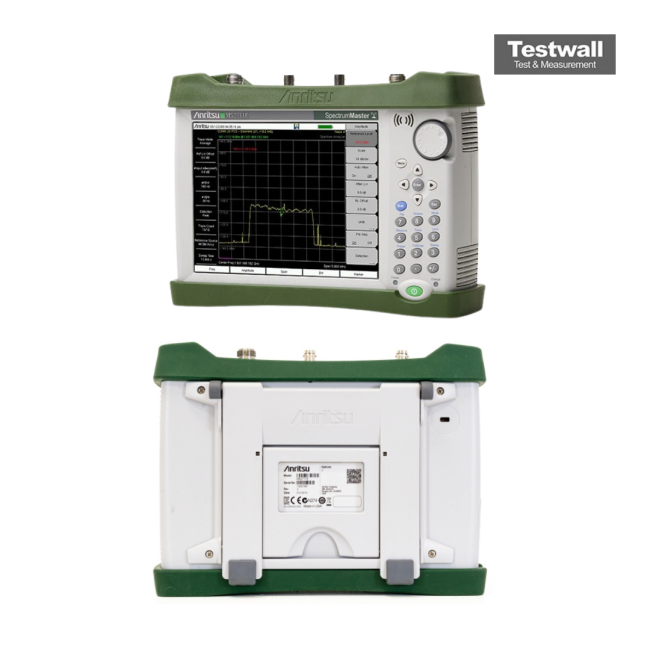

The Anritsu MS2711 Handheld Spectrum Analyzer is a compact, battery-operated instrument (≈ 4.9 lb / 2.2 kg) covering 100 kHz to 3 GHz, featuring RBWs from 10 kHz to 1 MHz, VBWs from 100 Hz to 300 kHz, ±2 dB amplitude accuracy, quick 1‑2‑5 zoom display, and storage for up to 200 traces with automatic time/date stamping. It includes trace averaging, one-button measurements, alphanumeric labeling, and RS‑232 connectivity, delivering robust, field-ready performance in a rugged design.
Built for mobility and demanding environments, the MS2711 excels in site surveys, cellular/DCS/PCS, paging, WLAN/WPBX, and other wireless system applications. Its synthesizer-based architecture ensures accurate, reliable, and repeatable measurements, with fully tested operation even under harsh handling.
Testwall can supply the used Anritsu MS2711 Handheld Spectrum Analyzer, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2711 Handheld Spectrum Analyzer.
