Tektronix RSA3308B
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 8 GHz |
| Real-Time Bandwidth | 40 MHz |
| Displayed Average Noise Level (DANL) | -161 dBm/Hz (typical) at 1 GHz |
| Phase Noise | -110 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| Dynamic Range | 78 dB (TOI-based, typical) |
| Display | 10.4-inch color XGA LCD touchscreen |
Tektronix RSA3308B Options:
- RSA3308B - Opt. 1R - Rackmount
- RSA3308B - Opt. 1A - External preamp, 20 dB gain to 3 GHz
- RSA3308B - Opt. 02 - 256 MB Data Memory with Frequency Mask Trigger and Power (Span BW) Trigger
- RSA3308B - Opt. 03 - Differential IQ Inputs
- RSA3308B - Opt. 21 - General-purpose Digital Modulation Analysis
- RSA3308B - Opt. A0 - North America power
- RSA3308B - Opt. A1 - Universal Euro power
- RSA3308B - Opt. A2 - United Kingdom power
- RSA3308B - Opt. A3 - Australia power
- RSA3308B - Opt. A4 - 240 V, North America power
- RSA3308B - Opt. A5 - Switzerland power
- RSA3308B - Opt. A6 - Japan power
- RSA3308B - Opt. A10 - China power
- RSA3308B - Opt. A99 - No power cord or AC adapter
- RSA3308B - Opt. L0 - English User/Programmer's Manual
- RSA3308B - Opt. L5 - Japanese User/Programmer's Manual
- RSA3308B - Opt. C3 - Calibration Service 3 years
- RSA3308B - Opt. C5 - Calibration Service 5 years
- RSA3308B - Opt. D1 - Calibration Data Report
- RSA3308B - Opt. D3 - Calibration Data Report 3 years (with Opt. C3)
- RSA3308B - Opt. D5 - Calibration Data Report 5 years (with Opt. C5)
- RSA3308B - Opt. R3 - Repair Service 3 years
- RSA3308B - Opt. R5 - Repair Service 5 years
| Model | RSA3308B |
|---|

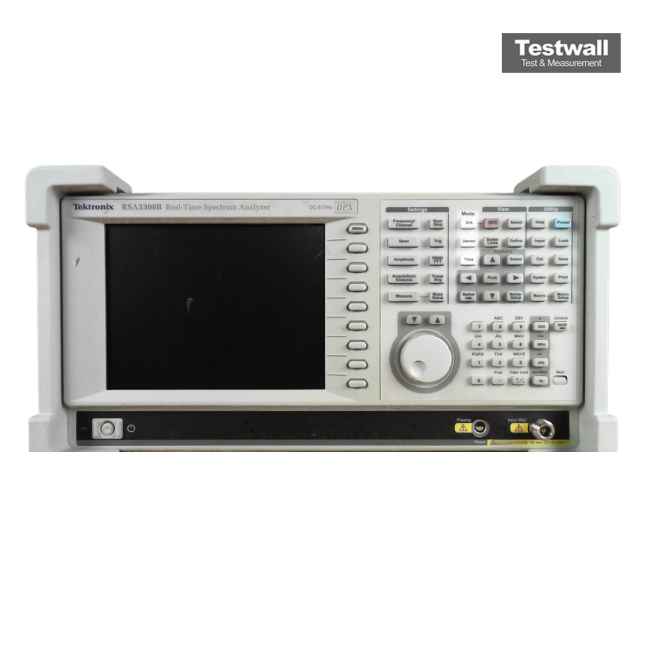

The Tektronix RSA3308B Real-Time Spectrum Analyzer offers a frequency range from DC to 8 GHz, capturing all signals within up to 36 MHz spans into memory. With DPX Live RF spectrum display performing over 48,000 measurements per second, it delivers real-time views of transient RF events. Key features include Frequency Mask Trigger, extensive time-correlated vector analysis across domains, and compatibility with TekConnect probes for enhanced signal probing.
Ideal for RF debugging, spectrum monitoring, and characterizing radar or pulsed RF signals, the RSA3308B supports vector analysis and analog demodulation with advanced power and pulse measurements.
Testwall can supply the used Tektronix RSA3308B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix RSA3308B.
