Anritsu

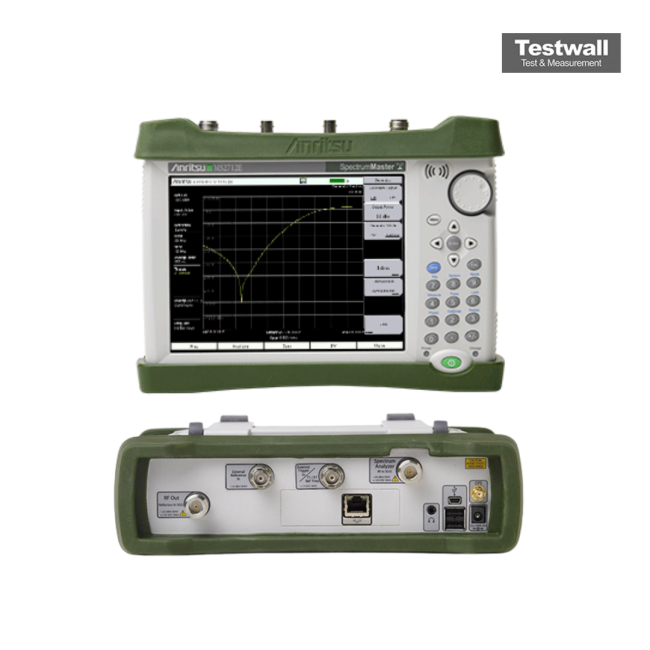

Anritsu MS2712E
100kHz To 4GHz Spectrum Master
100 kHz to 1.6 GHz Frequency Range
+20 dBm to -135 dBm (DANL) Dynamic Range
1 Hz to 3 MHz Resolution Bandwidth
7-inch sunlight-readable color LCD touchscreen Display
Up to 4 hours of continuous operation with internal battery Battery Life
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 1.6 GHz |
| Dynamic Range | +20 dBm to -135 dBm (DANL) |
| Resolution Bandwidth | 1 Hz to 3 MHz |
| Display | 7-inch sunlight-readable color LCD touchscreen |
| Battery Life | Up to 4 hours of continuous operation with internal battery |
| Weight | Approximately 2.6 kg (5.7 lbs) with battery |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Sweep Speed | Up to 1 GHz/second (in zero span mode) |
| Connector Type | Type-N female RF input connector |
| Storage Capacity | Internal memory plus USB and SD card external storage support |
Anritsu MS2712E 100kHz To 4GHz Spectrum Master Options:
- MS2712E - 009 - 20 MHZ Bandwidth Demod
- MS2712E - 010 - Bias-Tee
- MS2712E - 019 - High-Accuracy Power Meter
- MS2712E - 020 - Tracking Generator
- MS2712E - 021 - 2-Port Transmission Measurement
- MS2712E - 025 - Interference Analyzer
- MS2712E - 027 - Channel Scanner
- MS2712E - 028 - C/W Signal Generator
- MS2712E - 029 - Power Meter
- MS2712E - 030 - Isdb-T Digital Video Measurements
- MS2712E - 031 - Gps Receiver
- MS2712E - 032 - Isdb-T Sfn Measurements
- MS2712E - 033 - Cdma Ota Measurements
- MS2712E - 034 - Ev-Do Ota Measurements
- MS2712E - 035 - W-Cdma/Hspa+ Ota Measurements
- MS2712E - 037 - Mobile Wimax Ota Measurements
- MS2712E - 038 - Td-Scdma/Hspa+ Ota Measurements
- MS2712E - 040 - Gsm/Edge Rf Measurements
- MS2712E - 041 - Gsm/Edge Demodulation
- MS2712E - 042 - Cdma Rf Measurements
- MS2712E - 043 - Cdma Demodulation
- MS2712E - 044 - W-Cdma/Hspa+ Rf Measurements
- MS2712E - 046 - Fixed Wimax Rf Measurements
- MS2712E - 047 - Fixed Wimax Demodulation
- MS2712E - 057 - Dvb-T/H Ber Measurements
- MS2712E - 060 - Td-Scdma/Hspa+ Measurements
- MS2712E - 061 - Td-Scdma/Hspa+ Demodulation
- MS2712E - 062 - Ev-Do Rf Measurements
- MS2712E - 063 - Ev-Do Demodulation
- MS2712E - 064 - Dvb-T/H Digital Video Measurements
- MS2712E - 065 - W-Cdma/Hspa+ Demodulation
- MS2712E - 066 - Mobile Wimax Rf Measurements
- MS2712E - 067 - Mobile Wimax Demodulation
- MS2712E - 078 - Dvb-T/H Sfn Measurements
- MS2712E - 079 - Isdb-T Ber Measurements
- MS2712E - 090 - Gated Sweep
- MS2712E - 411 - Ethernet Connectivity
- MS2712E - 431 - Coverage Mapping
- MS2712E - 444 - Emf Measurements
- MS2712E - 509 - Am/Fm/Pm Analyzer
- MS2712E - 520 - P25 Analyzer Measurements
- MS2712E - 522 - P25 Coverage Measurements
- MS2712E - 530 - Nxdn Analyzer Measurements
- MS2712E - 532 - Nxdn Analyzer Measurements
- MS2712E - 541 - Lte Rf Measurements
- MS2712E - 542 - Lte Modulation Quality
- MS2712E - 546 - Lte Ota Measurements
- MS2712E - 551 - Td-Lte Rf Measurements
- MS2712E - 552 - Td-Lte Modulation Quality
- MS2712E - 556 - Td-Lte Ota Measurements
- MS2712E - 752 - Cpri Lte Rf Measurements
- MS2712E - 753 - Obsai Lte Rf Measurements
- MS2712E - 759 - Rf Over Fiber Hardware
- MS2712E - 880 - Gsm/Gprs/Edge Measurements
- MS2712E - 881 - W-Cdma/Hspa+ Measurements
- MS2712E - 882 - Td-Scdma/Hspa+ Measurements
- MS2712E - 883 - Lte/Lte-A Fdd/Tdd Measurements
- MS2712E - 884 - Cdma/Ev-Do Measurements
- MS2712E - 885 - Wimax Fixed/Mobile Measurements
- MS2712E - 886 - Lte 256Qam Demodulation
- MS2712E - 887 - Nb-Iot Measurements
| Model | MS2712E |
|---|
The Anritsu MS2712E Spectrum Master covers a 9kHz to 4GHz frequency range with a resolution bandwidth from 1Hz to 3MHz and a DANL as low as -162dBm. It includes a standard pre-amplifier, optional tracking generator, and versatile analysis features. This battery-powered, portable device excels in RF, microwave, and field strength measurements.
Designed for 2G/3G/4G cellular, land mobile radio, Wi-Fi, and broadcast signal analysis, the MS2712E supports interference analysis, signal mapping, and comprehensive field testing.
Testwall can supply the used Anritsu MS2712E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2712E.
