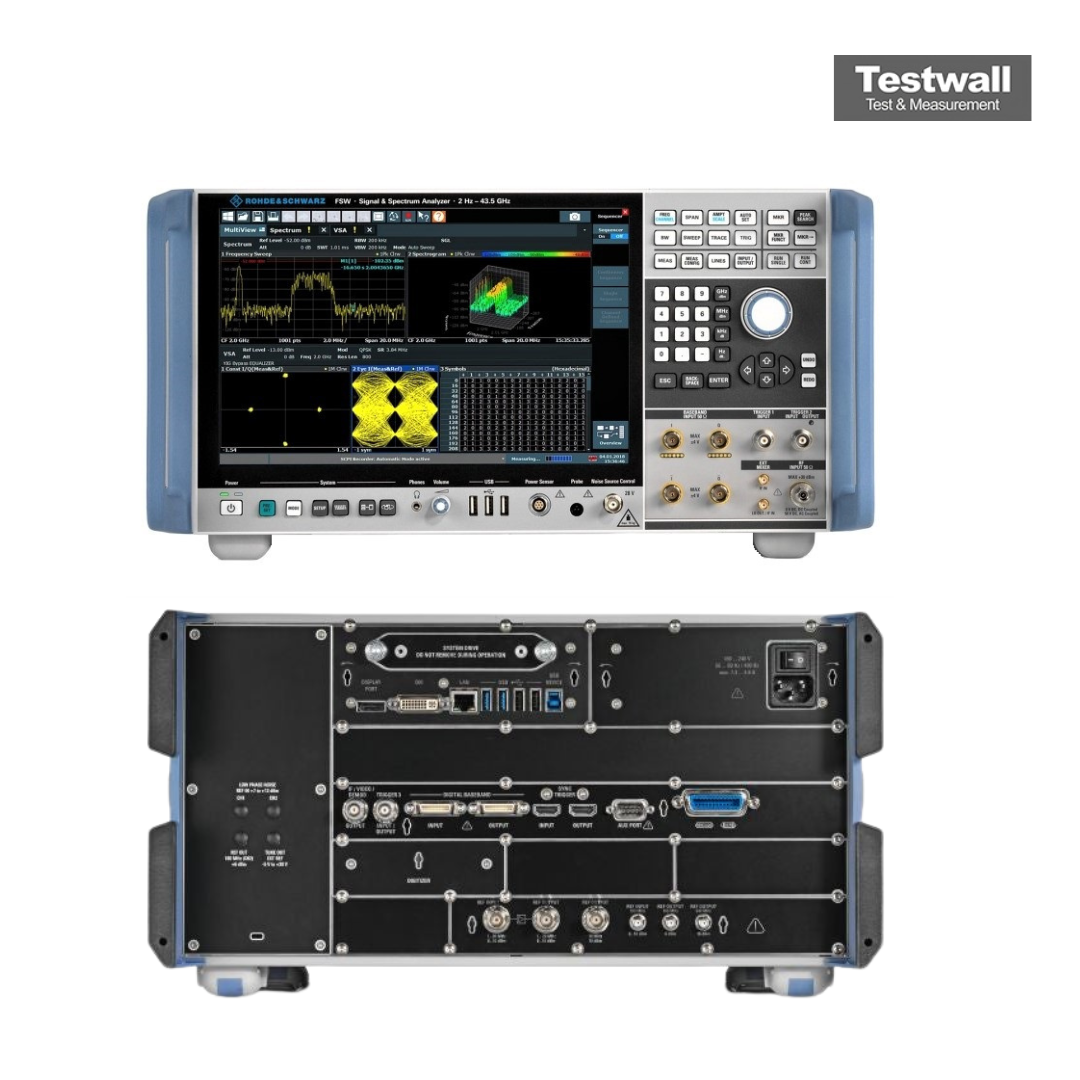

Rohde & Schwarz FSW26
Signal and Spectrum Analyser 2Hz-26.5GHz
2 Hz to 26.5 GHz Frequency Range
-174 dBm/Hz (typ.) with preamplifier enabled Displayed Average Noise Level (DANL)
-142 dBc/Hz at 10 kHz offset from 1 GHz carrier (typ.) Phase Noise
Up to 110 dB third-order intermodulation-free dynamic range Dynamic Range
1 Hz to 50 MHz Resolution Bandwidth (RBW)
| Attribute | Value |
|---|---|
| Frequency Range | 2 Hz to 26.5 GHz |
| Displayed Average Noise Level (DANL) | -174 dBm/Hz (typ.) with preamplifier enabled |
| Phase Noise | -142 dBc/Hz at 10 kHz offset from 1 GHz carrier (typ.) |
| Dynamic Range | Up to 110 dB third-order intermodulation-free dynamic range |
| Resolution Bandwidth (RBW) | 1 Hz to 50 MHz |
| Maximum Input Power | +30 dBm (1 W) at RF input |
| Analysis Bandwidth | Up to 2 GHz (with optional bandwidth extensions) |
| Input Impedance | 50 Ohm |
| Level Measurement Uncertainty | < 0.4 dB (typ.) total amplitude accuracy |
| Display | 12.1-inch XGA touchscreen display (1024 x 768 resolution) |
Rohde & Schwarz FSW26 Options:
- FSW26 - B4 - OCXO Precision Frequency Reference
- FSW26 - B8 - Resolution Bandwidth > 10 MHz
- FSW26 - B10 - External Generator Control
- FSW26 - B13 - Highpass Filter for Harmonic Measurements
- FSW26 - B17 - Digital Baseband Interface
- FSW26 - B18 - Spare Solid State Drive (removable hard drive)
- FSW26 - B21 - LO/IF Connections for External Mixers
- FSW26 - B24 - RF Preamplifier, 100 kHz to 26.5 GHz
- FSW26 - B25 - Electronic Attenuator, 1 dB steps
- FSW26 - B28 - 28 MHz Analysis Bandwidth
- FSW26 - B33 - USB Mass Memory Write Protection
- FSW26 - B40 - 40 MHz Analysis Bandwidth
- FSW26 - B71 - Analog Baseband Inputs, 40 MHz Analysis Bandwidth
- FSW26 - B71E - 80 MHz Analysis Bandwidth for Analog Baseband Inputs
- FSW26 - B80 - 80 MHz Analysis Bandwidth
- FSW26 - B160 - 160 MHz Analysis Bandwidth
- FSW26 - B160R - Real-Time Spectrum Analyzer 160 MHz, POI ≤ 15 µs
- FSW26 - B320 - 320 MHz Analysis Bandwidth
- FSW26 - B500 - 500 MHz Analysis Bandwidth
- FSW26 - B2000 - 2 GHz Analysis Bandwidth
- FSW26 - K6 - Pulse Measurements
- FSW26 - K6S - Time Side Lobe Measurement
- FSW26 - K7 - Analog Modulation Analysis for AM/FM/φM
- FSW26 - K10 - GSM/EDGE/EDGE Evolution/VAMOS Measurements
- FSW26 - K17 - Multicarrier Group Delay Measurements
- FSW26 - K18 - Amplifier Measurements
- FSW26 - K30 - Noise Figure Measurements
- FSW26 - K33 - Security Write Protection of Solid State Drive
- FSW26 - K40 - Phase Noise Measurements
- FSW26 - K54 - EMI Measurements
- FSW26 - K60 - Transient Measurement Application
- FSW26 - K60H - Transient Hop Measurement
- FSW26 - K60C - Transient Chirp Measurement
- FSW26 - K70 - Vector Signal Analysis
- FSW26 - K72 - 3GPP FDD (WCDMA) BS Measurements (incl. HSDPA and HSDPA+)
- FSW26 - K73 - 3GPP FDD (WCDMA) MS Measurements (incl. HSUPA and HSUPA+)
- FSW26 - K76 - TD-SCDMA BS Measurements
- FSW26 - K77 - TD-SCDMA UE Measurements
- FSW26 - K82 - CDMA2000® BS Measurements
- FSW26 - K83 - CDMA2000® MS Measurements
- FSW26 - K84 - 1xEV-DO BS Measurements
- FSW26 - K85 - 1xEV-DO MS Measurements
- FSW26 - K91 - IEEE802.11a/b/g Measurements
- FSW26 - K91N - IEEE802.11n Measurements
- FSW26 - K91AC - IEEE802.11ac Measurements
- FSW26 - K91P - IEEE802.11p Measurements
- FSW26 - K100 - EUTRA/LTE FDD BS Measurements
- FSW26 - K101 - EUTRA/LTE TDD UE Measurements
- FSW26 - K102 - EUTRA/LTE BS MIMO Measurements
- FSW26 - K103 - EUTRA/LTE UL Advanced UL Measurements
- FSW26 - K104 - EUTRA/LTE TDD BS Measurements
- FSW26 - K105 - EUTRA/LTE TDD Uplink Measurements
- FSW26 - K192 - DOCSIS 3.1 OFDM Downstream
- FSW26 - K160RE - 160 MHz Real-Time Measurement Application, POI > 15 µs
- FSW26 - U21 - LO/IF Connections for External Mixers (upgrade)
- FSW26 - U40 - Analysis Bandwidth Upgrade from 28 MHz to 40 MHz
- FSW26 - U80 - Analysis Bandwidth Upgrade from 40 MHz to 80 MHz
- FSW26 - U160 - Analysis Bandwidth Upgrade from 80 MHz to 160 MHz
- FSW26 - U160R - Real-Time Spectrum Analyzer, 160 MHz, POI ≤ 15 µs
- FSW26 - U320 - Analysis Bandwidth Upgrade from 160 MHz to 320 MHz
- FSW26 - U500 - Analysis Bandwidth Upgrade from 80 MHz to 500 MHz
- FSW26 - U2000 - Upgrade to 2 GHz Signal Analysis Bandwidth
| Model | FSW26 |
|---|
The R&S FSW26 high performance signal and spectrum analyser (up to 67 GHz) supporting multiple wireless standards such as WLAN / WCDMA / LTE / GSM / CDMA2000.
The high-performance R&S FSW26 signal and spectrum analyser was developed to meet demanding customer requirements. Offering low phase noise, wide analysis bandwidth and straightforward and intuitive operation, the analyser makes measurements fast and easy.
Key Features
Frequency range from 2 Hz to 26 GHz
Low phase noise of?137 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)
88 dBc dynamic range (with noise cancellation) for WCDMA ACLR measurements
Up to 320 MHz analysis bandwidth
0.4 dB total measurement uncertainty up to 8 GHz
Real-time analysis up to 160 MHz bandwidth
High-resolution 12.1" (31 cm) touchscreen for convenient operation
Multiple measurement applications can be run and displayed in parallel
