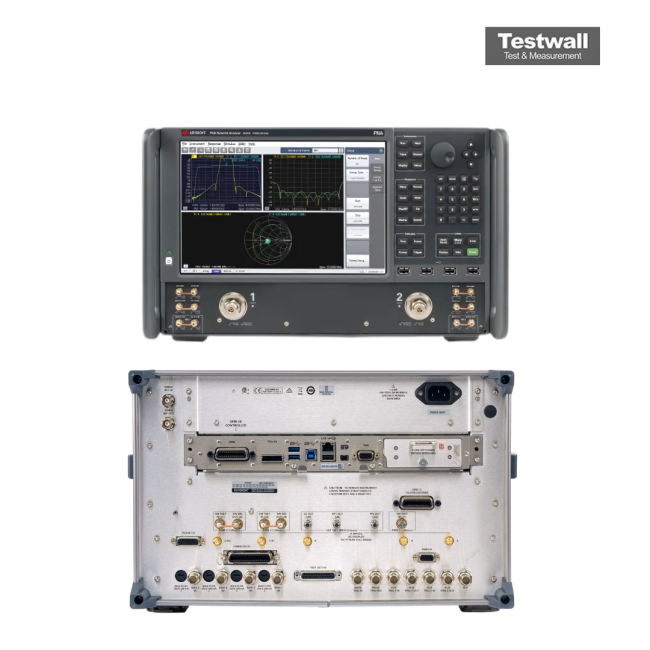

Keysight (Agilent) N5244B
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 43.5 GHz |
| Number of Ports | 4 |
| Dynamic Range | Up to 123 dB |
| Output Power Range | -85 dBm to +13 dBm |
| Trace Noise (Magnitude) | 0.004 dB RMS at 10 Hz IF bandwidth |
| Test Port Connector Type | 2.4 mm (male) |
| Measurement Speed | Up to 42 µs per point (fast sweep mode) |
| IF Bandwidth | 1 Hz to 15 MHz |
| System Directivity | Up to 50 dB (with calibration) |
| Power Supply | 100–240 VAC, 50/60 Hz |
Keysight (Agilent) N5244B Options:
- N5244B - 029 - Adds hardware and firmware for high-accuracy noise figure measurements (requires one of Option 22x or 42x)
- N5244B - 201 - 2-port standard test set (includes six front-panel access loops) and power range
- N5244B - 217 - 2-port standard test set (includes six front-panel access loops), power range, and source and receiver attenuators (extended power range)
- N5244B - 219 - 2-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), and bias-tees
- N5244B - 222 - 2-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, and mechanical switches to the 2-port analyzer
- N5244B - 224 - 2-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, mechanical switches to the 2-port analyzer, and bias tees
- N5244B - 401 - 4-port standard test set (includes twelve front-panel access loops), power range, and an internal second source
- N5244B - 417 - 4-port standard test set (includes twelve front-panel access loops), power range, internal second source, and source and receiver attenuators (extended power range)
- N5244B - 419 - 4-port standard test set (includes twelve front-panel access loops), power range, internal second source, and source and receiver attenuators (extended power range), and bias-tees
- N5244B - 422 - 4-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, and mechanical switches to the 4-port analyzer
- N5244B - 423 - 4-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, mechanical switches to the 4-port analyzer, and bias tees
| Model | N5244B |
|---|
The Keysight (Agilent) N5244B is a high-performance PNA-X Vector Network Analyzer offering frequency coverage from 900 Hz to 43.5 GHz. It features dual internal signal sources, a combiner, S-parameter and noise receivers, pulse modulation tools, and versatile RF access points. With a dynamic range of 134 dB at 20 GHz, low trace noise of 0.002 dB rms, and output power up to +13 dBm at 1 GHz, it's ideal for comprehensive active device testing.
Designed for measuring amplifiers, mixers, and frequency converters, the N5244B delivers fast speeds (3.6 to 23 μs/point), robust stability (<0.03 dB/°C), and high compression tolerance, making it suitable for advanced RF applications.
Testwall can supply the used Keysight (Agilent) N5244B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5244B.
