Anritsu MT1000A-100GE
| Attribute | Value |
|---|---|
| Interface | 100GE (100 Gigabit Ethernet) |
| Form Factor | Module for MT1000A Network Master Pro |
| Test Rates | 100 Gbps |
| Connector Type | CFP2 optical interface |
| Supported Standards | IEEE 802.3ba, ITU-T G.8261, RFC 2544, Y.1564 |
| Test Capabilities | Traffic generation and analysis, BER testing, latency measurement, frame loss measurement |
| Protocol Support | Ethernet, OTN (OTU4), MPLS, IP/UDP |
| Optical Wavelength | 1310 nm / 1550 nm (varies by transceiver) |
| Power Supply | Powered via MT1000A mainframe |
| Operating Temperature | 0°C to +45°C (32°F to 113°F) |
Anritsu MT1000A-100GE Options:
- MT1000A-100GE - MT1000A-003 - Connectivity for WLAN/Bluetooth
- MT1000A-100GE - MT1000A-005 - AUX I/O (required for MU100090A)
- MT1000A-100GE - MT1000A-006 - High Power Supply (required for MU100011A)
- MT1000A-100GE - MU100010A-001 - Up to 2.7G Dual Channel (includes OTN OTU1, Ethernet 10/100M/1G, SDH up to STM-16, SONET up to OC-48, PDH E1/E3/E4, DSn DS1/DS3)
- MT1000A-100GE - MU100010A-011 - Ethernet 10G Single Channel
- MT1000A-100GE - MU100010A-012 - Ethernet 10G Dual Channel
- MT1000A-100GE - MU100010A-020 - TCP Throughput
- MT1000A-100GE - MU100010A-051 - OTN 10G Single Channel
- MT1000A-100GE - MU100010A-052 - OTN 10G Dual Channel
- MT1000A-100GE - MU100010A-061 - ODU Multiplexing
- MT1000A-100GE - MU100010A-062 - ODU Flex
- MT1000A-100GE - MU100010A-071 - CPRI/OBSAI Up to 5G Dual Channel
- MT1000A-100GE - MU100010A-072 - CPRI/OBSAI 6G to 10G Single Channel
- MT1000A-100GE - MU100010A-073 - CPRI/OBSAI 6G to 10G Dual Channel
- MT1000A-100GE - MU100010A-002 - FC 1G 2G 4G Dual Channel
- MT1000A-100GE - MU100010A-091 - FC 8G 10G Single Channel
- MT1000A-100GE - MU100010A-092 - FC 8G 10G Dual Channel
- MT1000A-100GE - MU100010A-081 - STM-64 OC-192 Single Channel
- MT1000A-100GE - MU100010A-082 - STM-64 OC-192 Dual Channel
- MT1000A-100GE - MU100011A-001 - Up to 10G Single Channel (includes OTN OTU1/OTU2/OTU1e/OTU2e/OTU1f/OTU2f, Ethernet up to 10G, SDH up to STM-64, SONET up to OC-192)
- MT1000A-100GE - MU100011A-003 - Up to 10G Dual Channel
- MT1000A-100GE - MU100011A-013 - Ethernet 40G Single Channel
- MT1000A-100GE - MU100011A-015 - Ethernet 100G Single Channel
- MT1000A-100GE - MU100011A-017 - Ethernet 25G Single Channel
- MT1000A-100GE - MU100011A-020 - TCP Throughput
- MT1000A-100GE - MU100011A-023 - RS-FEC for 100GBASE-SR4
- MT1000A-100GE - MU100011A-053 - OTN 40G Single Channel
- MT1000A-100GE - MU100011A-055 - OTN 100G Single Channel
- MT1000A-100GE - MU100011A-062 - ODU Flex
- MT1000A-100GE - MU100011A-063 - ODU Multiplexing/Multi Stage
- MT1000A-100GE - MU100011A-004 - Up to 10G FC Single Channel
- MT1000A-100GE - MU100011A-005 - Up to 10G FC Dual Channel
- MT1000A-100GE - MU100011A-091 - FC 16G Single Channel
- MT1000A-100GE - MU100011A-071 - CPRI/OBSAI Up to 10G Single Channel
- MT1000A-100GE - MU100011A-072 - CPRI/OBSAI Up to 10G Dual Channel
- MT1000A-100GE - MU100011A-083 - STM-256/OC-768 Client Signal
| Model | MT1000A-100GE |
|---|

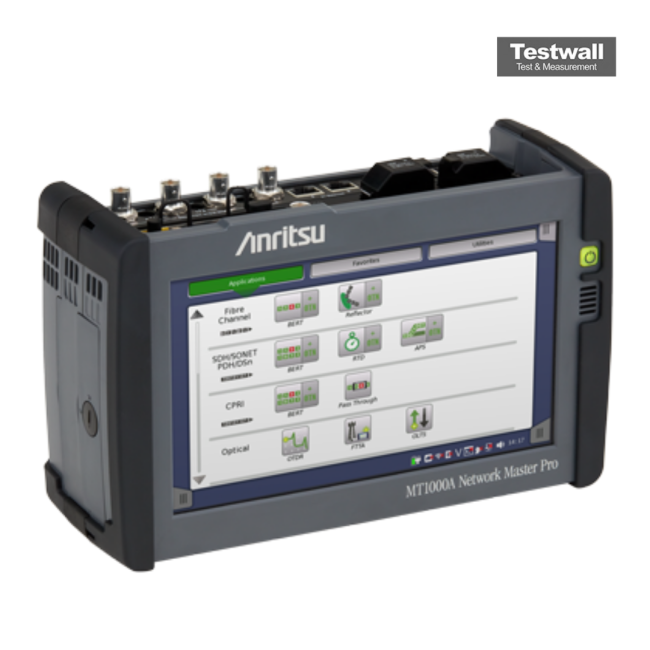

The Anritsu MT1000A 100GE Network Master Pro is a versatile field test unit supporting Ethernet from 1 Mbps to 100 Gbps, OTN, OTDR, SONET/SDH, and CPRI/eCPRI. With a touchscreen GUI, automated pass/fail testing, Wi-Fi, and remote operation, this compact <3.5 kg device ensures accurate real-time QoS metrics, RFC 2544 testing, and line-rate traffic generation.
Lightweight and rugged, it is ideal for technicians performing installation and maintenance, offering throughput, latency, frame loss, and delay measurement with unmatched efficiency in field environments.
Testwall can supply the used Anritsu MT1000A 100GE Network Master Pro, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT1000A 100GE Network Master Pro.
