Anritsu
Anritsu MU183040A
28G/32G bit/s error detector module, 1 or 2 ch, for MP1800A
2.4 to 28.1 Gbit/s (32.1 Gbit/s with opt. 001) Bit Rate
1 or 2 Channels
2 Vp-p Max Input Amplitude
Not available Clock Recovery
| Attribute | Value |
|---|---|
| Bit Rate | 2.4 to 28.1 Gbit/s (32.1 Gbit/s with opt. 001) |
| Channels | 1 or 2 |
| Max Input Amplitude | 2 Vp-p |
| Clock Recovery | Not available |
Anritsu MU183040A Options:
- MU183040A-001 - 32.1 Gbit/s extension
- MU183040A-010 - 1ch ED
- MU183040A-020 - 2ch ED
The MU183040A is a 1- or 2-channel NRZ error detector plug-in for the MP1800A, operating from 2.4 to 28.1 Gbit/s or 32.1 Gbit/s with option 001. It accepts inputs up to 2 Vp-p; clock recovery is not available on this A version.
Fits the MP1800A (requires MP1800A-032) and pairs with the MU183020A PPG. Discontinued and replaced by the higher-sensitivity MU183040B.

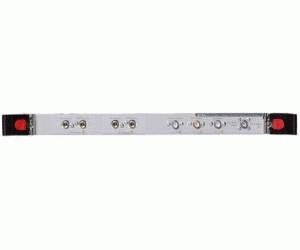

Image shows the Anritsu MU183040B, which shares the same form factor.
Testwall can supply the used Anritsu MU183040A, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Anritsu MU183040A.
