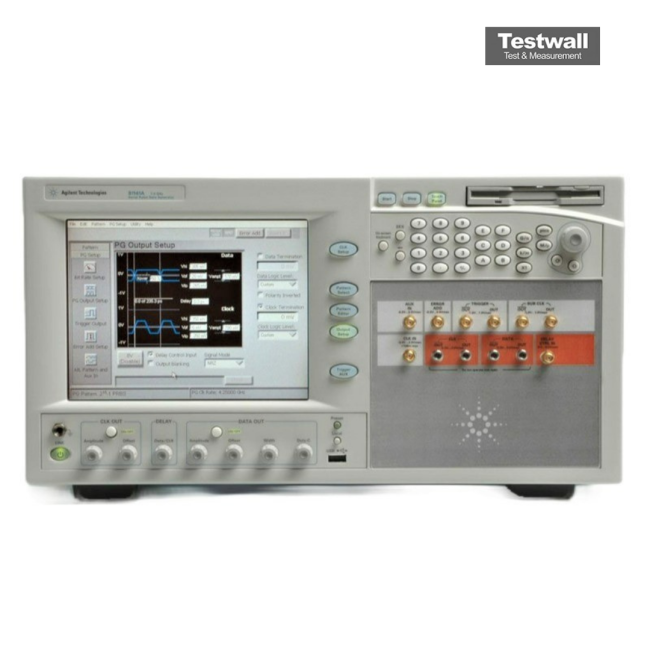

Keysight (Agilent) 81142A
| Attribute | Value |
|---|---|
| Repetition Rate | 150 MHz to 13.5 GHz |
| Amplitude | 0.1 to 1.8 V, -2 to +3 V |
| Pulse Width | 35 ps to period - 35 ps |
| Output Impedance | 50 Ω |
| Output Connector | 2.4 mm female |
| Channels | 1 data and 1 clock, differential |
| Data Rate | 150 Mb/s to 13.5 Gb/s, NRZ, RZ, R1 |
| Transition Times | < 20 ps (20/80), < 25 ps (10/90) |
| Timing Resolution | 100 fs (clock/data delay ±0.75 ns) |
| Jitter | 1 ps RMS (clock, typ.), 9 ps p-p (data, typ.) |
| Pattern Memory | 32 Mbit, PRBS 2^n - 1, n = 7, 10, 11, 15, 23, 31 |
| Interfaces | GPIB, LAN, USB |
| Dimensions | 425 × 222 × 580 mm |
| Weight | 24.5 kg |
The Keysight (Agilent) 81142A Pulse Data Generator operates at up to 13 GHz, supporting serial data testing with RZ, R1, and NRZ formats. It provides low jitter signals and precise delay modulation up to 1 GHz, essential for jitter tolerance and transfer testing. High-quality waveform generation supports eye diagram analysis with full pattern and sequence flexibility for protocol emulation.
It is ideal for physical layer and stress testing applications requiring accurate signal control and modulation capabilities.
Testwall can supply the used Keysight (Agilent) 81142A Pulse Data Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 81142A Pulse Data Generator.
