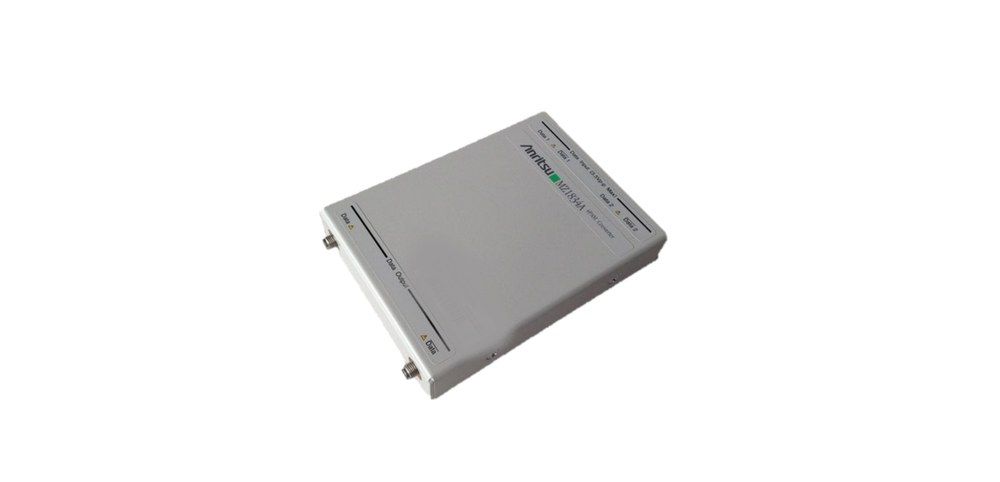

Anritsu MZ1834A
4PAM converter for MP1800A 28G/32G PPG modules
4PAM Modulation Format
2 (Data, xData) Outputs
4 (Data1, xData1, Data2, xData2) Inputs
0.5 to 3.5 Vp-p Input Amplitude
0.238 to 0.475 Vp-p (2 V PPG option); 0.238 to 0.832 Vp-p (3.5 V option) Output Amplitude (nominal)
| Attribute | Value |
|---|---|
| Modulation Format | 4PAM |
| Outputs | 2 (Data, xData) |
| Inputs | 4 (Data1, xData1, Data2, xData2) |
| Input Amplitude | 0.5 to 3.5 Vp-p |
| Output Amplitude (nominal) | 0.238 to 0.475 Vp-p (2 V PPG option); 0.238 to 0.832 Vp-p (3.5 V option) |
| Insertion Loss | -16 dB nominal |
The MZ1834A is a passive 4PAM converter that combines two NRZ data streams from MP1800A pulse pattern generators into a differential PAM4 signal. It provides Data/xData outputs from four NRZ inputs, for PAM4 test signal generation up to 32.1 Gbaud.
Used with the MP1800A and MU183020A/MU183021A PPG modules; output level depends on the PPG amplitude option (2 V or 3.5 V).
