Anritsu S114C
| Attribute | Value |
|---|---|
| Frequency Range | 2 MHz to 1.6 GHz |
| Measurement Modes | Cable Loss, Distance-to-Fault (DTF), Return Loss, VSWR, Smith Chart |
| Dynamic Range | Up to 65 dB |
| Distance Range (DTF) | Up to 1500 meters (in free space) |
| Display | 7-inch sunlight-readable color LCD touchscreen |
| Data Points | Up to 1001 data points |
| Battery Life | Approximately 4 hours of continuous operation |
| Connector Type | N-Type (female) RF port |
| Storage | Internal memory plus USB port for external storage |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
Anritsu S114C Options:
- S114C - Option 5 - RF Power Monitor (RF Detector not included)
| Model | S114C |
|---|

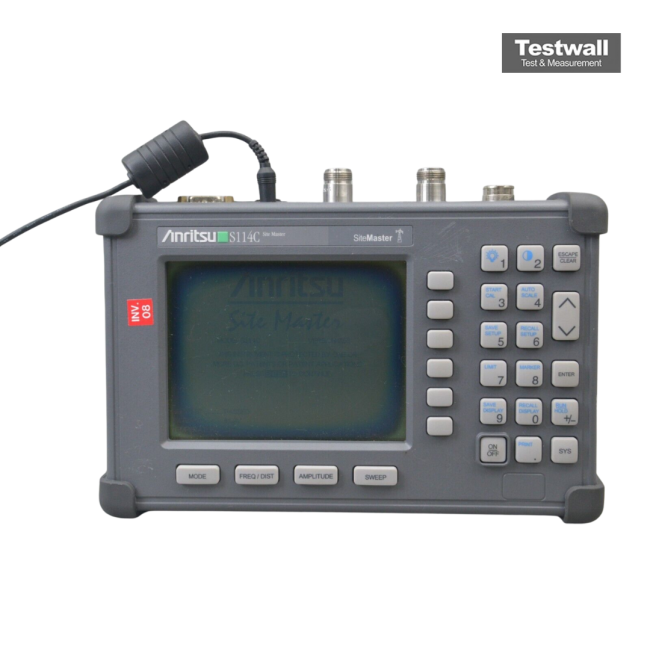

The Anritsu S114C is a handheld, battery-operated spectrum analyzer designed for field engineers. It supports spectrum analysis from 100 kHz to 1.6 GHz, return loss, VSWR, cable loss, and DTF measurements. With superior RF interference immunity, six markers, segmented limit lines, and storage for up to 200 traces, the S114C offers precision and versatility. Its 4.5 lbs lightweight design includes a multilingual interface and a rechargeable, field-replaceable battery for continuous operation.
Engineers can rely on the S114C for quick identification of coverage issues, interference, and path-related signal problems. Pop-up cable menus support over 70 cable types, while measurement traces can be easily saved, labeled, and time-stamped.
Testwall can supply the used Anritsu S114C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu S114C.
