Anritsu S331E
| Attribute | Value |
|---|---|
| Frequency Range | 2 MHz to 4 GHz |
| Measurement Modes | Cable & Antenna Analyzer (Return Loss, VSWR, Cable Loss, Distance-to-Fault) |
| Dynamic Range | Up to 65 dB |
| Distance-to-Fault Range | Up to 3,000 meters (depending on cable type) |
| Display | 7-inch sunlight-readable color LCD touchscreen |
| Battery Life | Approximately 4 hours with standard Li-Ion battery pack |
| RF Connector | Type-N (female), 50 ohm |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Data Storage | Internal memory plus USB and micro-SD card external storage support |
| Weight | Approximately 1.9 kg (4.2 lbs) including battery |
Anritsu S331E Options:
- S331E - 0021 - 2-Port Transmission Measurement
- S331E - 0010 - Bias-Tee (requires Option 0021 for S331E)
- S331E - 0031 - GPS Receiver (requires Antenna P/N 2000-1528-R)
- S331E - 0019 - High-Accuracy Power Meter (requires External Power Sensor)
- S331E - 0411 - Ethernet Connectivity
- S331E - 0098 - Standard Calibration (ANSI 2540-1-1994)
- S331E - 0099 - Premium Calibration to Z540 plus test data
| Model | S331E |
|---|

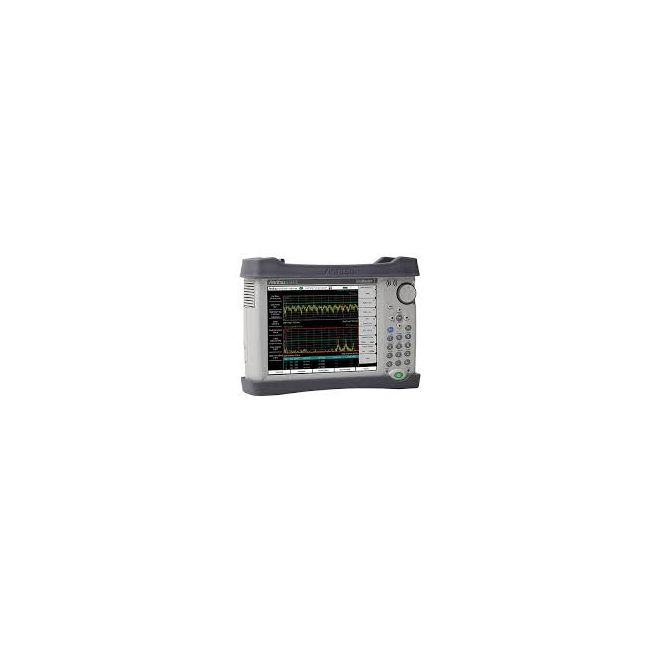

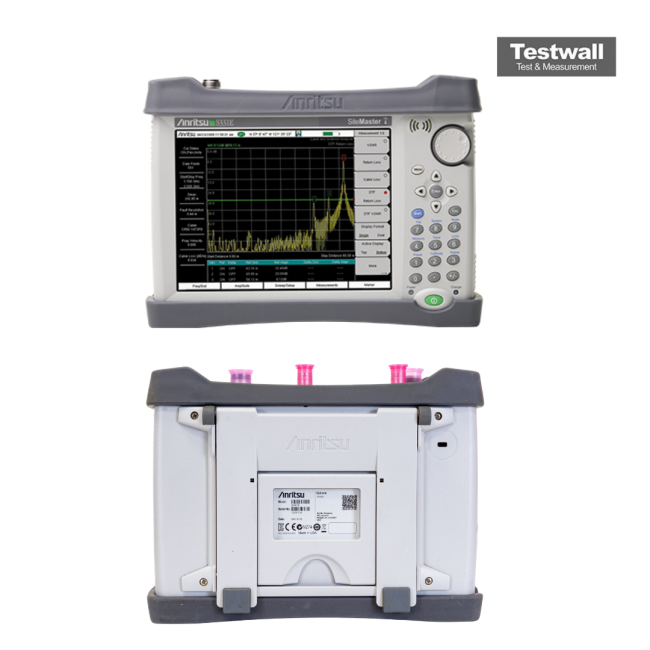

The Anritsu S331E Site Master Cable and Antenna Analyzer covers 2 MHz to 4 GHz, offering Return Loss, VSWR, Cable Loss, Distance-To-Fault, and Smith Chart measurements. It features a rugged, compact design with a daylight-viewable TFT display, intuitive touchscreen interface, USB connectivity, and a four-hour battery life. Calibration options include OSL, InstaCal, and FlexCal, ensuring accuracy greater than 42 dB corrected directivity.
This analyzer supports Smart Aligner Android applications for antenna alignment reporting, along with advanced trace overlay, limit lines, and cable/frequency standards. It is engineered for field use, offering reliable measurements even in co-located cell sites, enhancing productivity and preventive maintenance.
Testwall can supply the used Anritsu S331E Site Master Cable and Antenna Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu S331E Site Master Cable and Antenna Analyzer.
