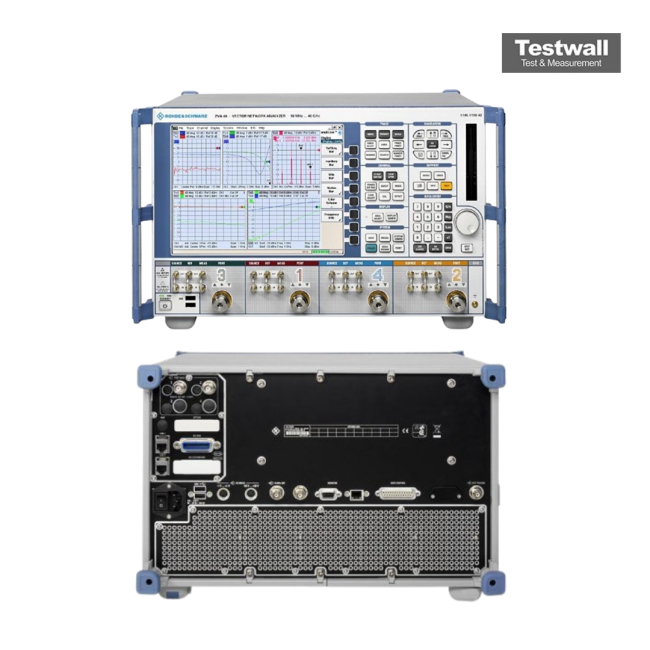

Rohde & Schwarz ZVA24
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 24 GHz |
| Number of Test Ports | 2 or 4 ports |
| Dynamic Range | Up to 130 dB |
| Output Power Range | -30 dBm to +10 dBm |
| Measurement Speed | Up to 1.8 ms per 201-point sweep (single port) |
| Trace Noise | 0.001 dB rms at 10 Hz IF bandwidth |
| Port Connector Type | 3.5 mm (f), 50 Ohm |
| IF Bandwidth | 1 Hz to 500 kHz |
| Number of Points per Sweep | Up to 60,001 points |
| Operating System | Windows XP Embedded |
| Model | ZVA24 |
|---|
The ROHDE & SCHWARZ ZVA24 Network Analyzer delivers high-end RF performance with a frequency range of 300 kHz to 24 GHz, wide dynamic range of >140 dB, and fast measurement speed <3.5 µs per test point. It supports true differential, noise figure, and pulse profile measurements with 12.5 ns resolution, high output power >15 dBm, and versatile calibration methods including TOSM, TRL/LRL, and more.
Ideal for applications involving amplifiers, mixers, filters, receivers, and transceivers, the ZVA24 offers maximum dynamic range and high accuracy in both linear and nonlinear measurements with flexible IF bandwidths of 1/5/30 MHz.
Testwall can supply the used ROHDE & SCHWARZ ZVA24, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the ROHDE & SCHWARZ ZVA24.
