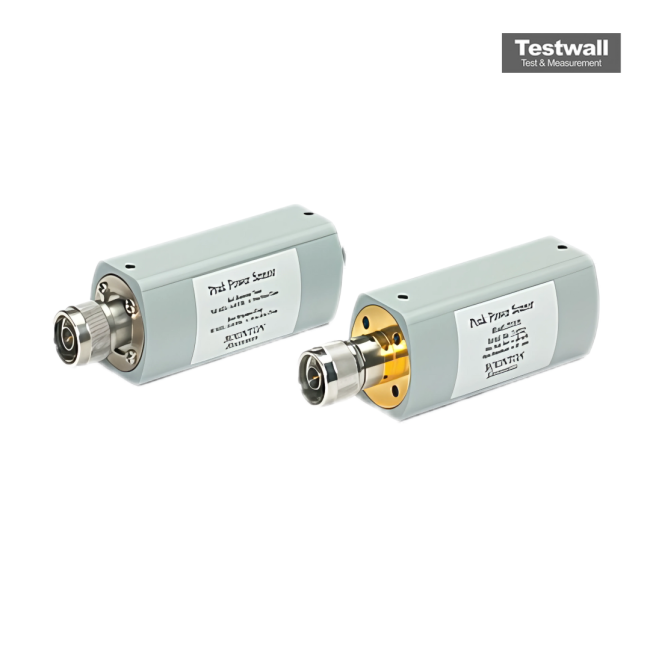

Boonton 51077
| Attribute | Value |
|---|---|
| Frequency Range | 100 MHz to 18 GHz |
| Dynamic Range | Up to 90 dB |
| Measurement Speed | Up to 100,000 readings per second |
| Connector Type | Type-N (Female) |
| Power Range | -70 dBm to +20 dBm |
| Sensor Type | Wideband CW Power Sensor |
| Interface | USB |
| VSWR | 1.15:1 typical |
| Operating Temperature | 0°C to +55°C |
| Power Supply | Bus Powered via USB |
| Model | 51077 |
|---|
The Boonton 51077 RF power sensor combines high precision and speed, measuring from 500 kHz to 18 GHz with a dynamic range of -60 dBm to +30 dBm, sub-0.3 dB uncertainty, 100 readings/sec update rate, and a rugged Type-N interface with thermal stabilization for consistent performance.
Engineered for laboratory and field applications, its compact footprint and USB 2.0 connectivity enable rapid integration into automated test systems, while intuitive software controls and calibration traceability ensure accurate level monitoring, power verification, and spectrum analysis across varying environmental conditions with minimal operator intervention.
Testwall supplies this used Boonton 51077 sensor fully tested to original factory specifications, complemented by dedicated technical consultancy, optional calibration services, and worldwide shipping, providing unmatched reliability and service quality; our streamlined procurement and support processes guarantee superior performance and customer satisfaction compared to alternative suppliers.
