Crystal Engineering XP2I-5000
| Attribute | Value |
|---|---|
| Pressure Range | 0 to 5000 psi |
| Accuracy | ±0.1% of full scale |
| Display | 4-digit LCD display |
| Units of Measure | psi, bar, mbar, kPa, MPa, inHg, mmHg, inH2O, cmH2O, kg/cm² |
| Battery Life | Up to 2000 hours with standard AA batteries |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Pressure Connection | 1/4 inch NPT male |
| Ingress Protection | IP67 rated (dust-tight and waterproof) |
| Data Logging | Built-in data logging with PC connectivity via USB |
| Certifications | NIST traceable calibration certificate included |
Crystal Engineering XP2I-5000 Options:
- XP2I-5000 - DD - Dual Display
- XP2I-5000 - S2 - 0.02% of Full Scale accuracy (15 to 25°C), 0.05% of Full Scale (-10 to 15°C, 25 to 50°C typical)
- XP2I-5000 - S5 - 0.05% of Full Scale accuracy (-10 to 50°C)
- XP2I-5000 - BSP - G 1/4 B BSP adapter fitting
- XP2I-5000 - M20 - M20x1.5 adapter fitting
- XP2I-5000 - RP - Back connection location
- XP2I-5000 - F4 - Panel mount connection
- XP2I-5000 - DL - DataLogging (32,000 data points, non-volatile flash memory)
- XP2I-5000 - AXX - System A pump system (0 to 30 psi/2 bar, pneumatic hand pump), aluminum case
- XP2I-5000 - AHX - System A pump system (0 to 580 psi/40 bar, pneumatic hand pump), aluminum case
- XP2I-5000 - BXX - System B pump system (-25 inHg to 30 psi, pneumatic hand pump), aluminum case
- XP2I-5000 - BHX - System B pump system (-27 inHg to 580 psi, pneumatic hand pump), aluminum case
- XP2I-5000 - CXX - System C pump system (0 to 3000 psi/200 bar, hydraulic oil hand pump), aluminum case
- XP2I-5000 - CHX - System C pump system (0 to 5000 psi/350 bar, hydraulic oil hand pump), aluminum case
- XP2I-5000 - DOX - System D pump system (0 to 5000 psi/350 bar, hydraulic oil bench top), aluminum case
- XP2I-5000 - DWX - System D pump system (0 to 5000 psi/350 bar, hydraulic water bench top), aluminum case
- XP2I-5000 - EOX - System E pump system (0 to 10,000 psi/700 bar, hydraulic oil bench top), aluminum case
- XP2I-5000 - FOV - System F pump system (0 to 15,000 psi/1000 bar, hydraulic oil bench top), aluminum case
- XP2I-5000 - FWV - System F pump system (0 to 15,000 psi/1000 bar, hydraulic water bench top), aluminum case
- XP2I-5000 - GOX - System G pump system (0 to 15,000 psi/1000 bar, hydraulic oil bench top), waterproof Pelican case
- XP2I-5000 - GWX - System G pump system (0 to 15,000 psi/1000 bar, hydraulic water bench top), waterproof Pelican case
- XP2I-5000 - HOX - System H pump system (-27 inHg to 580 psi pneumatic and 0 to 5000 psi/350 bar hydraulic oil), waterproof Pelican case
- XP2I-5000 - W - Waterproof carrying case (Pelican case, available for Systems A, B, C, G, and H)
| Model | XP2I-5000 |
|---|

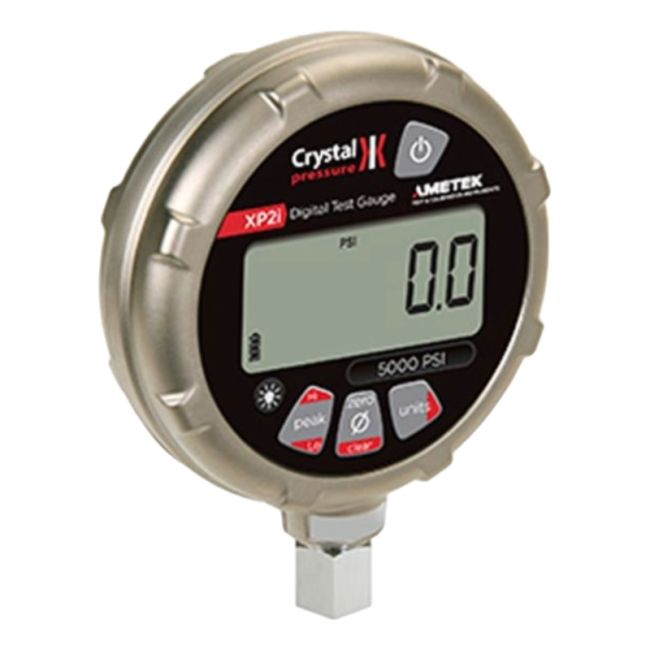

The Crystal Engineering XP2I-5000 Digital Pressure Gauge delivers 0.1% reading accuracy across a wide range, with an impressive 0 to 5000 psi capacity. It is ultra rugged, intrinsically safe, and engineered with a hard polycarbonate lens and elastomer-mounted circuitry for superior shock resistance. The device is fully temperature compensated, ensuring precise performance in challenging environments.
With its intuitive three-button interface, no-menu design, and ability to log 32,000 data points, the XP2I-5000 is simple to use while offering advanced capabilities. Its long battery life and ultra-low power mode allow for year-long logging without external power.
Testwall can supply the used Crystal Engineering XP2I-5000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Crystal Engineering XP2I-5000.
