InTest - Temptronic

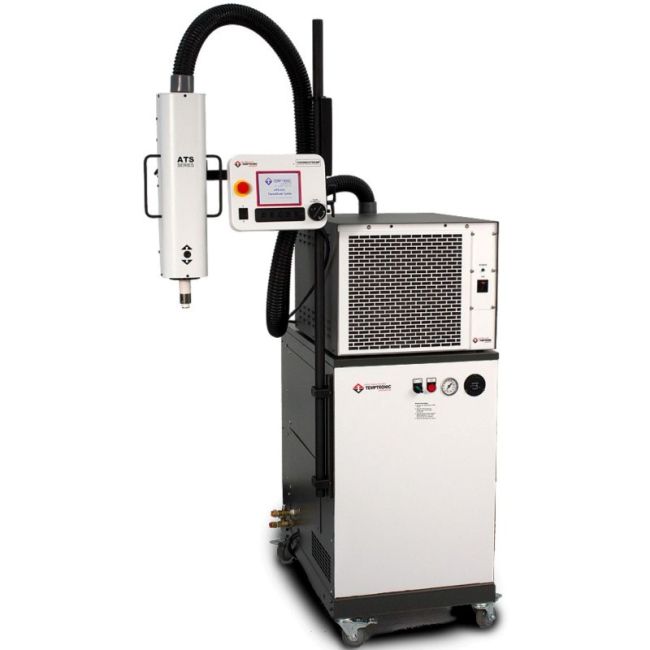

InTest - Temptronic ATS-635
Thermostream Thermal Inducing System, -60 to 225C
-65°C to +200°C Temperature Range
±0.1°C Temperature Stability
Liquid Nitrogen (LN2) or Carbon Dioxide (CO2) Cooling Technology
Up to 635 SCFH (standard cubic feet per hour) Airflow Rate
1800W maximum Heating Capacity
| Attribute | Value |
|---|---|
| Temperature Range | -65°C to +200°C |
| Temperature Stability | ±0.1°C |
| Cooling Technology | Liquid Nitrogen (LN2) or Carbon Dioxide (CO2) |
| Airflow Rate | Up to 635 SCFH (standard cubic feet per hour) |
| Heating Capacity | 1800W maximum |
| Temperature Transition Rate | Up to 50°C per minute |
| Control Interface | RS-232, GPIB (IEEE-488) |
| Nozzle Outlet Diameter | 1.5 inches (38mm) |
| Power Requirements | 100-240V AC, 50/60Hz, Single Phase |
| Operating Environment | 0°C to 40°C ambient, up to 90% relative humidity (non-condensing) |
| Model | ATS-635 |
|---|
The inTEST ATS-635 thermal system provides a wide temperature range with rapid ramping, ensuring reliable results across semiconductor and electronics testing. Its stable airflow and precision control make it ideal for demanding applications.
With user-friendly controls, the ATS-635 is widely used in R&D for device validation, balancing performance with ease of use in dynamic test environments.
Testwall can supply the used inTEST ATS-635, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the inTEST ATS-635.
