InTest - Temptronic ATS-505
| Attribute | Value |
|---|---|
| Temperature Range | -55°C to +225°C |
| Temperature Stability | ±0.1°C |
| Airflow Output | Up to 25 CFM (cubic feet per minute) |
| Heating Capacity | 1800W maximum heating output |
| Cooling Capacity | Liquid nitrogen (LN2) or liquid CO2 cooling |
| Temperature Transition Rate | Up to 45°C per minute (typical) |
| Control Interface | RS-232 and IEEE-488 (GPIB) interfaces for automated test integration |
| Thermostream Head Type | Benchtop ThermoStream air temperature forcing system |
| Power Requirements | 208/240 VAC, single phase, 50/60 Hz |
| Compliance & Standards | CE marked; designed for device-level thermal testing in accordance with industry ATE standards |
InTest - Temptronic ATS-505 Options:
- ATS-505 - Thermal Cap - 3.9 or 5.5 inch ID Thermal Cap
- ATS-505 - Benchmount Stand Assembly - Attaches the Thermal Wand Stand Assembly directly to a bench top. Can be mounted up to 30.5cm (12 inches) from controller chassis.
- ATS-505 - Pneumatic Wand Lift Assembly - Automates the raising and lowering of the Thermal Wand for the loading and unloading of the DUT.
- ATS-505 - Thermal Stand Assembly - Expanding, locking, stand assembly for added stability and hands-free operation of the Thermal Wand. Rotates 340° around the controller cabinet for positioning the wand directly over the DUT.
| Model | ATS-505 |
|---|

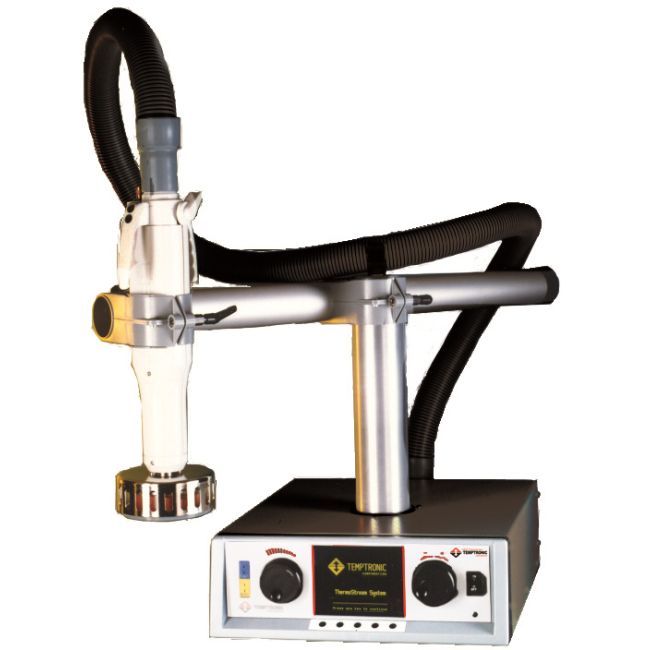

The inTEST ATS-505 is a compact and portable thermal forcing system designed for precision temperature control of electronic devices. It delivers controlled streams of hot or cold air directly to the device under test, ensuring rapid heating and cooling transitions. With accurate performance across small components, it is highly effective in semiconductor testing, electronics validation, and R&D workflows where repeatable thermal cycling is essential.
Engineered for flexibility, the ATS-505 supports quick setup and seamless integration into laboratory environments. Its efficient design allows users to achieve stable temperature conditions while optimizing testing throughput and reliability.
Testwall can supply the used inTEST ATS-505, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the inTEST ATS-505.
