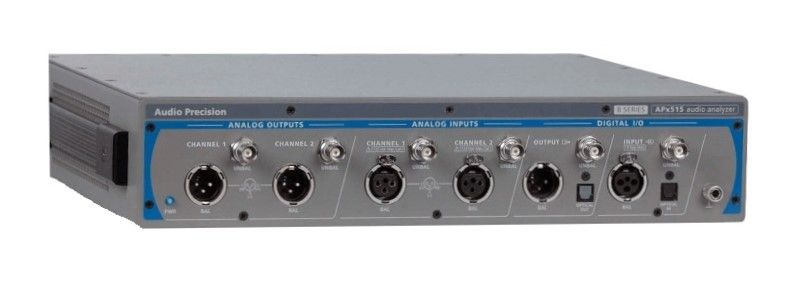

Audio Precision APX515B
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 10 Hz – 100 kHz |
| Distorsión armónica total + ruido (THD+N) | -114 dB (0,0002%) |
| Rango dinámico | 130 dB |
| Nivel máximo de entrada | 26 dBV (balanceado) |
| Nivel máximo de salida del generador | 26 dBV (balanceado) |
| Número de canales de entrada | 2 canales analógicos de entrada |
| Número de canales de salida | 2 canales analógicos de salida |
| Interfaz de comunicación | USB 2.0 |
| Compatibilidad de software | APx500 (incluido) |
| Dimensiones del equipo | Formato de sobremesa (unidad de escritorio compacta) |
Audio Precision APX515B Options:
- APX515B - APX-SW-ACR - Acoustic Response: Acoustic Response for non-anechoic environments
- APX515B - APX-SW-AML - Advanced Measurement Library: Bandpass Level, Bandpass Frequency Sweep, Bandpass Level Sweep, Crosstalk Sweep (custom), Crosstalk Sweep (1 channel driven), Crosstalk Sweep (1 channel undriven), Digital Error Rate, IMD (DFD/MOD/SMPTE/CCIF), IMD Frequency Sweep, IMD Level Sweep, Maximum Output, Maximum Output (CEA-2006), Metadata Recorder, Noise Recorder, Regulated Frequency Sweep, Signal Analyzer, FFT spectrum monitor
- APX515B - APX-SW-ASIO - ASIO Output and Input: Provides ability to connect directly to an ASIO device on a PC
- APX515B - APX-SW-HST - High Speed Test: Continuous Sweep (a brief log-swept sine wave that moves continuously across a specified range of frequencies), Multitone Analyzer (a very fast stimulus signal that provides a broad range of results)
- APX515B - APX-SW-BEN - Bench Mode for APx515: Adds a real-time UI mode to APx515
- APX515B - APX-SWB-2 - APx515 Software Bundle: Combines ACR, AML, ASIO, and HST software options in a single bundle
- APX515B - APX-SWB-6 - APx515 Software Bundle: Combines ACR, AML, ASIO, HST, and BEN software options in a single bundle
- APX515B - APX-SW-SPK-PT - Loudspeaker Test: Production: Combines an acoustic measurement (Frequency Response, Phase, Distortion and Rub & Buzz) and an electromechanical impedance measurement (Impedance Response Curves plus a subset of Thiele-Small); also includes Acoustic Response and Modulated Noise
- APX515B - APX-SW-SPK-RD - Loudspeaker Test: R&D: Acoustic Response (with Rub & Buzz), Impedance / Thiele-Small, Modulated Noise; includes all measurements in APX-SW-SPK-PT plus the APx Polar Plot and APx Waterfall Graph utilities
- APX515B - APX-SW-STI - Speech Transmission Index: Plug-in for conducting Speech Transmission Index (STI) measurements using the STIPA method
- APX515B - APX-SW-PESQ - PESQ: Widely-used, enhanced perceptual measurement for voice quality on low-bandwidth devices
- APX515B - APX-SW-POLQA2 - POLQA: Successor to PESQ with support for HD Voice, 3G, 4G/LTE and VoIP technologies (2 channels)
- APX515B - APX-SW-ABC-MRT - ABC-MRT: Provides an objective measure of speech intelligibility following the paradigm of the Modified Speech Ryme Test
- APX515B - SW-MAINT-1/3/5 - Software Maintenance: Provides 1, 3, or 5 years of software maintenance for an existing APx Legacy or B Series audio analyzer
- APX515B - SW-EXT-3/5 - Software Maintenance: Provides 2 or 4 additional years of software maintenance with the purchase of a new APx B Series analyzer
- APX515B - SW-UPG-APX5 - Software Upgrade: Software upgrade to APx Version 5 for Legacy APx analyzers
| Model | APX515B |
|---|
AUDIO PRECISION APX515B Audio Analyzer
The Audio Precision APx515B Series is a high-performance audio analyzer optimized for production test. It is a best-in-class instrument for its combination of speed, performance, automation and ease-of-use. The Audio Precision APx515B can make all of the key audio measurements in less than three seconds. Despite its low cost, APx515 still has excellent performance, with a typical THD+N of €“106 dB, 1.2M point FFTs and up to 216k digital I/O, as well as the one-click automation and ease-of-use of all APx Series audio analyzers.
The B series APx515 operates either as a stand-alone test unit with its own user interface, or it can be controlled by a master .NET or LabVIEW application. In either case, an operator can control the APx515 with a keyboard, foot switch or barcode scanner, or the system can be totally automated. Switchers and external devices such as pass/fail lights are also supported. In stand-alone mode, sophisticated test sequences are created by selecting from a list of common audio measurements €”no coding required. On an automated manufacturing line, a master .NET or LabVIEW application can control the APx515 directly using the API or APx LabVIEW driver. Individual measurements can be made or the master application can call a test sequence created with the APx user interface.
Specifications for the AUDIO PRECISION APX515B Audio Analyzer Include:
| Sine Frequency Range | 2.0 Hz to 80.1 kHz |
| Flatness (5 Hz - 20 kHz) | ±0.010 dB |
| Digital Output Sampling Rate | 27 kS/s - 200 kS/s |
| Residual Input Noise (20 kHz BW) | 1.4 µV |
