Audio Precision

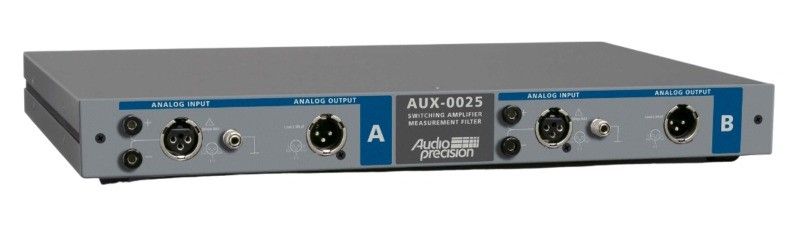

Audio Precision AUX-0025
Two Channel Switching Amplifier Measurement Filter
XLR balanceado Tipo de conector
200 kΩ Impedancia de entrada
10 Hz - 100 kHz Rango de frecuencia
+26 dBu Nivel máximo de entrada
> 110 dB Relación señal-ruido
| Atributo | Valor |
|---|---|
| Tipo de conector | XLR balanceado |
| Impedancia de entrada | 200 kΩ |
| Rango de frecuencia | 10 Hz - 100 kHz |
| Nivel máximo de entrada | +26 dBu |
| Relación señal-ruido | > 110 dB |
| Distorsión armónica total (THD) | < 0,0005% |
| Tensión de alimentación | ±15 V CC |
| Compatibilidad | APx500, 2700 Series, SYS-2700 |
| Dimensiones | 483 mm x 44 mm x 300 mm |
| Peso | 2,3 kg |
Audio Precision AUX-0025 Options:
- AUX-0025 - RAK-212 - Rack-mount shelf for AUX-0025 and AUX-0040
- AUX-0025 - RAK-100 - Rack-mount shelf for AUX-0100
| Model | AUX-0025 |
|---|
The Audio Precision AUX-0025 Two Channel Low Pass Filter is a passive switching amplifier. Measurement filters are designed to be inserted between the device under test and an analyzer input, to reduce out-of-band switching signal components before measurement.
The AUX-0025 is used for mMeasurement of switching amplifiers, and measurement of analog signals with high amounts of out-of-band noise.
Highlights of the Audio Precision AUX-0025 include:
- Two channel, 20 Hz to 20 kHz passband
- Passive design for optimal performance
- Custom inductors designed for power handling and minimizing low-frequency distortion
- Flat response
- Small insertion loss
- Compatible with both balanced and unbalanced amplifiers and analyzers
