Audio Precision

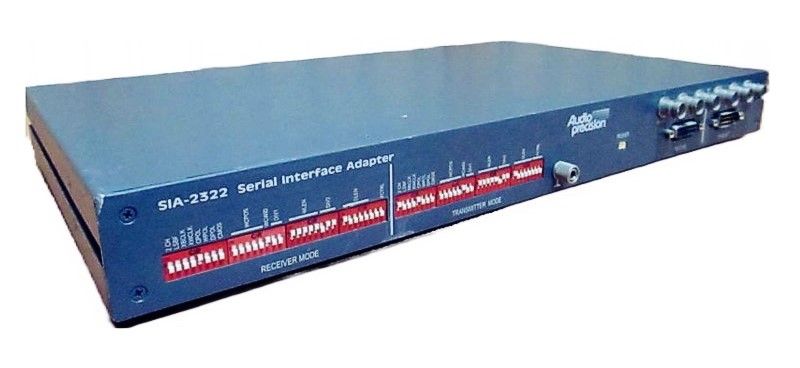

Audio Precision SIA-2322
Interface Adapter
10 Hz – 22 kHz Rango de frecuencia
Hasta 120 dB Rango dinámico
Menos de 0,0005% Distorsión armónica total (THD+N)
2 canales (estéreo) Número de canales
100 kΩ (balanceada) Impedancia de entrada
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 10 Hz – 22 kHz |
| Rango dinámico | Hasta 120 dB |
| Distorsión armónica total (THD+N) | Menos de 0,0005% |
| Número de canales | 2 canales (estéreo) |
| Impedancia de entrada | 100 kΩ (balanceada) |
| Impedancia de salida | 50 Ω (balanceada) |
| Nivel máximo de entrada | +26 dBu |
| Nivel máximo de salida | +24 dBu |
| Interfaz de comunicación | USB e interfaz GPIB/IEEE-488 |
| Alimentación eléctrica | 100–240 V CA, 50/60 Hz |
| Model | SIA-2322 |
|---|
RENT AUDIO PRECISION SIA-2322 Adapter (call for availability)
The Audio Precision SIA-2322 Serial Interface Adapter provides a means of interfacing the digital domain members of the System Two family of audio analyzers to a variety of data acquisition, reconstruction and communication hardware that utilize a serial bus for the exchange of data..
Features and Specifications of the AP SIA-2322 Adapter include:
- Serial word length support of 8 to 32 bits, one or two channels (time multiplexed);
- Analyzer data word length support of 8 to 24 bits, with optional 0 or 1 padding, LSB or MSB extension;
- Left- or right-justified data within the serial data frame;
- Data transmission and reception independently selectable as LSB- or MSB-first;
- Independently selectable word clock transition timing within the data frame, with bit-wide and word-wide clock widths;
- Independently selectable bit and word clock sources (internal or external);
- TTL and CMOS logic level support on all inputs and outputs;
- Logic polarity control of data, word clocks and bit clocks.
