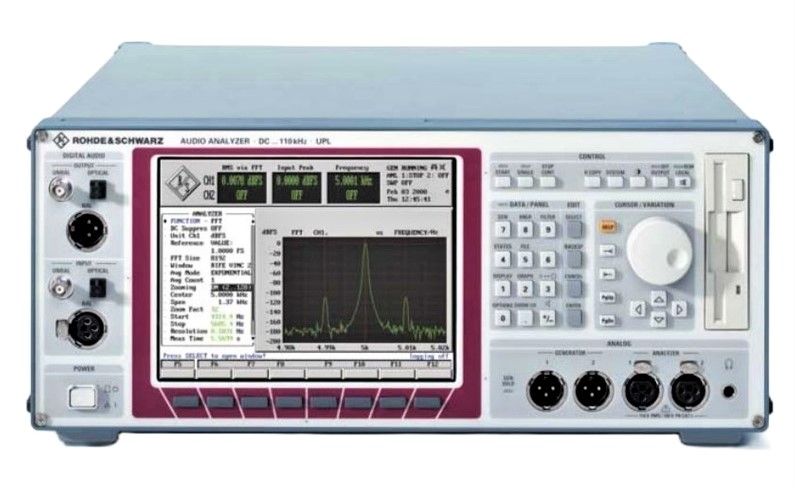

Rohde & Schwarz UPL16
| Atributo | Valor |
|---|---|
| Rango de frecuencia | DC a 110 kHz |
| Rango de nivel de entrada | 0,1 mV a 200 V (valor RMS) |
| Resolución de nivel | 0,001 dB |
| Distorsión armónica total (THD+N) | -114 dB (típico) |
| Relación señal-ruido (SNR) | Hasta 120 dB |
| Número de canales de medición | 2 canales analógicos de entrada |
| Impedancia de entrada | 200 kΩ / 20 pF (modo de alta impedancia) |
| Interfaz de comunicación | IEC/IEEE 625 (GPIB), RS-232 |
| Generador de señal integrado | Sí, generador de audio de dos canales con frecuencia ajustable |
| Alimentación eléctrica | 100 V a 240 V CA, 50/60 Hz |
Rohde & Schwarz UPL16 Options:
- UPL16 - UPL-B1 - Low Distortion Generator
- UPL16 - UPL-B2 - Digital Audio I/O 48 kHz
- UPL16 - UPL-B29 - Digital Audio I/O 96 kHz
- UPL16 - UPL-B21 - Digital Audio Protocol
- UPL16 - UPL-B22 - Jitter and Interface Test
- UPL16 - UPL-B23 - Coded Audio Signal Generation
- UPL16 - UPL-B4 - Remote Control
- UPL16 - UPL-B5 - Audio Monitor
- UPL16 - UPL-B6 - Extended Analysis Functions
- UPL16 - UPL-B7 - Hearing Aids Test Accessories
- UPL16 - UPL-B8 - Mobile Phone Test Set
- UPL16 - UPL-B9 - 3G Mobile Phone Tests
- UPL16 - UPL-B10 - Universal Sequence Controller
- UPL16 - UPL-B11 - LAN Interface for R&S UPL06/66
- UPL16 - UPL-B33 - Line Measurement to ITU-T O.33
- UPL16 - UPL-Z1 - XLR/BNC Adapter Set
- UPL16 - UPL-U3 - 150 Ω Modification
| Model | UPL16 |
|---|
Rohde & Schwarz UPL16 Audio Analyzer, DC to 110 kHz
The R&S UPL16 Audio Analyzer provides all the necessary audio signals and performs acoustical measurements GSM Mobile phone audio testing. The CMD80 or CMU200 Digital radio Communication Tester is used to establish the call. For some test cases the speech codec is also used.
The R&S UPL16 Audio Analyzer has the same superior analysis concept as all members of the R&S UPL family. The instrument is able to handle both analog and digital processing. It carries out practically all types of measurement in the audio range from frequency response measurements to distortion measurements, FFT analysis, etc.
All the details about test functions and concept of operation can be found in the data sheet of the Audio Analyzer R&S UPL. The R&S UPL16 is especially designed for acoustical tests on GSM mobiles. It is equipped with the digital audio interface (DAI) as defined in GSM phase 2 recommendation 11.10, section 36.4. Thanks to this interface the R&S UPL16 can act as a system simulator or simulate a mobile.
To drive an artificial head directly without additional amplifiers, the generator output of the R&S UPL16 is matched to the impedance of the artificial mouth by a built-in transformer on the rear panel of the R&S UPL16. GSM 11.10, section 30 defines 15 speech teleservices tests for GSM mobiles, generally referred to as acoustical test cases.
