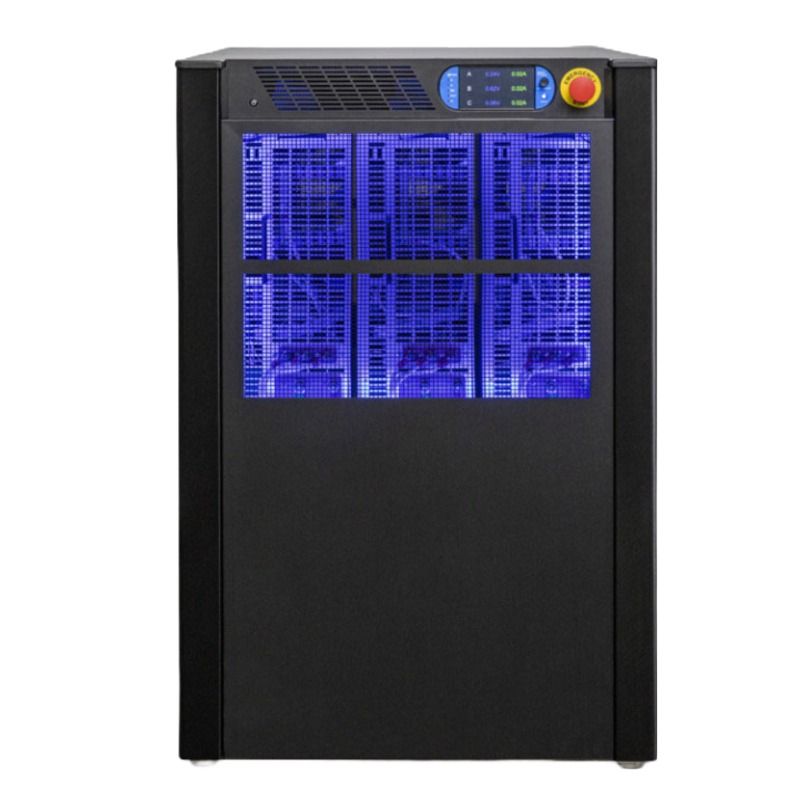

California Instruments SQ0022
| Atributo | Valor |
|---|---|
| Potencia de salida | 22,5 kVA |
| Tensión de salida | 0 - 300 V AC |
| Frecuencia de salida | 45 - 500 Hz |
| Número de fases | Monofásico / Trifásico |
| Corriente de salida máxima | 75 A por fase |
| Tensión de entrada | 208 V AC trifásico |
| Distorsión armónica total (THD) | Menos del 0,5% |
| Interfaz de programación | GPIB / RS-232 |
| Dimensiones (An x Al x Pr) | 483 x 222 x 711 mm |
| Peso | Aproximadamente 91 kg |
California Instruments SQ0022 Options:
- SQ0022 - G - Configuration: Grid Simulator
- SQ0022 - L - Configuration: eLoad
- SQ0022 - C - Configuration: Grid Simulator + eLoad
- SQ0022 - C - Input: 208V L-L
- SQ0022 - D - Input: 400V L-L
- SQ0022 - E - Input: 480V L-L
- SQ0022 - F - Input: 230V L-L
- SQ0022 - G - Input: 380V L-L
- SQ0022 - 1 - Number of Chassis: 1
- SQ0022 - 0 - Optional Output AC VRange: None
- SQ0022 - 2 - Optional Output AC VRange: XVC440
- SQ0022 - 0 - Frequency Options: Standard
- SQ0022 - HF - Frequency Options: Increases the maximum output frequency range to 905Hz
- SQ0022 - HF-FC - Frequency Options: Adds HF option and changes the frequency accuracy to ±0.25% of program frequency
- SQ0022 - 0 - Interface Options: Standard
- SQ0022 - GPIB - Interface Options: GPIB Interface
- SQ0022 - 0 - Clock/Lock Options: None
- SQ0022 - LKM - Clock/Lock Options: Clock and Lock, Leader
- SQ0022 - LKS - Clock/Lock Options: Clock and Lock, Follower
- SQ0022 - 0 - Regulatory Test Options: None
- SQ0022 - IEC - Regulatory Test Options: IEC
- SQ0022 - LNS - Regulatory Test Options: LNS, Line Sync
- SQ0022 - IEC+LNS - Regulatory Test Options: IEC + LNS
- SQ0022 - 0 - Power Quality Test Options: None
- SQ0022 - AVSTD - Power Quality Test Options: Includes RTCA/DO160 E/F/G, MIL-STD 704 A/B/C/D/E/F, Airbus ADB100.1.8 D/E, Airbus ADB100.1.8.1 B/C
- SQ0022 - AVALL - Power Quality Test Options: Includes RTCA/DO160 E/F/G, MIL-STD 704 A/B/C/D/E/F, Airbus ADB100.1.8 D/E, Airbus ADB100.1.8.1 B/C, B787B3-0147, AMD24C
- SQ0022 - MIL1399 - Power Quality Test Options: MIL-STD 1399-300B Shipboard Power Test
- SQ0022 - MIL1399+AVSTD - Power Quality Test Options: MIL-STD 1399-300B + AVSTD
- SQ0022 - MIL1399+AVALL - Power Quality Test Options: MIL-STD 1399-300B + AVALL
| Model | SQ0022 |
|---|
California Instruments SQ0022 Programmable Regenerative Grid Simulator
The California Instruments SQ0022 Programmable Regenerative Grid Simulator combines intelligence and flexibility with high power to create an advanced platform of AC solutions. Using a state-ofthe-art SiC power switching architecture, this full four-quadrant product combines compactness, robustness, and functionality in a floor-standing chassis. With the add-on electronic load option, the California Instruments SQ0022 can support additional advanced renewable energy simulation and test requirements. It can be operated completely from its menu driven front panel controller. The full color-touch display shows menus, setup data, and read-back measurements. With standard RS232C, USB, and LAN, along with optional IEEE-488 remote control interfaces, allow programming of all instrument functions from an external computer. The popular SCPI command protocol is used for programming.
With flexibility offered by the California Instruments SQ0022, it is now possible that a single solution can support a wide variety of roles within your test setup, including AC/DC Programmable Power source, AC/DC Grid Simulator, or AC/DC Resistive or Complex Electronic load. The Sequoia can uniquely act as an ideal grid, regenerating cur from PV Inverters, Wind Turbines etc., with nearly complete power recovery. With seamless switchover between source and sink mode or its ability to program parallel RLC, the Sequoia can emulate the test conditions mandated by international standards like IEC 61727 and IEC 62116. The California Instruments SQ0022 grid simulator mode can help simulate various grid conditions from strong grid to weak grid, its electronic load mode can help emulate an EV's On-Board battery charger load. With 85% of power recovery efficiency, it not only helps by saving electricity, but also minimizing heat emissions inside the lab.
Specifications for the California Instruments SQ0022 Programmable Regenerative Grid Simulator Include:
| AC Voltage (Low/High) | 0-166 V/0-333 V |
| AC Cur Per Phase (Low/High) | 62.5 A/31.2 A |
| Total Power | 22.5kVA Single or Three Phase |
| Frequency Range | 16-550Hz (up to 905Hz HF option) |
