Yokogawa

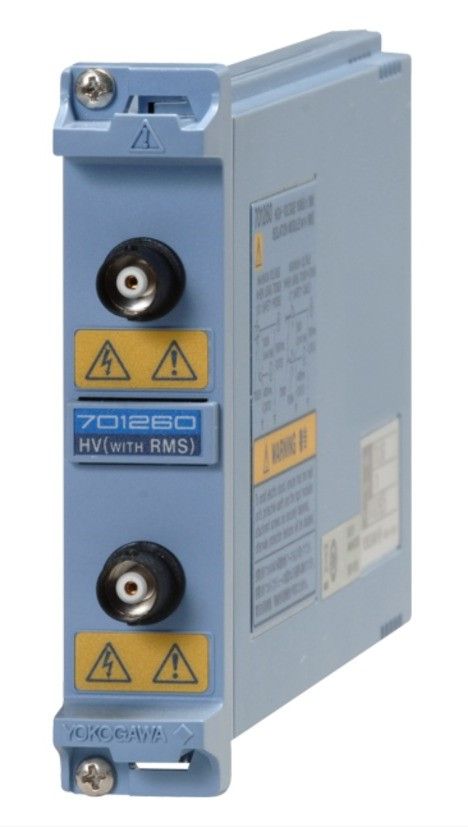

Yokogawa 701260
Input Module, High-voltage, 100 KS/s, 16-bit isolation with RMS (2 channels)
16 canales Número de canales
500 MHz Ancho de banda
2,5 GS/s (tiempo real) Frecuencia de muestreo
hasta 6,25 Mwords por canal Longitud de registro
12 bits Resolución vertical
| Atributo | Valor |
|---|---|
| Número de canales | 16 canales |
| Ancho de banda | 500 MHz |
| Frecuencia de muestreo | 2,5 GS/s (tiempo real) |
| Longitud de registro | hasta 6,25 Mwords por canal |
| Resolución vertical | 12 bits |
| Pantalla | Pantalla TFT LCD de 12,1 pulgadas a color |
| Rango de voltaje de entrada | 0,5 mV/div a 10 V/div |
| Impedancia de entrada | 1 MΩ / 50 Ω seleccionable |
| Interfaz de comunicación | USB, Ethernet (LAN), GP-IB (opcional) |
| Alimentación eléctrica | 100 a 240 V CA, 50/60 Hz |
Yokogawa 701260 Options:
- DL750 - /M1 - Memory expansion to 10 MW/CH
- DL750 - /M2 - Memory expansion to 25 MW/CH
- DL750 - /M3 - Memory expansion to 50 MW/CH
- DL750 - /C8 - Internal 30 GB hard drive (FAT32)
- DL750 - /C10 - Ethernet interface
- DL750 - /G2 - User-defined math function
- DL750 - /G3 - DSP channel function
- DL750 - /P4 - Probe power (4-output)
- DL750 - /DC - DC12 V power (DC10-18 V) (DL750 only)
- 701260 - 700929 - Isolated probe, 1000 Vrms-CATII for 701260 (10:1)
- 701260 - 701901 - 1:1 BNC safety adapter lead, 1000 Vrms-CATII for 701260
- 701260 - 701959 - Safety mini clip (hook type), 1000 Vrms-CATII, 1 set each of red and black
- 701260 - 701954 - Large Alligator clip (dolphin type), 1000 Vrms-CATII, 1 set each of red and black
- 701260 - 758929 - Alligator adapter (rated volt.: 1000 V), 1000 Vrms-CATII, 1 set each of red and black
- 701260 - 758922 - Alligator adapter (rated volt.: 300 V), 300 Vrms-CATII, 1 set each of red and black
- 701260 - 758921 - Fork terminal adapter, 1000 Vrms-CATII, 1 set each of red and black
- 701260 - 701940 - Passive probe for DL750/750P, Non-isolated 600 Vpk (10:1)
- 701260 - 366926 - 1:1 BNC-alligator cable, Non-isolated 42 V or less, for 701250, -51, -55, 1 m
- 701260 - 366961 - 1:1 Banana-alligator cable, Non-isolated 42 V or less, for 701261, -62, -65, 1.2 m
- 701260 - 701933 - Current probe, 30 Arms, DC to 50 MHz, supports probe power
- 701260 - 701930 - Current probe, 150 Arms, DC to 10 MHz, supports probe power
- 701260 - 701931 - Current probe, 500 Arms, DC to 2 MHz, supports probe power
- 701260 - 701934 - Probe power, large current output, external probe power supply (4 outputs)
- 701260 - 700924 - Differential probe, 1400V pk, 1000 Vrms-CAT II
- 701260 - 700986 - High-speed logic probe, 8-bit, non-isolated, response speed: 1µs
- 701260 - 700987 - Isolated logic probe, 8-bit, each channel isolated, response speed: 20 ms (for AC)
- 701260 - 758917 - Isolated logic measurement leads (2 per set)
- 701260 - 366928 - Conversion adaptor, BNC (jack)-RCA (plug) conversion
- 701260 - 701902 - Safety BNC cable (1 meter), 1000 Vrms-CATII (BNC-BNC)
- 701260 - 701903 - Safety BNC cable (2 meters), 1000 Vrms-CATII (BNC-BNC)
- 701260 - 758924 - Safety BNC-banana adapter, 500 Vrms-CATII, for 701250, -51, -55, -60
- 701260 - 701963 - Soft carrying case for DL750, with 3 storage pockets
- 701260 - 701967 - Soft carrying case for DL750P, with 3 storage pockets
- 701260 - B9988AE - Printer roll paper, DL750, A6 size (120 mm wide x 10m), include 10 rolls
- 701260 - 701966 - Printer roll paper, DL750P, A4 size (210 mm wide x 20m), include 6 rolls
- 701260 - 701951 - Earphone Mic (w/ PUSH switch), for the voice memo function
| Model | 701260 |
|---|
YOKOGAWA 701260
The Yokogawa 701260 Input Module, offers high speed and 12-bit isolation. Specifications of the Yokogawa 701260 module include:
- Input channels 2
- Input couplings AC, DC, GND, AC-RMS, DC-RMS
- Maximum sampling rate 100 kS/s
- A/D conversion resolution 16 bits (2400 LSB/div)
- Input type Isolated unbalanced
- Frequency range( €“3 dB)
- Waveform measurement mode
- DC, up to 40 kHz
- RMS measurement mode
- DC, 40 Hz to 10 kHz
- Input range
- (10:1) 200 mV/div to 2000 V/div (in steps of 1, 2, or 5)
- (1:1) 20 mV/div to 200 V/div (in steps of 1, 2, or 5)
- Effective measurement range 20 div (display range 10 div)
- DC offset ±5 div
- Maximum input voltage (1 kHz or less)
- In combination with 700929(10:1)
- 1000 V (DC + ACpeak)
- In combination with 701901+701954 (1:1)
- H side: 700 Vrms (CAT II) 7 , L side: 400 Vrms (CAT II)
- Maximum allowable in-phase voltage
- In combination with 700929 (10:1)
- H side: 1000 Vrms (CAT II) 4 , L side: 400 Vrms (CAT II)
- Direct input (when using a cable which doesn't comply with the safety standard)
- H/L sides: 30 Vrms (42 V DC + ACpeak)
- DC accuracy (waveform measurement mode)
- ±(0.25% of 10 div)
- DC accuracy (RMS measurement mode)
- ±(1.0% of 10 div)
- AC accuracy (RMS measurement mode)
- Sine wave input ±(1.5% of 10 div)
- Crest factor of 2 or less ±(2.0% of 10 div)
- Crest factor of 3 or less ±(3.0% of 10 div)
- Input impedance 1 M? ± 1%, approx. 35 pF
- Connector type Isolation type BNC connector
- Input filter OFF, 100 Hz, 1 kHz, 10 kHz
- Temperature coefficient
- Zero point ±(0.02% of 10 div)/ °C (typical value)
- Gain ±(0.02% of 10 div)/ °C (typical value)
