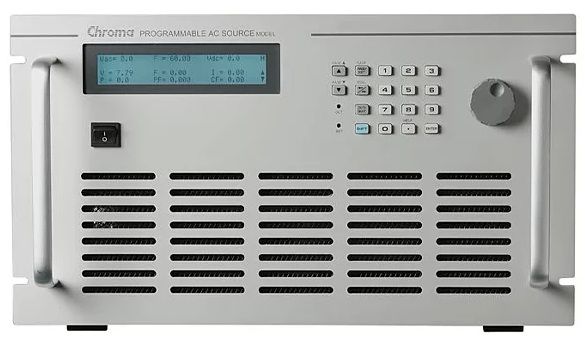

Chroma 61505
| Atributo | Valor |
|---|---|
| Potencia máxima de salida | 500 VA |
| Rango de voltaje de salida | 0 ~ 300 V CA |
| Rango de frecuencia de salida | 45 Hz ~ 500 Hz |
| Corriente máxima de salida | 4,2 A (rango de 0 ~ 150 V) / 2,1 A (rango de 0 ~ 300 V) |
| Distorsión armónica total (THD) | ≤ 0,5% (carga lineal) |
| Estabilidad de voltaje | ≤ 0,1% + 0,1 V |
| Interfaz de comunicación | GPIB / RS-232 |
| Resolución de voltaje de salida | 0,1 V |
| Resolución de frecuencia de salida | 0,1 Hz |
| Dimensiones (An x Al x Pr) | 213 mm x 88 mm x 498 mm |
Chroma 61505 Options:
- 61505 - A615001 - Remote Interface Board for Model 61500/61600 Series (External V Input, RS-232 Interface, GPIB Interface)
- 61505 - A610004 - Universal Socket Center for Model 6512/6520/6530/6560/6415/6420/6430/61500/61600 Series
- 61505 - A615007 - Softpanel for Model 61500/61600 Series
- 61505 - A615008 - DC Noise Filter for Model 61500/61600 Series
- 61505 - A600009 - GPIB Cable (200cm)
- 61505 - A600010 - GPIB Cable (60cm)
| Model | 61505 |
|---|
The AC+DC modes extend the applications beyond pure AC voltage to include DC components, making it ideal for laboratory testing of DC offset. The Chroma 61505 AC power sources provide maximum flexibility—from R&D design verification and quality assurance to production testing.
With versatile programmable voltage functions and user-friendly operation software, the 61505 AC source allows users to perform pre-compliance tests against IEC 61000-4-11 and compliance tests against IEC 61000-4-13, -4-14, and -4-28 immunity test regulations. Thanks to its low impedance and low voltage harmonic characteristics, model 61505 can serve as a standard source for 230V/16A IEC 61000-3-2 testing.
The Chroma 61505 has a built-in 16-bit measurement circuit and firmware utilities to measure both steady and transient responses of:
- True RMS voltage
- Current
- True power
- Apparent power (VA)
- Reactive power (VAR)
- Power factor
- Current crest factor
- Peak repetitive current
- Inrush current
