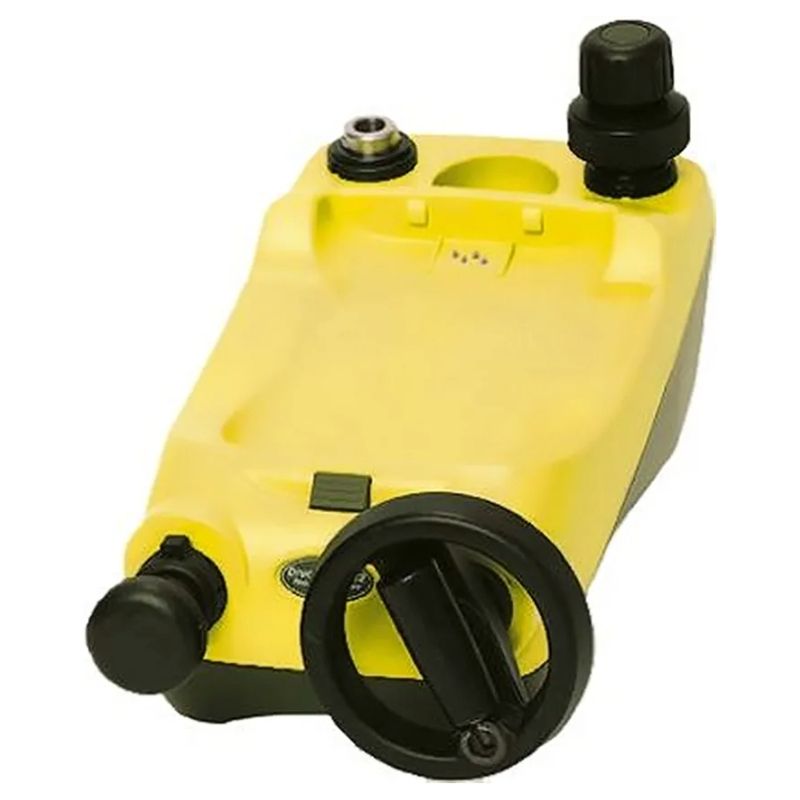

Druck PV622 1500 PSI Pneumatic Station
Druck PV622 1500 PSI Pneumatic Station is a high performance pressure-generating station which can generate pressure quickly and efficiently, without the need for system priming. This station is ATEX approved for stand-alone use in hazardous areas and designed for easy transportation and use in various settings. When combined with a reference instrument, such as the DPI104, Druck PV622 1500 PSI Pneumatic Station can be used as gauge comparator and pressure calibrator.
Druck PV622 1500 PSI Pneumatic Station have been designed for use with the DPI620 advanced multifunction calibrator and PM620 interchangeable pressure modules to provide a multi-parameter calibration system with unique pressure generation and measurement capabilities. Druck PV622 1500 PSI Pneumatic Station represents a five-fold increase in capability and solves the transportation and health and safety issues of using gas bottles and regulators as a pressure source in field locations. It features an innovative dual stage system incorporating a hand pump to generate pressure and a screw press to intensify the pressure.
Specifications for the Druck PV622 1500 PSI Pneumatic Station Include:
| Maximum pressure | 100 bar (1500 psi) pneumatic |
| Pressure media | Non-corrosive gases |
| Operating temperature | -10 ° to 50 °C (14 ° to 122 °F) |
| Shock and vibration | BS EN 61010:2001; Def stan 66-31, 8.4 cat III |
