Exfo

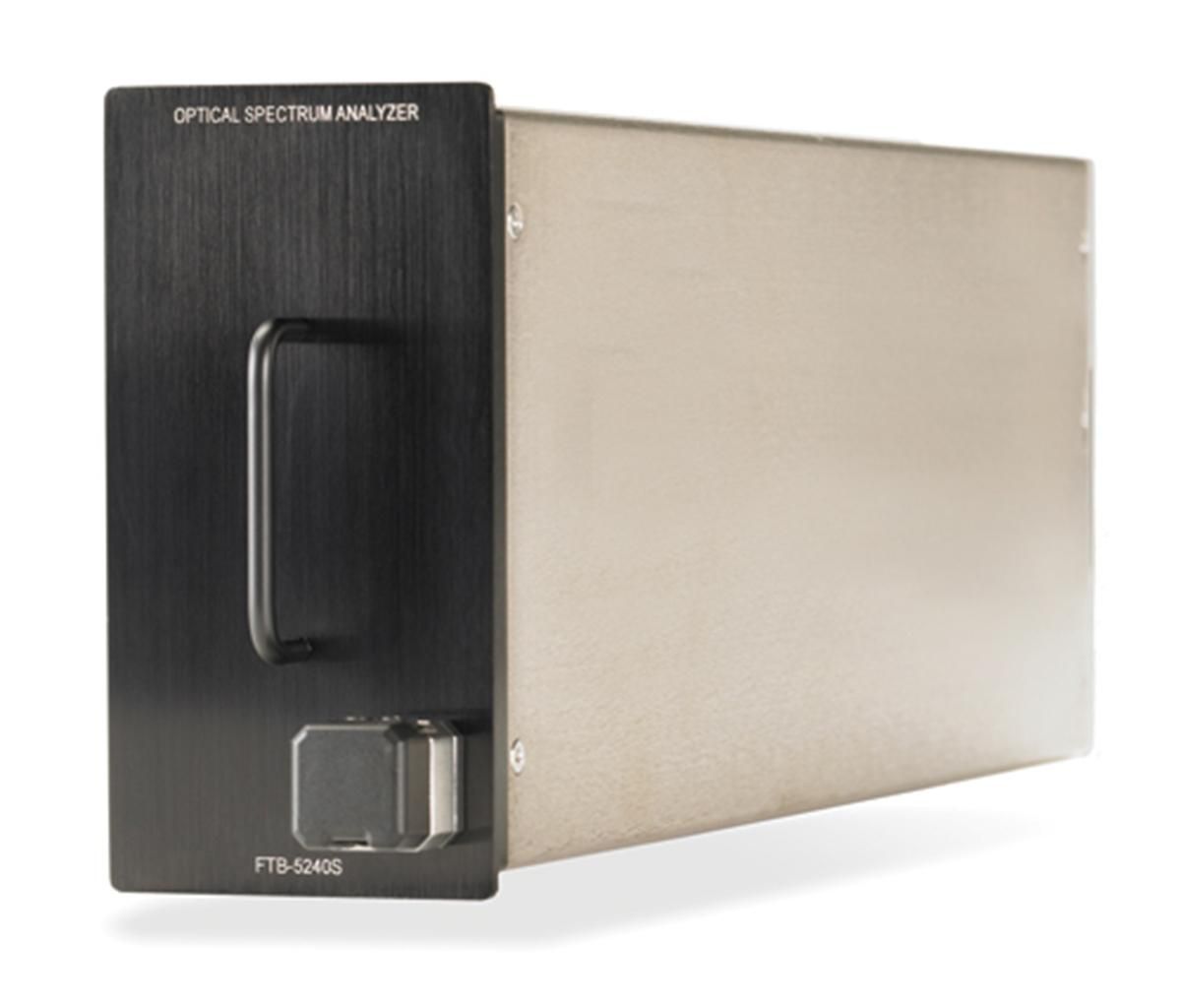

Exfo FTB-5240S-P
Optical Spectrum Analyzer Module
1260 nm – 1650 nm Rango de longitud de onda
hasta 45 dB Rango dinámico
0,8 m Resolución de punto muerto (evento)
4 m Resolución de punto muerto (atenuación)
3 ns – 20 000 ns Anchura de pulso
| Atributo | Valor |
|---|---|
| Rango de longitud de onda | 1260 nm – 1650 nm |
| Rango dinámico | hasta 45 dB |
| Resolución de punto muerto (evento) | 0,8 m |
| Resolución de punto muerto (atenuación) | 4 m |
| Anchura de pulso | 3 ns – 20 000 ns |
| Distancia máxima de medición | hasta 260 km |
| Incertidumbre de pérdida | ±0,03 dB/dB |
| Tipo de conector | SC/APC intercambiable |
| Compatibilidad de plataforma | Módulo para plataforma FTB-500 / FTB-1 |
| Aplicación principal | Caracterización y mantenimiento de redes de fibra óptica de largo alcance |
Exfo FTB-5240S-P Options:
- FTB-5240S-P - EI-EUI-28 - Connector adapter UPC/DIN 47256
- FTB-5240S-P - EI-EUI-76 - Connector adapter UPC/HMS-10/AG
- FTB-5240S-P - EI-EUI-89 - Connector adapter UPC/FC narrow key
- FTB-5240S-P - EI-EUI-90 - Connector adapter UPC/ST
- FTB-5240S-P - EI-EUI-91 - Connector adapter UPC/SC
- FTB-5240S-P - EI-EUI-95 - Connector adapter UPC/E-2000
- FTB-5240S-P - EA-EUI-28 - Connector adapter APC/DIN 47256
- FTB-5240S-P - EA-EUI-89 - Connector adapter APC/FC narrow key
- FTB-5240S-P - EA-EUI-91 - Connector adapter APC/SC
- FTB-5240S-P - EA-EUI-95 - Connector adapter APC/E-2000
- FTB-5240S-P - 00 - Without software option
- FTB-5240S-P - InB - With In-Band OSNR software
| Model | FTB-5240S-P |
|---|
The EXFO FTB-5240S-P OSA test module, housed in either the FTB-500 Platform or the FTB-200 Compact Platform, is purpose-built for fast and accurate dense wavelength-division multiplexing (DWDM) network commissioning and high-speed networking up to 40 Gbit/s. The built-in polarization-resolved optical spectrum method of EXFO's FTB 5240S P and FTB 5240BP OSAs enables you to achieve accurate in-band OSNR measurements of a ROADM or 40 Gbit/s system directly and automatically.
Here are the key features of the FTB-5240S:
- In-band OSNR measurement for 40 Gbit/s and ROADM deployments with the PROS-OSNR breakthrough approach
- One-button operation for easy setup and automatic measurement
- Truly portable spectral characterization for DWDM network commissioning
- Over 90 dB dynamic range per scan
- Flexibility to analyze WDM, EDFA, drift, spectral transmittance and DFB laser
- High-power option, ideal for multiservice operators and CATV operators
You can refurbished with warranty the EXFO FTB-5240S-P OSA test module at Testwall with 365 days customer service. Request a quote today.
