Fluke 1586A
| Atributo | Valor |
|---|---|
| Número de canales | 40 canales de medición de temperatura |
| Tipos de sensores compatibles | Termopares (J, K, T, E, N, R, S, B), RTD, termistores y tensión de CC |
| Exactitud de temperatura | ±0,008 °C para RTD de 4 hilos (PRT) |
| Rango de temperatura | -200 °C a 1820 °C dependiendo del tipo de sensor |
| Resolución de medición | 0,001 °C |
| Interfaz de comunicación | Ethernet, USB y RS-232 |
| Pantalla | Pantalla táctil a color de 7 pulgadas |
| Almacenamiento de datos | Memoria interna y soporte para unidad USB externa |
| Fuente de alimentación | 100 V CA a 240 V CA, 50/60 Hz |
| Cumplimiento normativo | Compatible con normas ISO/IEC 17025 y trazabilidad NIST |
Fluke 1586A Options:
- 1586A - 1DS - Super-DAQ, 1 DAQ-STAQ Multiplexer
- 1586A - 1DS/C - Super-DAQ, 1 DAQ-STAQ Multiplexer, Accredited Calibration
- 1586A - 2DS - Super-DAQ, 2 DAQ-STAQ Multiplexers
- 1586A - 2DS/C - Super-DAQ, 2 DAQ-STAQ Multiplexers, Accredited Calibration
- 1586A - 1HC - Super-DAQ, 1 High-Capacity Module
- 1586A - 1HC/C - Super-DAQ, 1 High-Capacity Module, Accredited Calibration
- 1586A - 2HC - Super-DAQ, 2 High-Capacity Modules
- 1586A - 2HC/C - Super-DAQ, 2 High-Capacity Modules, Accredited Calibration
- 1586A - DS-HC - Super-DAQ, 1 High-Capacity Module, 1 DAQ-STAQ Multiplexer
- 1586A - DSHC/C - Super-DAQ, 1 High-Capacity Module, 1 DAQ-STAQ Multiplexer, Accredited Calibration
| Model | 1586A |
|---|

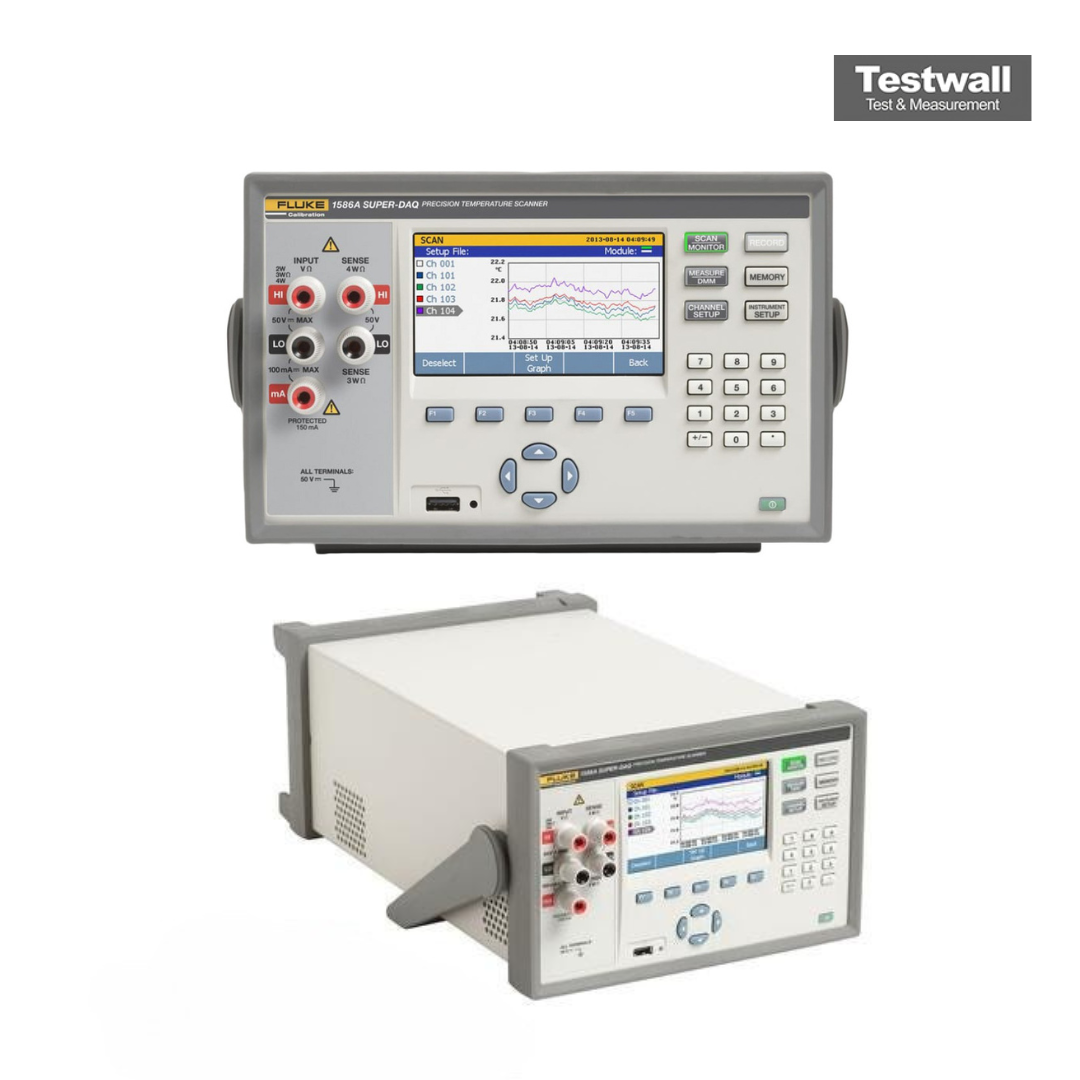

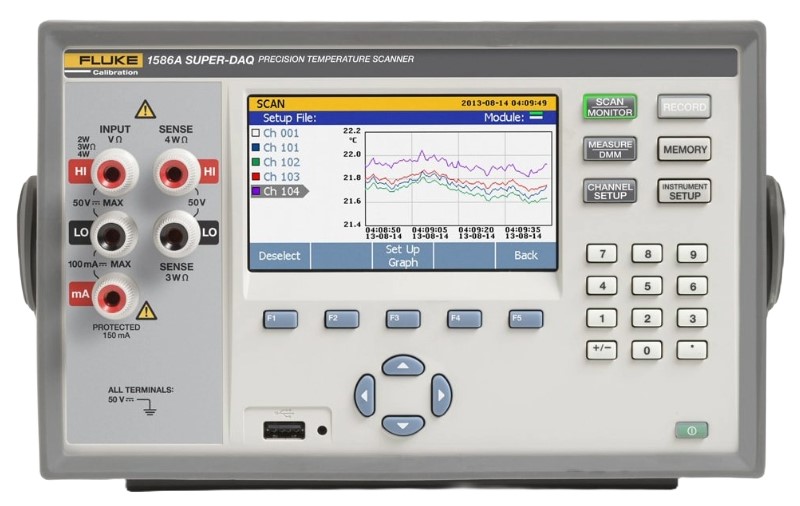

Fluke 1586A Super-DAQ Precision Temperature Scanner
The Fluke 1586A Super-DAQ Precision Temperature Scanner collects time-stamped precision temperature and electrical measurements for data analysis by technicians, engineers, and quality control personnel to verify process control, analyze interactive systems, ensure conformance to quality standards, or to correlate related events for R&D or troubleshooting. Measurement data and statistics can be viewed in tabular format for all active channels. With the graphing feature, up to four channels can be plotted at the same time, making Fluke 1586A easy to quickly assess test setup and results before analyzing the data on a PC.
Fluke 1586A Super-DAQ Precision Temperature Scanner can operate in four modes that let you scan, monitor, measure, or function as a digital multimeter from a single instrument. For factory applications, the Super-DAQ is configured with the internal High-Capacity Module which allows you to pre-configure multiple input modules and simply exchange one module for another, depending on your test requirements. For a calibration lab where accuracy is of primary importance, the Super-DAQ is best configured with a DAQ-STAQ Multiplexer. The Fluke 1586A Super-DAQ Precision Temperature Scanner is ideal for a number of applications such as thermal mapping, temperature validation, process sensor calibration, and more.
Specifications for the Fluke 1586A Super-DAQ Precision Temperature Scanner Include:
| Maximum input | 50 V |
| Offset voltage | < 2 μV |
| 3-wire internal resistance mismatch | < 50 mΩ |
| Basic CJC accuracy | 0.25 °C |
