Fluke 5550A
| Atributo | Valor |
|---|---|
| Rango de calibración de tensión AC | Hasta 1020 V AC |
| Rango de calibración de tensión DC | Hasta 1020 V DC |
| Rango de calibración de corriente AC | Hasta 20 A AC |
| Rango de calibración de corriente DC | Hasta 20 A DC |
| Rango de calibración de resistencia | Hasta 100 MΩ |
| Incertidumbre de tensión DC | ±12 ppm |
| Frecuencia de calibración AC | 10 Hz a 500 kHz |
| Interfaz de comunicación | IEEE-488 (GPIB), RS-232 |
| Temperatura de operación | 0 °C a 50 °C |
| Alimentación eléctrica | 100 V / 120 V / 220 V / 240 V AC, 50/60 Hz |
| Model | 5550A |
|---|

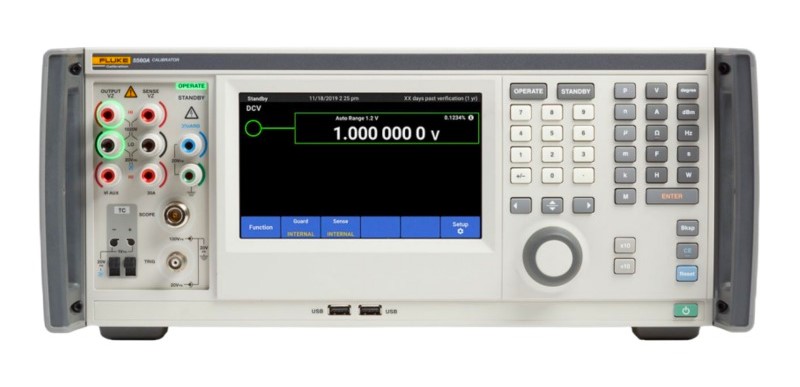

FLUKE 5550A Performance Multi-Product Calibrator
The patented ultra-linear analog-to-digital design enables the Fluke 5550A to achieve performance specifications that were not possible before, allowing you to calibrate a more accurate and demanding workload. Calibrate multimeters significantly faster with improved settling time, this means less wait time and more time actually performing the tests. The Fluke 5550A enhances the 5522A Multi-Product Calibrator with new calibration ranges optimized to better match your existing digital multimeter workload in a modern, ruggedized instrument with an intuitive graphical interface.
The Fluke 5550A Performance Multi-Product Calibrator is enhanced with new calibration ranges optimized to better match your existing digital multimeter workload in a modern, ruggedized instrument with an intuitive graphical interface. The Fluke 5550A works with MET/CAL, including hundreds of automated calibration procedures to consistently and dramatically improve throughput. MET/CAL v10.6 and later includes a Function Select Code (FSC) that enables you to add the 5550A seamlessly to your existing calibration operations.
Specifications for the FLUKE 5550A Performance Multi-Product Calibrator Include:
| Direct Volts | 0 V to ± 1020 V |
| Direct Current | 0 to ± 30.2 A |
| Alternating Volts | 1 mV to 1020 V, 3 Hz to 500 kHz |
| Alternating Current | 10 μA to 30.2 A, 3 Hz to 30 kHz |
