Fluke 715
| Atributo | Valor |
|---|---|
| Rango de salida de corriente | 4 mA a 20 mA |
| Resolución de corriente | 0,001 mA |
| Precisión de corriente | ±0,025% del valor + 2 µA |
| Tensión de alimentación | 9 V (batería de 6F22) |
| Carga máxima de bucle | 1000 Ω |
| Función de rampa automática | Sí, incrementos de 25% (4, 8, 12, 16 y 20 mA) |
| Función de paso (Step) | Incrementos de 25% seleccionables manualmente |
| Temperatura de funcionamiento | -10 °C a 50 °C |
| Grado de protección | IP40 |
| Dimensiones | 175 mm x 80 mm x 38 mm |
| Model | 715 |
|---|

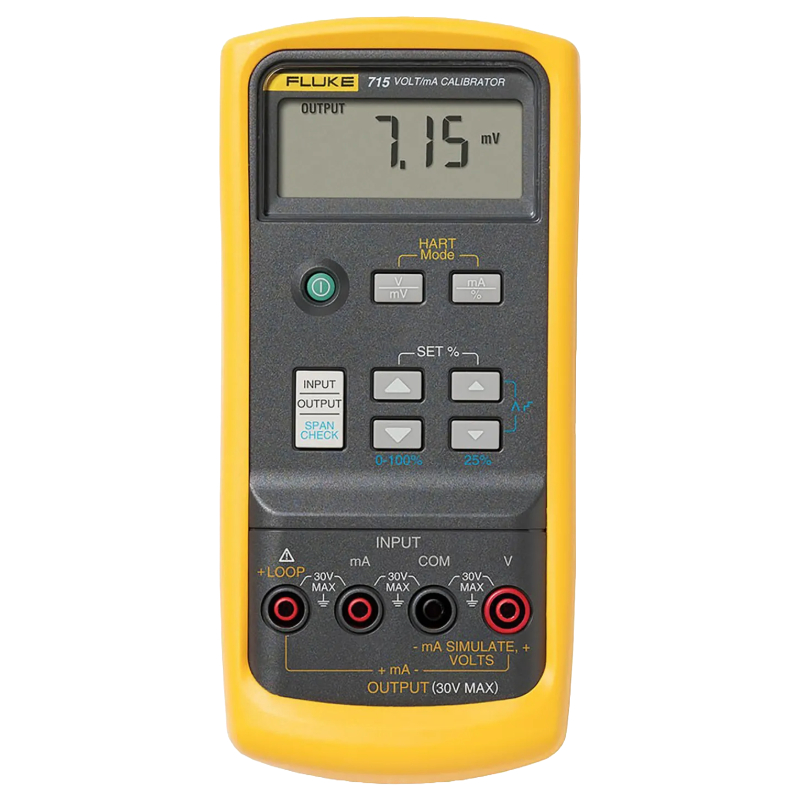

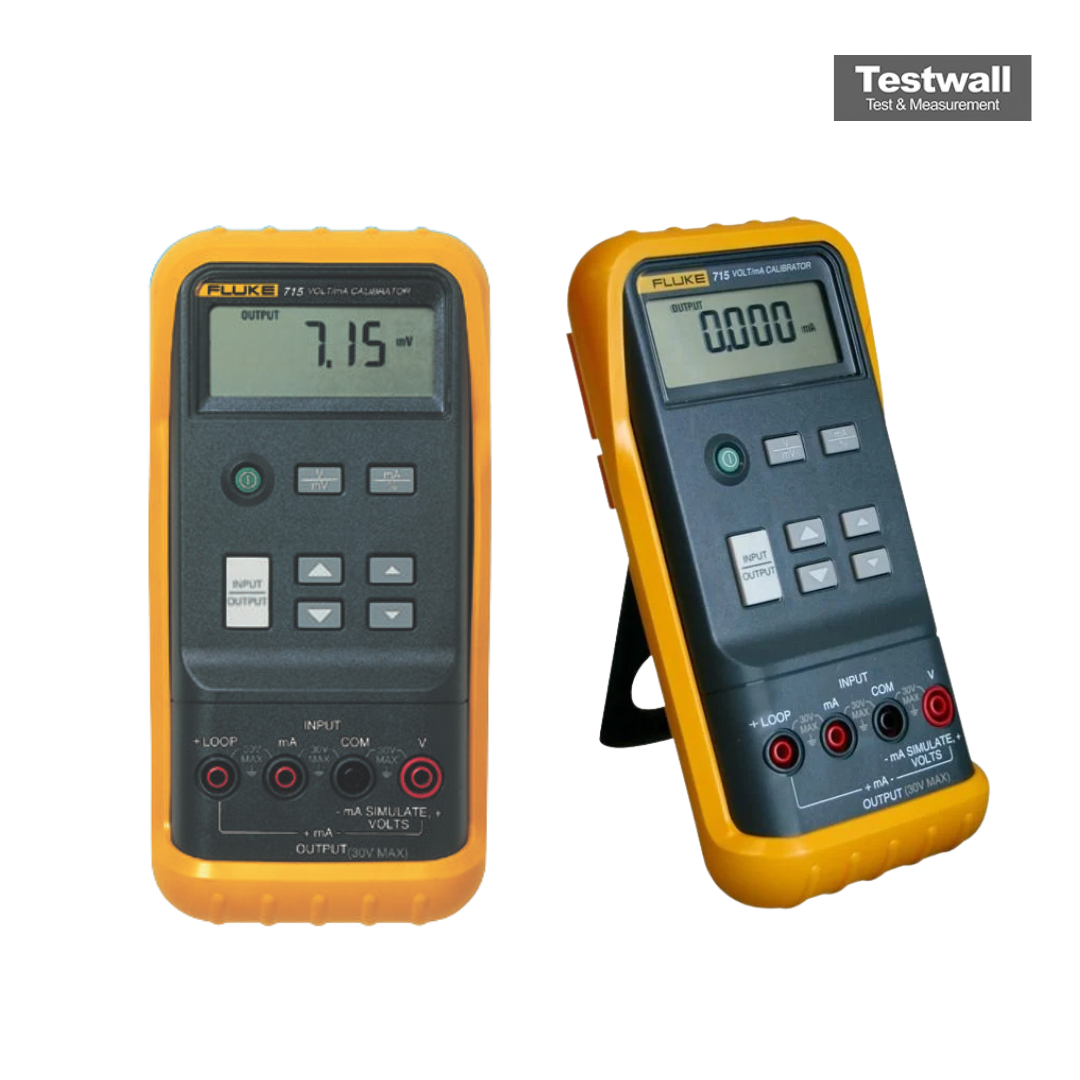

Fluke 715 Volt/mA Calibrator
The Fluke 715 Volt/mA Calibrator is a compact and versatile tool designed to measure and source loop cur and voltage signals. Offered in the rugged digital multimeter package, the calibrator measures loop cur as well as voltage output. It sources voltage to 200 mV or 20 V, measures loop cur (0-20 mA, 4-20 mA) signals with 0 .01 % accuracy, and 1 µA resolution, and measures voltage output process signals from PLCs and transmitters. Fluke 715 Volt/mA Calibrator can source or simulate 4-20 mA loop cur and provides a 24 V loop supply with simultaneous cur measurement.
Fluke 715 Volt/mA Calibrator is extremely easy to use with a simple push button interface. It is EMI tolerant as well as dust and splash resistant. It also features a removable battery door for quick battery changes after the 18 hours of battery life the 9 V battery provides. And the tool also comes with a protective yellow holster with test lead storage. For added convenience the Fluke 715 Volt/mA Calibrator is also compatible with the ToolPak magnetic meter hanging system. It is commonly used in industrial automation and process control applications for troubleshooting, calibration, and testing.
Specifications for the Fluke 715 Volt/mA Calibrator Include:
| Voltage measurement range | 0 mV to 200 mV / 0 V to 25 V |
| Cur measurement range | 0 mA to 24 mA |
| Cur sourcing range | 0 mA to 20 mA or 4 mA to 20 mA |
| Accuracy | 0.01 % Rdg + 2 counts |
