Fluke 718-100G
| Atributo | Valor |
|---|---|
| Rango de presión | 0 a 100 psi (0 a 6,9 bar) |
| Exactitud | ±0,05% de la escala completa |
| Tipo de presión | Presión manométrica |
| Fuente de alimentación | 6 pilas AA de 1,5 V |
| Pantalla | Pantalla LCD de doble línea con retroiluminación |
| Temperatura de funcionamiento | -10 °C a 50 °C |
| Temperatura de almacenamiento | -20 °C a 60 °C |
| Conexión de presión | Conexión de proceso de 1/4 NPT |
| Salida de señal | Salida de bucle de corriente de 4 a 20 mA |
| Certificaciones | CE, cumple con las normativas de seguridad internacionales |
| Model | 718-100G |
|---|

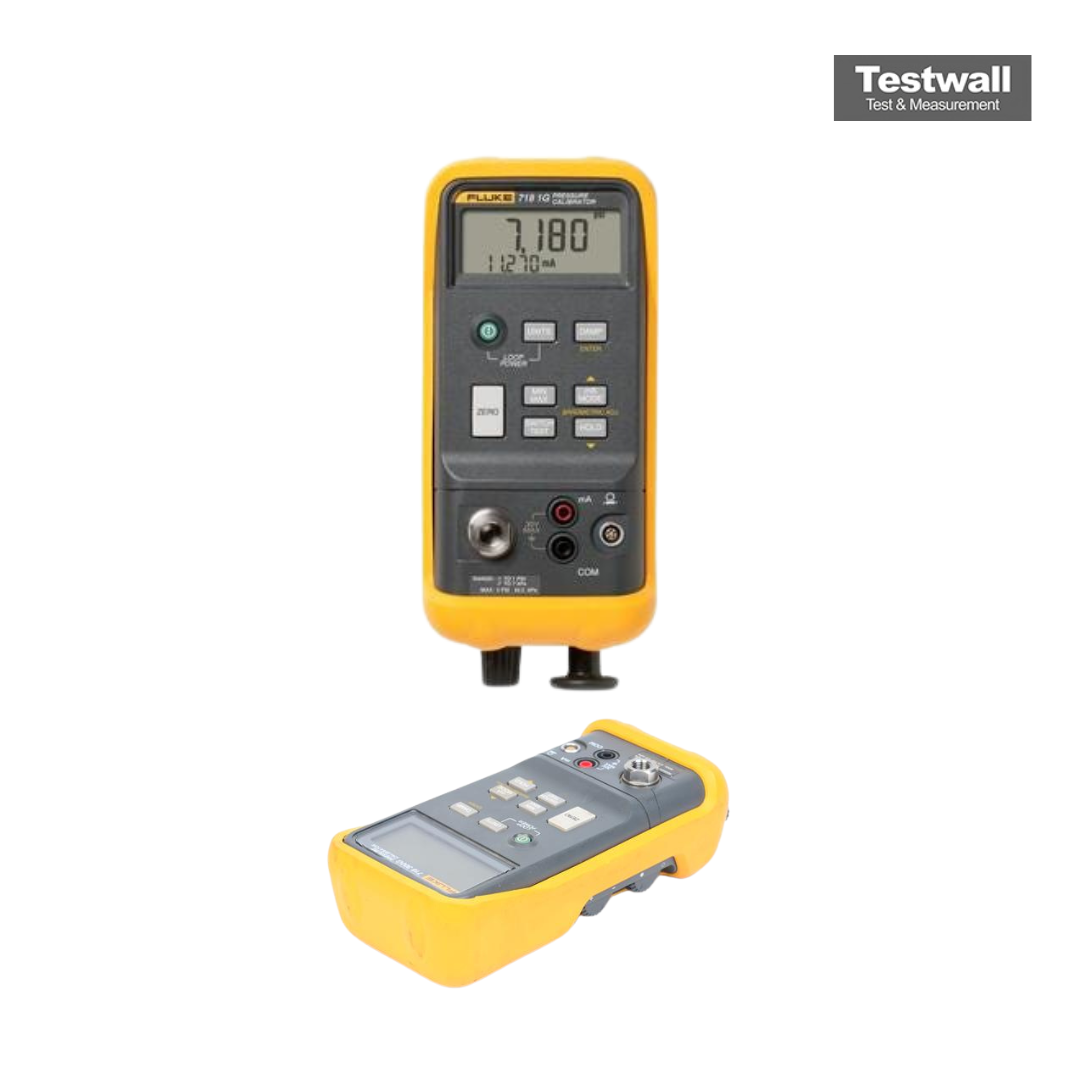

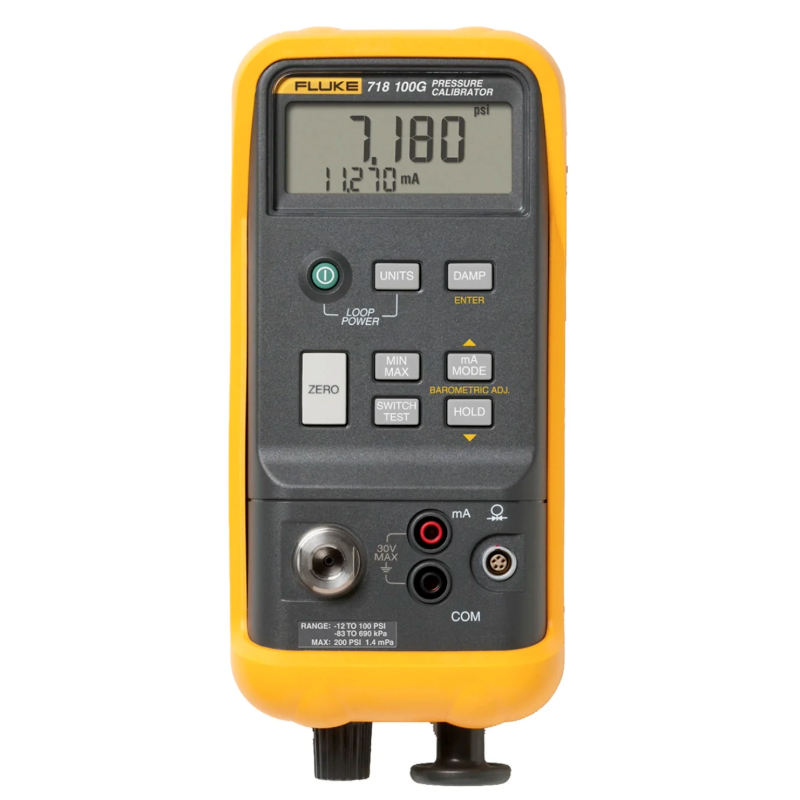

Fluke 718-100G Pressure Calibrator
The Fluke 718-100G Pressure Calibrator provides a total pressure calibration solution for transmitters, gauges, and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). Fluke 718-100G is having a unique easy-to-clean integrated pump which helps protect it from damage and provides the ability to service the pump without disassembly, even in the field.
Fluke 718-100G Pressure Calibrator features Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device. With an easy-to-use error % calculation you can make pass/fail decisions quickly. Meaning you can make decisions in the field without having to analyze the results later. The min/max/hold function also makes it easy to capture changing measurements for comparison or documentation. Fluke 718-100G features the integrated pressure switch test function, and best-in-class mA accuracy (0.015%) which provide a high level of measurement confidence and even broader workload coverage.
Specifications for the Fluke 718-100G Pressure Calibrator Include:
| Range | -12 psi to 100 psi, (-850 mbar to 7 bar, -85 to 689.48 kPa) |
| Resolution | 0.01 psi, 0.1 mbar, 0.01 kPa |
| Over pressure | 2x Full Scale |
| Functions | Zero, Min, Max, Hold, Damp |
