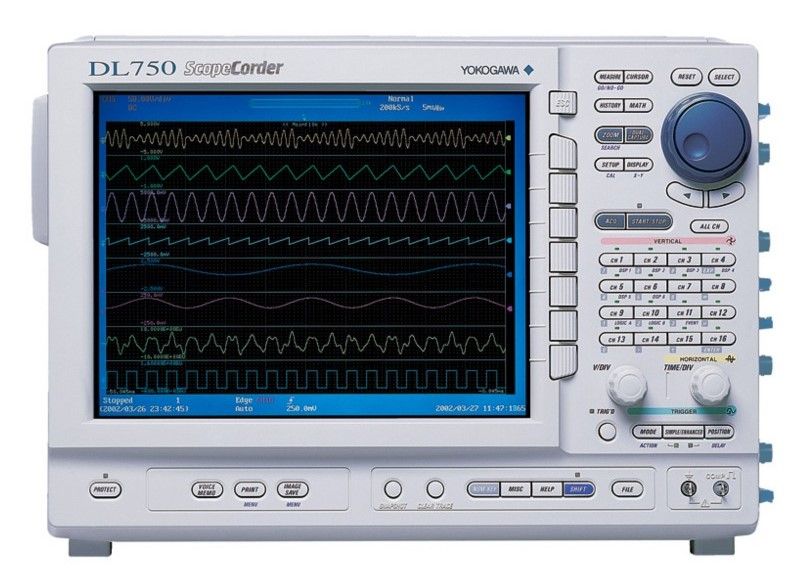

Yokogawa DL750
| Atributo | Valor |
|---|---|
| Número de canales | 16 canales (8 módulos de 2 canales cada uno) |
| Ancho de banda | 500 kHz (dependiendo del módulo instalado) |
| Frecuencia de muestreo máxima | 10 MS/s por canal |
| Longitud de registro | hasta 16 MW por canal |
| Resolución vertical | 16 bits |
| Pantalla | Pantalla LCD TFT a color de 8,4 pulgadas |
| Interfaz de almacenamiento | PC Card (ATA), disco duro interno opcional |
| Interfaces de comunicación | Ethernet (100BASE-TX), USB, GP-IB (opcional) |
| Tensión de entrada máxima | ±1000 V (dependiendo del módulo de entrada) |
| Alimentación eléctrica | 100-240 V CA, 50/60 Hz |
Yokogawa DL750 Options:
- DL750 - /M1 - Memory expansion to 10 MW/ch (250 MW max.)
- DL750 - /M2 - Memory expansion to 25 MW/ch (500 MW max.)
- DL750 - /M3 - Memory expansion to 50 MW/ch (1 GW max.)
- DL750 - /C8 - Internal 40 GB hard disk (FAT32)
- DL750 - /C10 - Ethernet interface
- DL750 - /G2 - User-defined computation
- DL750 - /G3 - DSP channel
- DL750 - /P4 - Four probe power outputs
- DL750 - /DC - DC12 V power (10 to 18 VDC) (DL750 only)
- DL750 - -D - Power code: UL and CSA standard
- DL750 - -F - Power code: VDE standard
- DL750 - -R - Power code: AS standard
- DL750 - -Q - Power code: BS standard
- DL750 - -H - Power code: GB standard (Complied with CCC)
- DL750 - -J1 - Built-in media drive: Floppy disk drive
- DL750 - -J2 - Built-in media drive: Zip drive (DL750 only)
- DL750 - -J3 - Built-in media drive: PC card interface
- DL750 - -HE - Default language: English
- DL750 - -HJ - Default language: Japanese
- DL750 - -HC - Default language: Chinese
- DL750 - -HK - Default language: Korean
- DL750 - -HG - Default language: German
- DL750 - -HF - Default language: French
- DL750 - -HL - Default language: Italian
- DL750 - -HS - Default language: Spanish
| Model | DL750 |
|---|
The Yokogawa DL750 is one of the best tools available for measuring physical and electrical phenomena under 10 million samples per second. This unique and versatile instrument combines the benefits of a high speed oscilloscope and traditional data acquisition recorder.
Designed for electro-mechanical systems, the DL750 ScopeCorder delivers higher vertical resolution, channel count, isolation, filtering, and abundant acquisition memory. As a diagnostic tool, the ScopeCorder offers all the analysis tools of a modern digital oscilloscope, like cursors, waveform parameter calculations, math and DSP channels, FFT's, and more. In most cases, you can analyze your data and get results immediately, with no offline post-processing.
As a recorder, the Yokogawa DL750 ScopeCorder can automatically send you an email, print your captured data, sound an alarm, and save your data when it detects a fault condition. Whether your observation times are microseconds or months, the ScopeCorder will stay on the job, and your data will be waiting for you when you are ready for it.
MODULES:
- 701250 High-speed 10 MS/s 12-Bit Isolation Module (2 ch)
- 701251 High-speed 1 MS/s 16-Bit Isolation Module (2 ch)
- 701255 High-speed 10 MS/s 12-Bit non-Isolation Module (2 ch)
- 701260 High-voltage 100 kS/s 16-Bit Isolation Module (with RMS2 ch)
- 701261 Universal Module (2 ch)
- 701262 Universal Module (with Anti-Aliasing Filter, 2 ch)
- 701265 Temperature/high-precision voltage Module (2 ch)
- 701270 Strain Module (NDIS, 2 ch)
- 701271 Strain Module (DSUB, Shunt-CAL, 2 ch)
- 701275 Acceleration/Voltage Module (with Anti-Aliasing Filter, 2 ch)
- 701280 Frequency Module (2 ch)
