Fluke 718-1G
| Atributo | Valor |
|---|---|
| Rango de presión | 0 a 1 psi (0 a 6,9 kPa) |
| Precisión | ±0,05% del fondo de escala |
| Tipo de presión | Manométrica |
| Fuente de alimentación | 6 pilas AA de 1,5 V |
| Pantalla | Pantalla LCD de doble visualización |
| Bomba incorporada | Bomba de presión/vacío integrada |
| Salida de bucle de corriente | 4 a 20 mA simulada |
| Temperatura de funcionamiento | -10 °C a 50 °C |
| Grado de protección | IP40 |
| Peso | Aproximadamente 1 kg (con pilas) |
| Model | 718-1G |
|---|

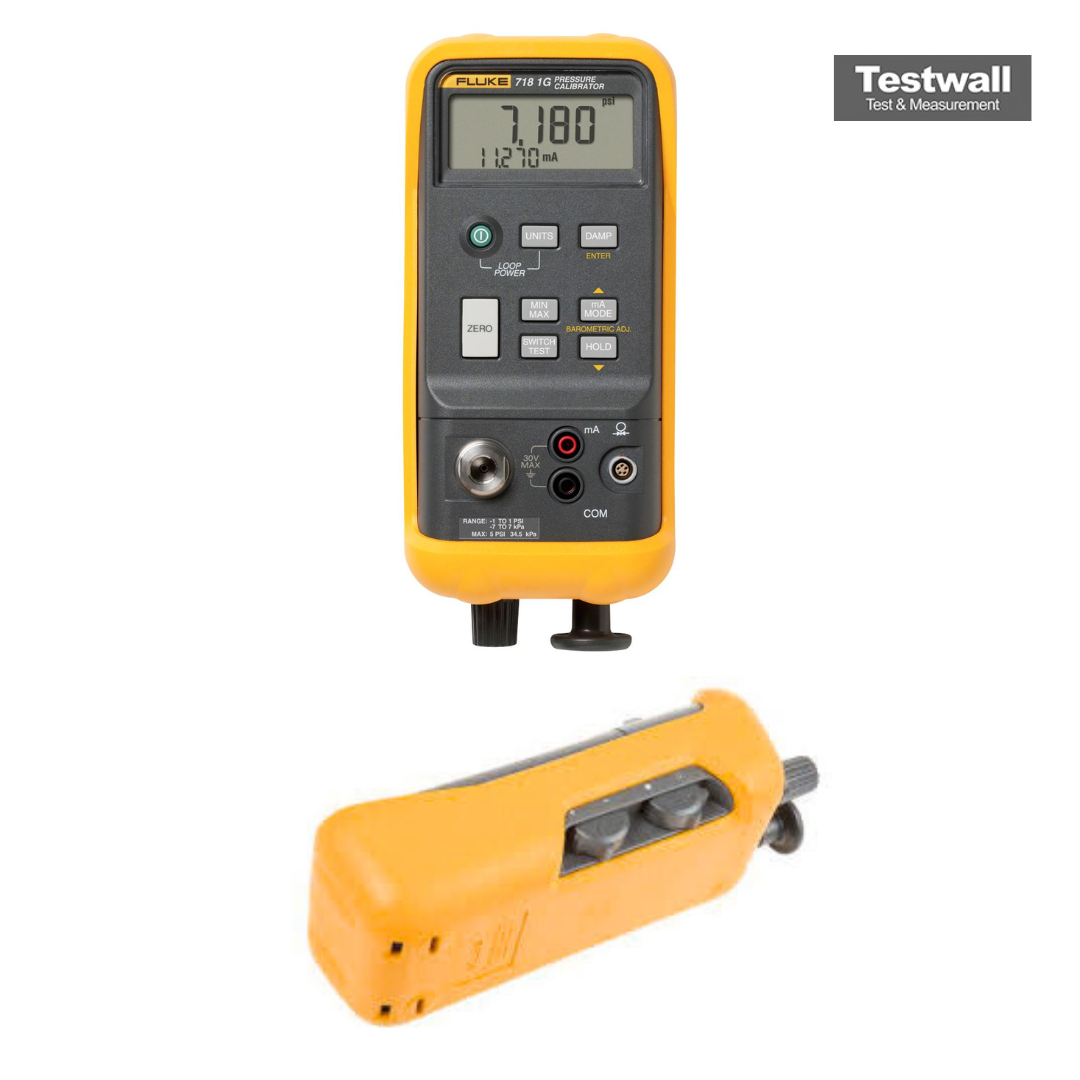

Fluke 718-1G Pressure Calibrator
The Fluke 718-1G Pressure Calibrator provides a total pressure calibration solution for transmitters, gauges, and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). Fluke 718-1G is having a unique easy-to-clean integrated pump which helps protect it from damage and provides the ability to service the pump without disassembly, even in the field.
Fluke 718-1G Pressure Calibrator features Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device. With an easy-to-use error % calculation you can make pass/fail decisions quickly. Meaning you can make decisions in the field without having to analyze the results later. The min/max/hold function also makes it easy to capture changing measurements for comparison or documentation. Fluke 718-1G features the integrated pressure switch test function, and best-in-class mA accuracy (0.015%) which provide a high level of measurement confidence and even broader workload coverage.
Specifications for the Fluke 718-1G Pressure Calibrator Include:
| Range | -1 PSI to +1 PSI, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa) |
| Resolution | 0.0001 psi, 0.001 mbar |
| Over pressure | 5 x Full Scale |
| Functions | Zero, Min, Max, Hold, Damp |
