Test Equity 105
| Atributo | Valor |
|---|---|
| Rango de Temperatura | -73°C a +177°C (-100°F a +350°F) |
| Estabilidad de Temperatura | ±0,3°C |
| Uniformidad de Temperatura | ±1,0°C |
| Volumen Interior | 0,15 m³ (5,3 pies cúbicos) |
| Dimensiones Interiores (An x Al x Pr) | 457 mm x 457 mm x 711 mm |
| Dimensiones Exteriores (An x Al x Pr) | 864 mm x 1.397 mm x 889 mm |
| Alimentación Eléctrica | 208/230 V, 60 Hz, monofásico |
| Consumo de Energía | 3,0 kW |
| Refrigerante | R-404A (sin CFC) |
| Controlador de Temperatura | Controlador digital programable con pantalla LCD |
| Model | 105 |
|---|

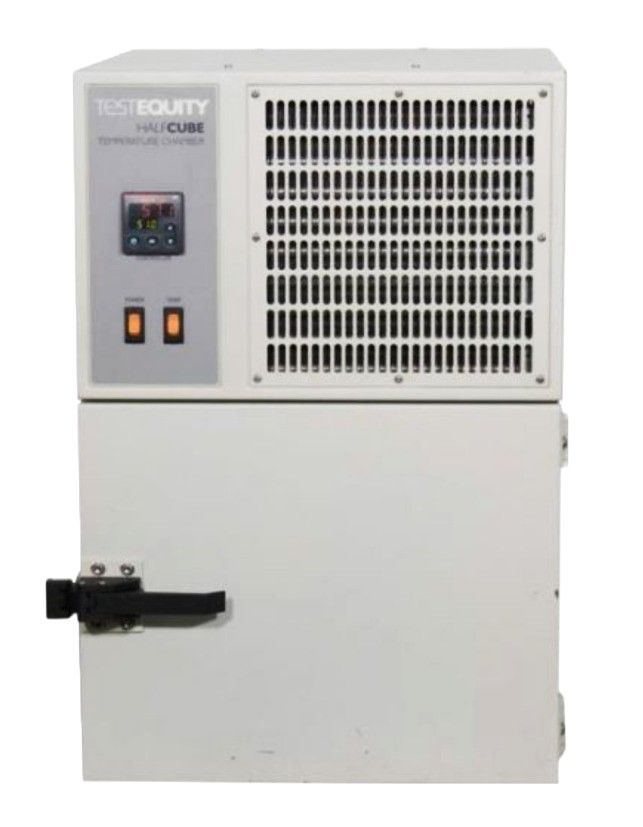

TEST EQUITY 105 Half Cube Temperature Chamber
The TestEquity 105 Half Cube temperature chamber is small enough to fit on your bench with plenty of room to spare. It's 40% smaller and uses 33% less power than the typical €œbenchtop " chamber. Easy to use microprocessor-based controller stores 256 steps in up to 40 profiles. Includes an RS-232C interface. Optional GPIB interface is available. A four-line backlit LCD displays programming, setup, operating and help information. A large LED readout indicates the actual chamber temperature with 0.1 ° resolution.
The Test Equity 105 Half Cube's refrigeration system generates a low level of audible noise and vibration. You'll be able to work close to the chamber with minimum discomfort and distraction. A stainless steel wire shelf ensures proper airflow around your test sample for uniform temperature distribution. Both high and low limits can be set. The limit controller will shut down the chamber in the event of an out of limit condition. The Half Cube draws only 10 Amps maximum at 120 Volts. You can plug it into any standard wall receptacle, with plenty of power to spare for other equipment.
Specifications for the TEST EQUITY 105 Half Cube Temperature Chamber Include:
| Temperature Range | -40 °C to +130 °C |
| Internal Dimensions | 12" W x 9" H x 8" D, (0.5 cubic feet) |
| Heat Up Time | 12 °C/minute typical |
| Control Tolerance | ±0.5 °C ( ±0.2 °C Typical) |
