Fluke 773
| Atributo | Valor |
|---|---|
| Rango de medición de corriente (mA) | 0 a 100 mA CC |
| Precisión de corriente | ±0,2% + 2 dígitos |
| Salida de lazo simulado | 0 mA a 24 mA CC |
| Resolución de corriente | 0,01 mA |
| Fuente de alimentación | 4 pilas AA (1,5 V) |
| Autonomía de la batería | 100 horas aproximadamente |
| Temperatura de funcionamiento | -10 °C a +55 °C |
| Temperatura de almacenamiento | -40 °C a +60 °C |
| Categoría de seguridad | CAT III 600 V, CAT IV 300 V |
| Grado de protección | IP40 |
| Model | 773 |
|---|

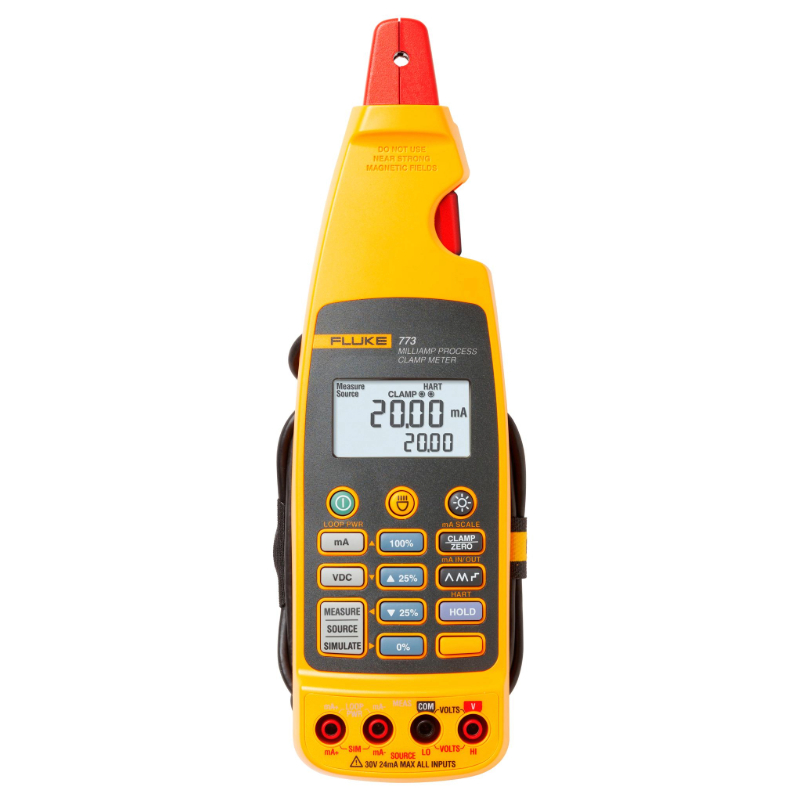

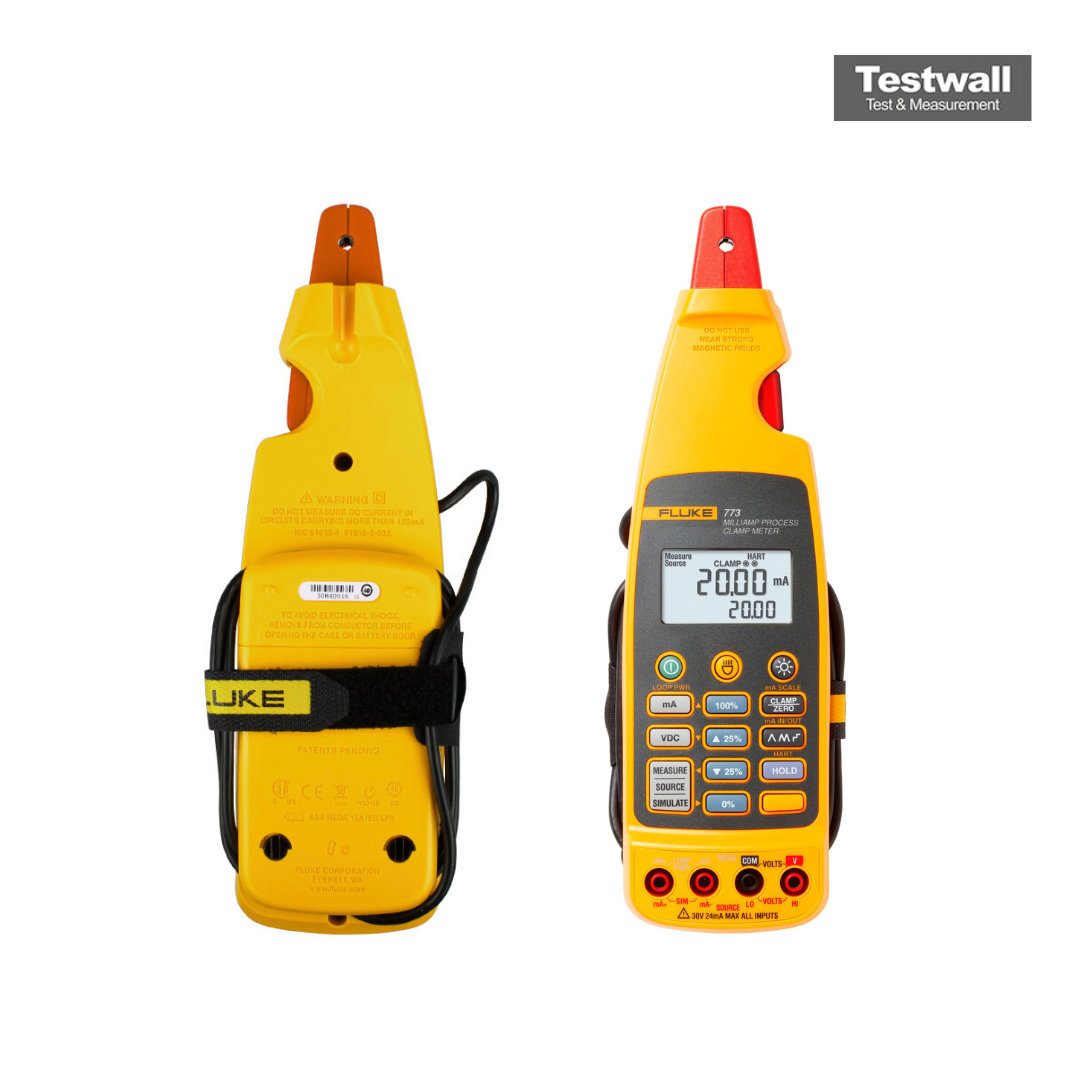

FLUKE 773 Milliamp Process Clamp Meter
The Fluke 773 Milliamp Process Clamp Meter is a accurate, versatile, and highly portable tool, designed saves time and money by measuring 4 €“20 mA signals five times faster than with traditional multimeters, and without breaking the loop. That means you can troubleshoot a live device without having to power down and possibly miss something going on in the process. Fluke 773 Milliamp Process Clamp Meter features the unique mA scale to measure a mA signal without breaking the loop and output that signal to another device to record the measurements.
The Fluke 773 Milliamp Process Clamp Meter is ideal for troubleshooting transmitters, valves, and programmable logic controllers (PLCs) found in process plants. The 773 allows you to connect to a mA loop in a traditional series workflow to measure, source, or simulate a control system. And it measures up to 99.0 mA non-contact, including 10 to 50 mA signals in older control systems. Fluke 773 Milliamp Process Clamp Meter also sources and measures DC voltage, so it can be used to troubleshoot voltage input and output devices that accept a 1-5 V or 0 to 10 V signal. You can detach the clamp section of the meter and use it as a remote jaw, connected to the main body by an extension cable to make it easier to take measurements in tight spaces.
Specifications for the FLUKE 773 Milliamp Process Clamp Meter Include:
| mA measurement range (Measured by Clamp) | 0 to 20.99 mA, 21.0 to 100.0 mA |
| Accuracy (Measured by Clamp) | 0.2% + 5 counts, 1 % + 5 counts |
| Diameter of measurable conductor | 0.177" or 4.5 mm max |
| Operating temperature | -10 to 50 ºC |
