Tektronix TIVP05
| Atributo | Valor |
|---|---|
| Ancho de banda | 500 MHz |
| Tensión de entrada máxima | ±4 V (punta diferencial), ±200 V (tensión de modo común) |
| Atenuación | 10X / 100X (seleccionable) |
| Impedancia de entrada | 2 MΩ en paralelo con 5 pF |
| Factor de división | 10:1 y 100:1 |
| Tensión de trabajo (CAT III) | 300 V RMS |
| Relación de rechazo de modo común (CMRR) | 80 dB a 60 Hz |
| Tiempo de subida | 700 ps (típico) |
| Longitud del cable | 1,2 m |
| Compatibilidad | Osciloscopios Tektronix con entrada TekVPI |
Tektronix TIVP05 Options:
- TIVP05 - C3 - Calibration Service 3 Years
- TIVP05 - C5 - Calibration Service 5 Years
- TIVP05 - D1 - Calibration Data Report
- TIVP05 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- TIVP05 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- TIVP05 - R3 - Repair Service 3 Years (including warranty)
- TIVP05 - R5 - Repair Service 5 Years (including warranty)
| Model | TIVP05 |
|---|

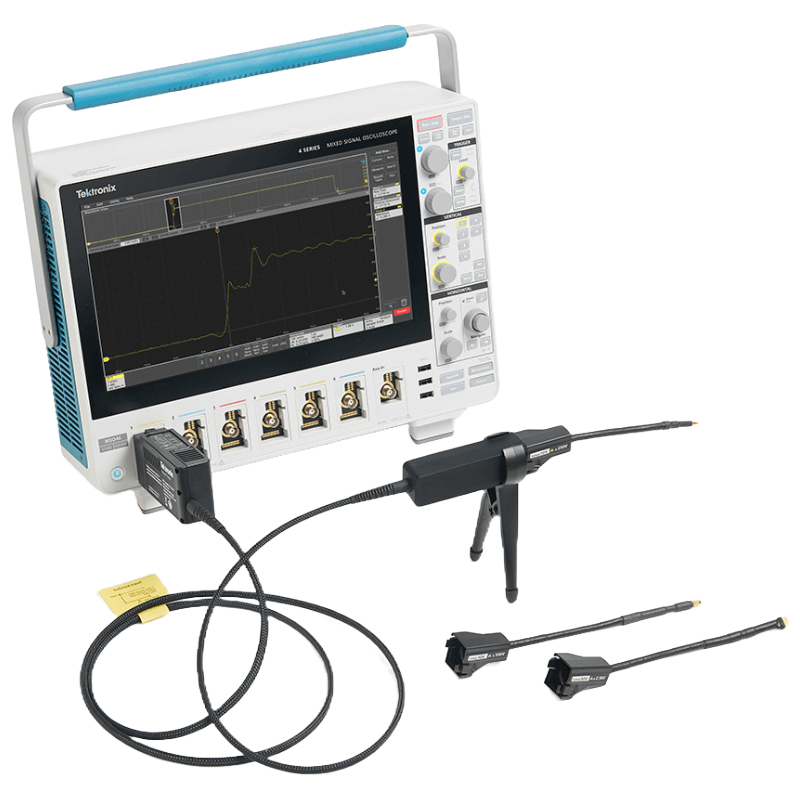

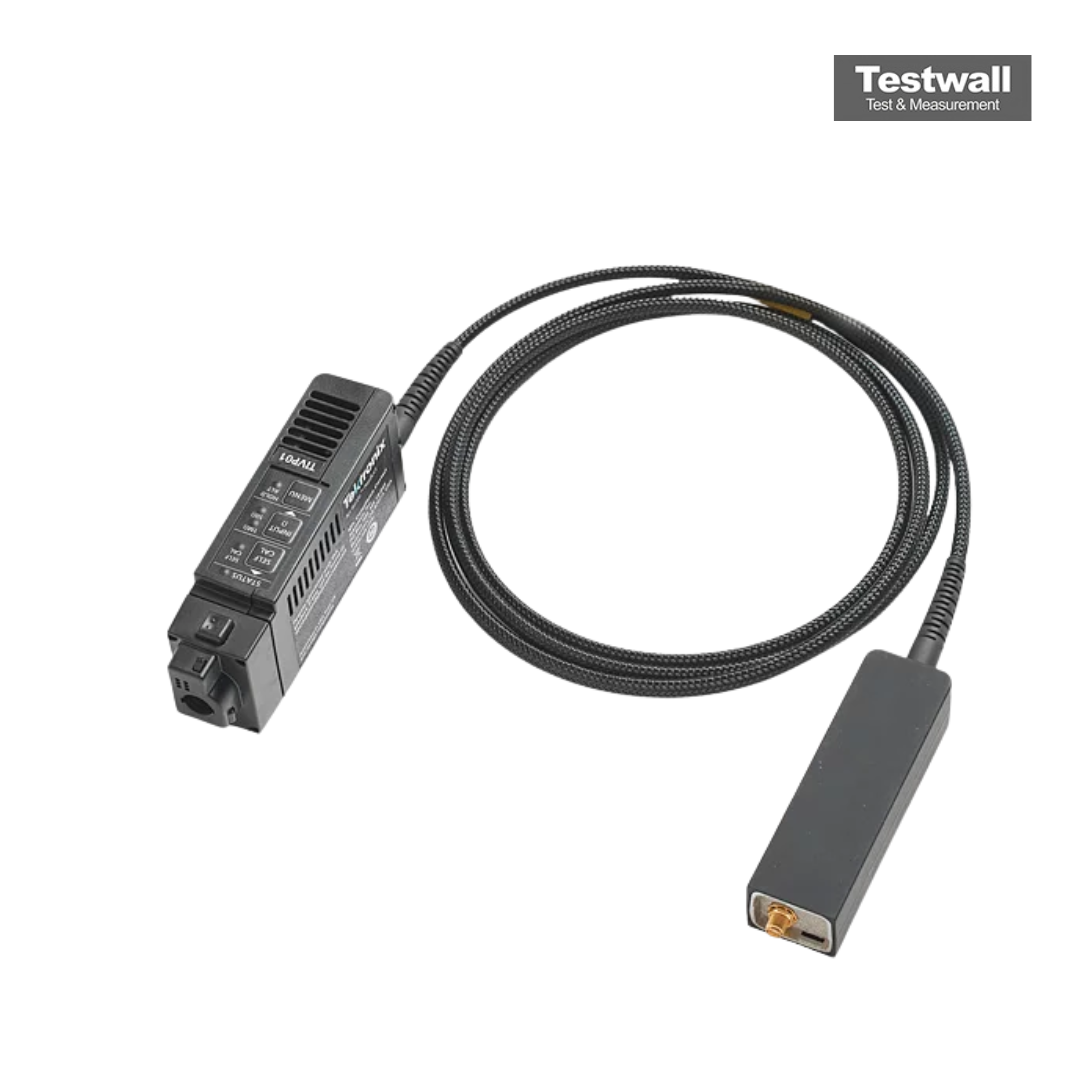

TEKTRONIX TIVP05 500 MHz Galvanically Isolated High Impedance Differential Probe
The Tektronix TIVP05 500 MHz Galvanically Isolated High Impedance Differential Probe equipped with IsoVu technology delivers accurate differential measurements up to ±2500 V on reference voltages slewing ±60 kV at 100 V/ns or faster. With versatile MMCX connectors and an unmatched combination of bandwidth, dynamic range, and common mode rejection, Tektronix TIVP05 differential probe is setting new standards for isolated probe technology and enabling wide bandgap power designs using SiC and GaN.
Tektronix TIVP1 Galvanically Isolated High Impedance Differential Probe tips have a range of connections and accessories that offer high performance and accessibility. The probes can connect directly to MMCX connectors, which are inexpensive and widely available. This makes for stable, hands-free test points and offers high bandwidth and common mode rejection. Tektronix TIVP05 500 MHz Galvanically Isolated High Impedance Differential Probe has unmatched common mode rejection at full bandwidth that lets you see signal details, often for the first time.
Specifications for the TEKTRONIX TIVP05 500 MHz Galvanically Isolated High Impedance Differential Probe Include:
| Bandwidth | 500 MHz |
| Rise Time | 850 ps |
| Common Mode Voltage Range | 60 kV peak |
| Input Capacitance | < 2 pF |
