Fluke 9009-B
| Atributo | Valor |
|---|---|
| Tipo de calibrador | Calibrador de termómetros de resistencia (RTD) y termopares |
| Rango de temperatura simulada | -200 °C a 1372 °C (dependiendo del tipo de sensor) |
| Tipos de termopares compatibles | J, K, T, E, R, S, B, N |
| Tipos de RTD compatibles | PT100, PT200, PT500, PT1000, Cu10, Cu25, Ni120 |
| Exactitud de simulación | ±0,05% del rango completo |
| Resolución de temperatura | 0,1 °C |
| Fuente de alimentación | Batería de 9 V (tipo PP3 / 6F22) |
| Modos de operación | Simulación y medición de termopares y RTD |
| Compensación de unión fría | Automática, integrada |
| Dimensiones (L x An x Al) | Aproximadamente 175 mm x 80 mm x 35 mm |
Fluke 9009-B Options:
- 9009 - 9009-B-156 - Fluke Calibration 9009 Dual-Well Dry-Well, Dual Block (Black), 110V 50/60HZ
- 9009 - 9009-Y-156 - Fluke Calibration 9009 Dual-Well Dry-Well, Dual Block (Yellow), 110V 50/60HZ
| Model | 9009-B |
|---|

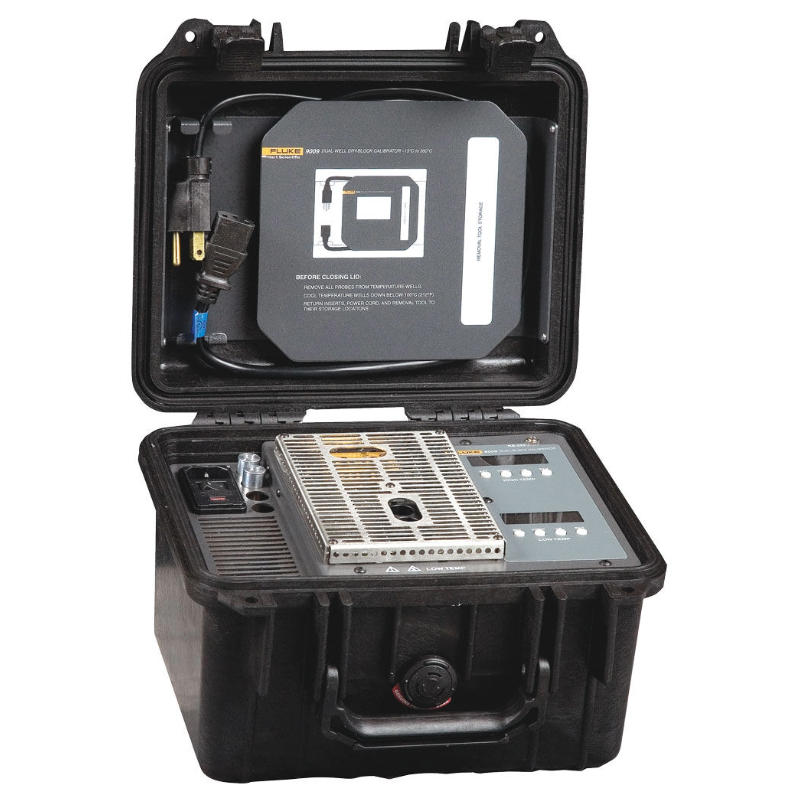

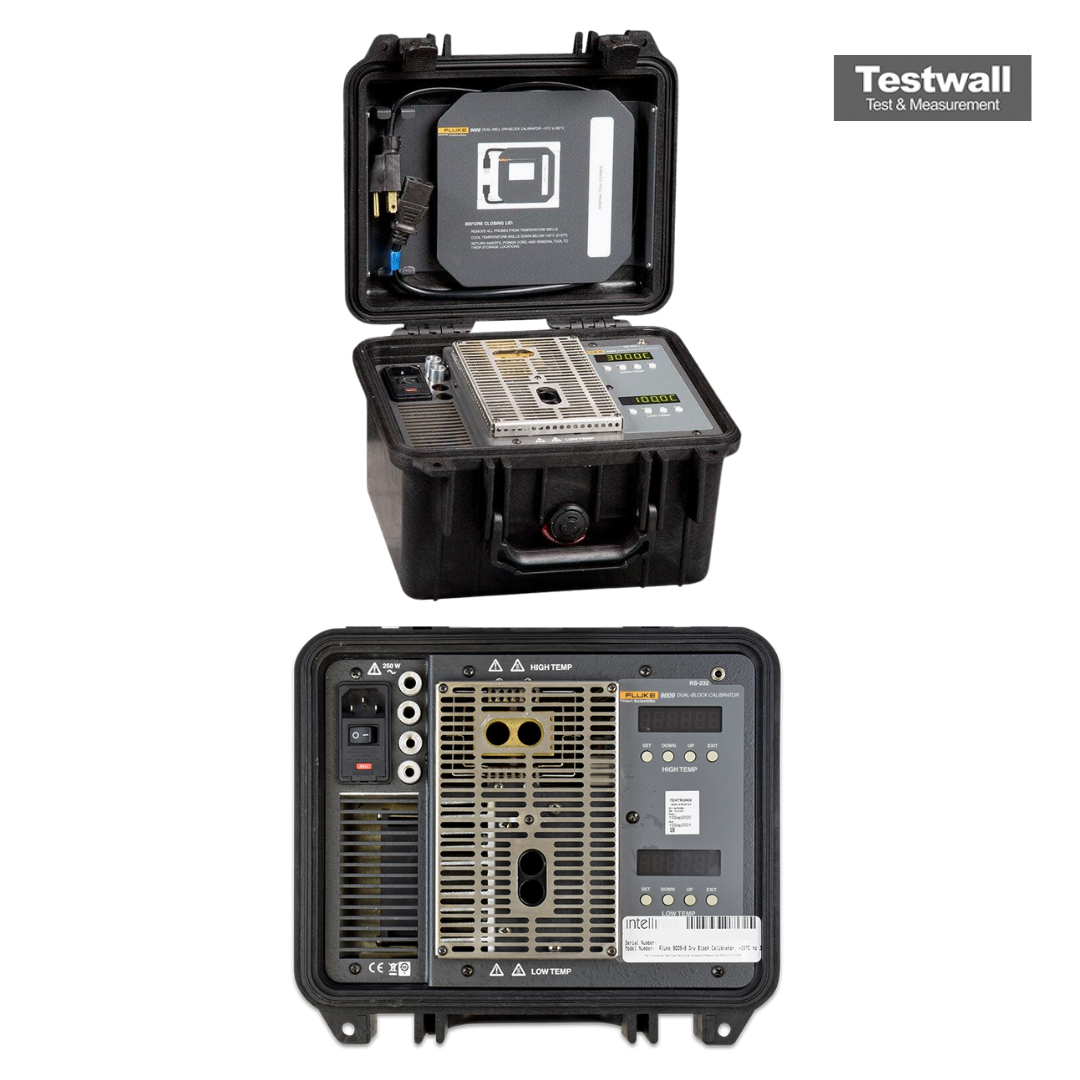

Fluke 9009-B Dual Dry Block
The Fluke 9009-B Dual Dry Block is a lightweight and water-resistant dual-block calibrator that lets you calibrate at hot and cold temperatures simultaneously. The hot block provides temperatures from 50 °C to 350 °C, while the cold block covers the range €“15 °C to 110 °C. Each block is controlled by a precision Hart Scientific temperature controller ensuring and stable temperature settings. Eliminating the need to wait for multiple temperature points during calibration, this unique dual unit allows you to calibrate your sensor in the heated well while the cool well stabilizes.
Fluke 9009-B Dual Dry Block comes with an RS-232 connection, which allows you to control and monitor temperatures from your PC. Each temperature block includes two wells with removable inserts. You can calibrate four probes at once, or you can calibrate two probes at the same time with an external reference, or you can use the two temperature wells to get quick €œzero" and €œspan" references for transmitter calibrations. Inserts are available to accommodate sensors of any size from 1/16" (1.6 mm) to 7/16" (11.1 mm). Fluke 9009-B Dual Dry Block is rugged, portable and easy to transport, making it ideal for field calibration applications.
Specifications for the Fluke 9009-B Dual Dry Block Include:
| Range | 50 °C to 350 °C (Hot block), €“15 °C to 110 °C (Cold block) |
| Accuracy | ±0.6 °C (Hot block), ±0.2 °C (Cold block) |
| Stability | ±0.05 °C |
| Stabilization times | 8 minutes |
