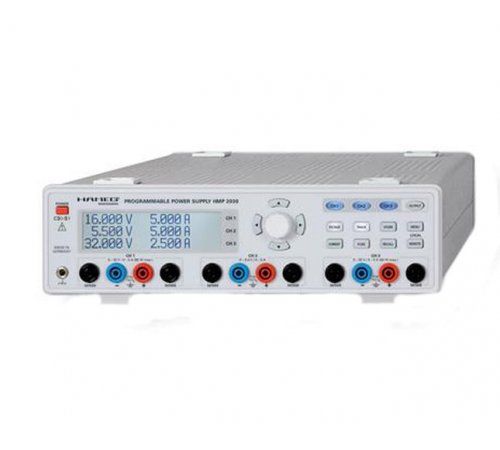

Hameg HMP2030 Programmable 3 Channel Power Supply
3 canales Número de canales
0 - 32 V por canal Tensión de salida máxima
0 - 5 A por canal Corriente de salida máxima
188 W Potencia total máxima
USB, RS-232, GPIB (opcional) Interfaces de comunicación
| Atributo | Valor |
|---|---|
| Número de canales | 3 canales |
| Tensión de salida máxima | 0 - 32 V por canal |
| Corriente de salida máxima | 0 - 5 A por canal |
| Potencia total máxima | 188 W |
| Interfaces de comunicación | USB, RS-232, GPIB (opcional) |
| Pantalla | Pantalla LCD retroiluminada |
| Regulación de tensión | ≤ 0,01% + 2 mV |
| Regulación de corriente | ≤ 0,01% + 2 mA |
| Tensión de rizado y ruido | ≤ 0,5 mVpp |
| Tensión de alimentación | 115/230 V CA, 50/60 Hz |
Hameg HMP2030 Programmable 3 Channel Power Supply Options:
- HMP2030 - HO730 - Dual-Interface Ethernet/USB
- HMP2030 - HO740 - Interface IEEE-488 (GPIB), galvanically isolated
- HMP2030 - HZ10S - 5 x silicone test lead (measurement connection in black)
- HMP2030 - HZ10R - 5 x silicone test lead (measurement connection in red)
- HMP2030 - HZ10B - 5 x silicone test lead (measurement connection in blue)
- HMP2030 - HZ13 - Interface cable (USB) 1.8m
- HMP2030 - HZ14 - Interface cable (serial) 1:1
- HMP2030 - HZ42 - 2RU 19" Rackmount Kit
- HMP2030 - HZ72 - GPIB-Cable 2m
| Model | HMP2030 |
|---|
Hameg HMP2030 programmable 3 channel high-performance power supply with an operating performance of 188 watt. Output power is displayed in real time and safety shutdown is also available.
In the parallel operation mode channels can be bundled to achieve higher currents and the integration power management function also ensures intelligent power distribution over each channel in this operation mode. Also the V/I tracking function is also available in this mode.
Key Features
- 2x0?32V/0?5A 1x0?5.5V/0?5A, 188W max
- 188W output power realized by intelligent power management
- Low residual ripple: ?150?Vrms due to linear post regulators
- High setting- and read-back resolution of 1mV/0.1mA
- Galvanically isolated, earth-free and short circuit protected output channels
