HD Electric PRM-100 Options:
- PRM-100 - R-45 - Add-On Resistor Stick (Pair Required)
- PRM-100 - 025-OLPS-5 - PVC/Brass Overhead Hook Probe
- PRM-100 - 025-OLPS-6 - PVC/Brass Overhead Pigtail Probe
- PRM-100 - CM-100/V - Metal Carrying Case
- PRM-100 - GCP-1 - General Purpose Insulated Probe
- PRM-100 - ASP-15/25 - Adapter Bushing, 15 & 25 kV Class
- PRM-100 - ASP-35U - Adapter Bushing, 34.5 kV (Universal) Class
- PRM-100 - EA-15/25 - Loadbreak Elbow Adapter, 15 & 25 kV Class
- PRM-100 - PT-5000B - Proof Tester with 5,000 Volt Output
- PRM-100 - S-4H - 4' Fixed Length Fiberglass Hotstick
- PRM-100 - S-6H - 6' Fixed Length Fiberglass Hotstick
- PRM-100 - HSA-2500 - Universal Hotstick Adapter (Shotgun)
| Model | PRM-100 |
|---|

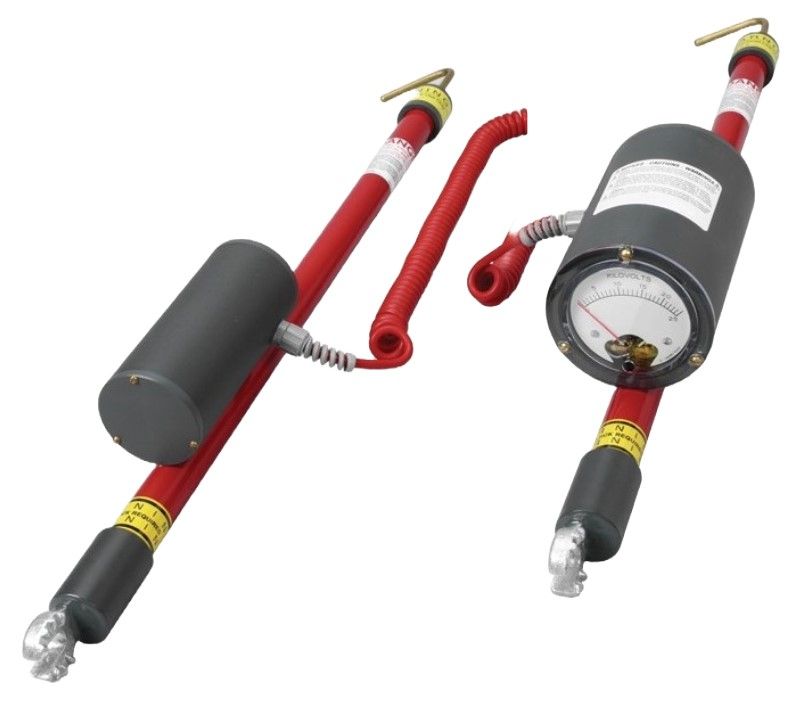

HD Electric PRM-100 Phase Rotation Meter
The HD Electric PRM-100 Phase Rotation Meter is a versatile and easy-to-use device designed for high-voltage applications. It is a dual-range instrument, capable of measuring phase rotation up to 45kV. The mater features a large, easy-to-read 3" meter face and strain relief fittings to reduce cable damage. The PRM-100 can be used in overhead applications with the included probes, or underground by adding the appropriate underground probes for your application.
HD Electric PRM-100 Phase Rotation Meter is used to determine which is the leading phase of any two phases of a three-phase conductor system. It is a dual range, 0-5kV and 0-15kV, device that can be used as high as 45kV when optional resistor sticks (R-45) are added. It consists of two sticks with a connecting cord and ground lead. Phase rotation is determined by taking readings on the two phases; first in one direction, then the other. The meter will indicate which phase is leading and which is lagging.
Specifications for the HD Electric PRM-100 Phase Rotation Meter Include:
| Operating Frequency | 50/60Hz |
| Voltage Rating | 0 €“5kV / 5 €“15kV / 15 €“45kV |
