Jofra (Ametek) RTC159B Options:
- RTC159B - 115 - Power Supply 115VAC (US deliveries 60 Hz only)
- RTC159B - 230 - Power Supply 230VAC
- RTC159B - A - Mains Power Cable: European, 230V
- RTC159B - B - Mains Power Cable: USA/Canada, 115V
- RTC159B - C - Mains Power Cable: UK, 240V
- RTC159B - D - Mains Power Cable: South Africa, 220V
- RTC159B - E - Mains Power Cable: Italy, 220V
- RTC159B - F - Mains Power Cable: Australia, 240V
- RTC159B - G - Mains Power Cable: Denmark, 230V
- RTC159B - H - Mains Power Cable: Switzerland, 220V
- RTC159B - I - Mains Power Cable: Israel, 230V
- RTC159B - NON - No insert selected (standard)
- RTC159B - UNX - 1 x Undrilled Insert
- RTC159B - XXX - 1 x Single hole insert
- RTC159B - MXX - 1 x Multi hole insert
- RTC159B - SIX - Set of 3 Imperial multi hole inserts, covering holes from 1/8" to 7/16"
- RTC159B - SMX - Set of 4 Metric multi hole inserts, covering holes from 3mm to 13mm
- RTC159B - SIM - Set of 9 Imperial inserts, covering holes from 1/8" to 5/8"
- RTC159B - SMM - Set of 14 Metric inserts, covering holes from 3mm to 16mm
- RTC159B - DLC - Dynamic Load Compensation sensor (DLC159)
- RTC159B - R14 - STS-200 Reference sensor, Dia. 4mm, Length 192mm (STS200A917EH)
- RTC159B - R15 - STS-200 Reference sensor, Dia. 1/4", Length 192mm (STS200B917EH)
- RTC159B - F - Traceable Calibration Certificate (standard)
- RTC159B - H - Accredited Calibration Certificate - ISO17025
- RTC159B - EA - Full EURAMET Calibration Certificate - ISO17025
- RTC159B - FS - Traceable System Calibration Certificate (B & C model only)
- RTC159B - HS - Accredited System Calibration Certificate (B & C model only) - ISO17025
- RTC159B - EAS - Full EURAMET System Calibration Certificate (B & C model only) - ISO17025
- RTC159B - EASD - Full EURAMET System Calibration Certificate with DLC (B & C model only) - ISO17025
- RTC159B - CT - Solid Protective Carrying case with trolley
- RTC159B - TR - Solid Protective Carrying case with trolley & Support rod set
| Model | RTC159B |
|---|

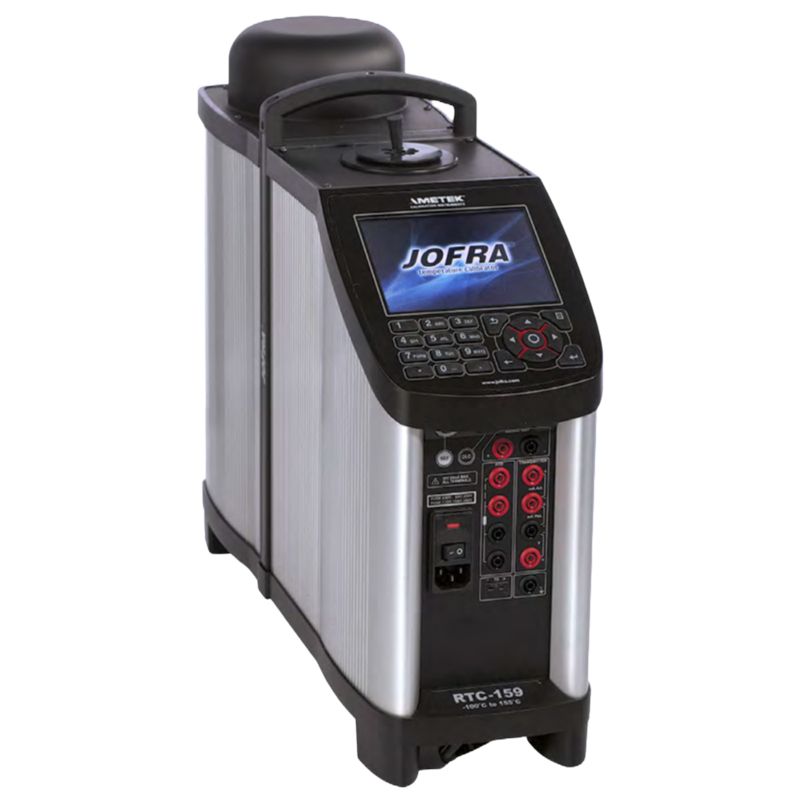

Jofra (Ametek) RTC159B Super Cooler Dry Block -100C to 140C
The Jofra (Ametek) RTC159B Super Cooler Dry Block is the most versatile temperature calibrator available with a temperature range that makes it ideal for use in the health care, medical, pharmaceutical, biotechnology and food industries. With it's extremely wide temperature reach, the RTC-159 can be used in many applications where either high heat or extreme cooling is needed. Intuitive to use and easy to run, the RTC159B is equipped with a large informative, easy-to-read color display. With its high-tech design Jofra (Ametek) RTC159B Super Cooler Dry Block ensures durability and lasting quality. Lightweight and easy-to-carry, the RTC-159 is easy to move from job to job.
Jofra (Ametek) RTC159B Super Cooler Dry Block features Ametek's active dualzone heating technology. Each heating zone is independently controlled for precision temperature calibration. This design eliminates the need for extra insulation of sensors-under-test and makes it possible to calibrate any type of mechanical sensors. RTC159B provides fastest temperature calibration, saving production downtime and general calibration costs. RTC159B communicates via an easy-to-use USB port. Jofra (Ametek) RTC159B Super Cooler Dry Block can be user-programmed from the keyboard for fully-automatic sensor calibrations. Once the unit is programmed, the instrument is self-operating and performs the configured calibration routine. All calibration data and results are stored and can be read on the display.
Specifications for the Jofra (Ametek) RTC159B Super Cooler Dry Block -100C to 140C Include:
| Temperature range | -100 to 155 °C (-148 to 311 °F) |
| Accuracy | ±0.06 °C / ±0.11 °F (With external STS ref. sensor) |
| Stability | ± 0.03 °C / ± 0.054 °F |
| Resolution | 1 ° or 0.1 ° or 0.01 ° or 0.001 ° (All temperatures) |
