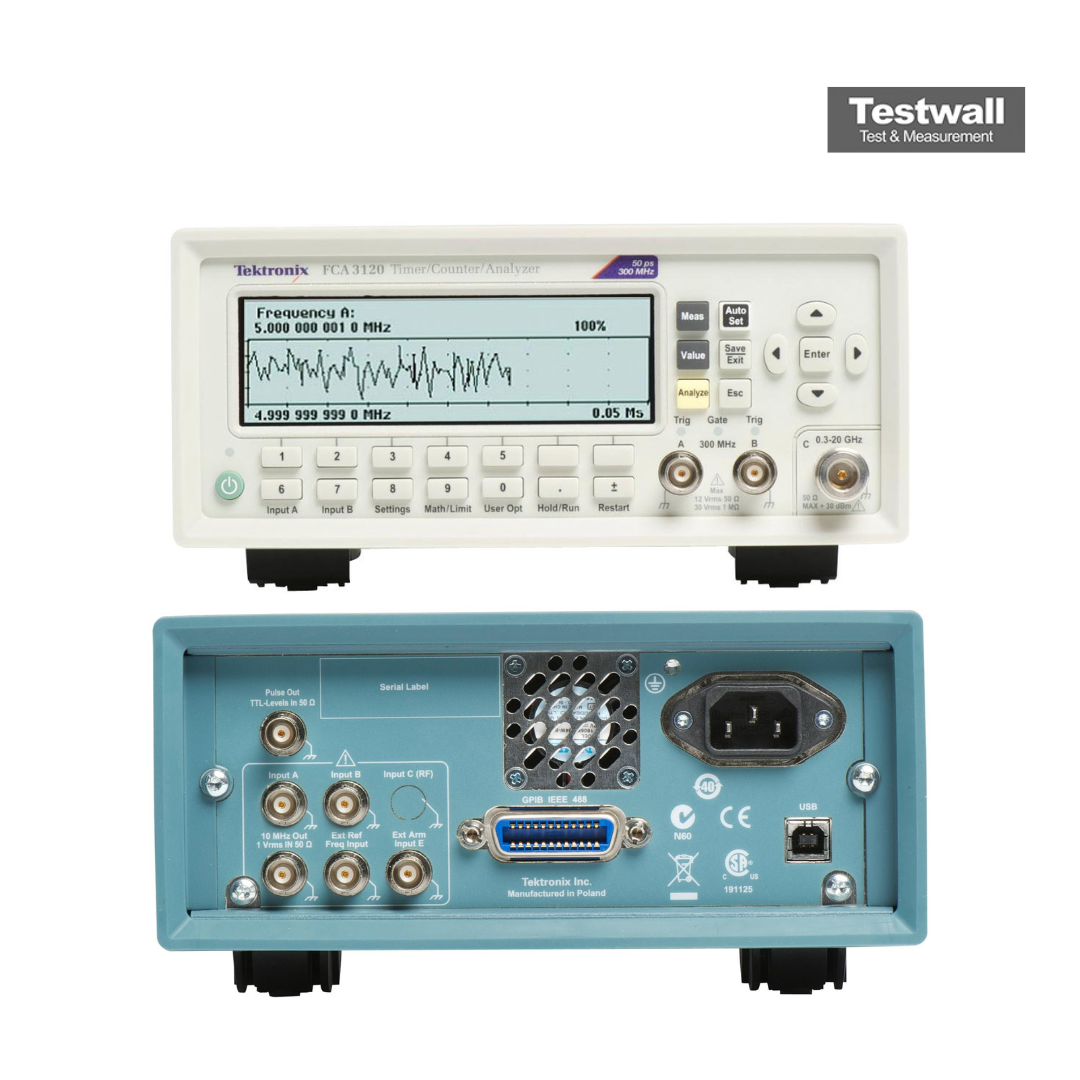

Tektronix FCA3120
| Atributo | Valor |
|---|---|
| Frecuencia máxima de medición | 20 GHz |
| Resolución de frecuencia | 12 dígitos por segundo |
| Número de canales | 3 canales (2 canales de RF + 1 canal de frecuencia base) |
| Rango de entrada del canal 1 y 2 | 100 MHz – 20 GHz |
| Rango de entrada del canal 3 | DC – 400 MHz |
| Sensibilidad de entrada | -30 dBm típico a frecuencias de hasta 20 GHz |
| Tiempo de puerta mínimo | 100 ns |
| Precisión de la base de tiempo | ±1 ppm (envejecimiento anual con oscilador de referencia interno) |
| Interfaz de comunicación | USB, GPIB, RS-232 |
| Alimentación eléctrica | 100 – 240 V CA, 50/60 Hz |
Tektronix FCA3120 Options:
- FCA3120 - MS - Medium-stability Oven Time Base
- FCA3120 - HS - High-stability Oven Time Base
- FCA3120 - RP - Rear-panel Connectors
- FCA3120 - A0 - Power Plug, North America
- FCA3120 - A1 - Power Plug, Universal Euro
- FCA3120 - A2 - Power Plug, United Kingdom
- FCA3120 - A3 - Power Plug, Australia
- FCA3120 - A5 - Power Plug, Switzerland
- FCA3120 - A6 - Power Plug, Japan
- FCA3120 - A10 - Power Plug, China
- FCA3120 - A11 - Power Plug, India
- FCA3120 - A12 - Power Plug, Brazil
- FCA3120 - C3 - Calibration Service 3 Years
- FCA3120 - C5 - Calibration Service 5 Years
- FCA3120 - D1 - Calibration Data Report
- FCA3120 - R5 - Repair Service 5 Years
- FCA3120 - SILV400 - Standard Warranty Extended to 5 Years (FCA3020 and FCA3120)
| Model | FCA3120 |
|---|
Tektronix Analyzer

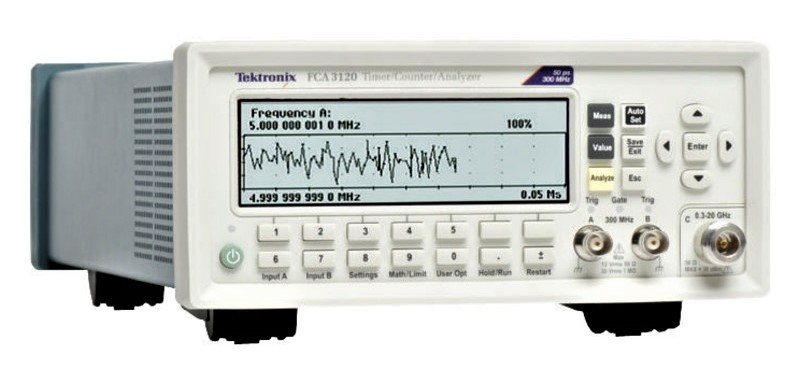

Tektronix FCA3120 Frequency Counter / Analyzer, 20 GHz, 3 Ch.
The Tektronix FCA3120 Timer/Counter/Analyzer Series pack many diffe functions into one feature-rich instrument. With industry-leading frequency and time resolution, the FCA Series comes standard with deep internal memory and a fast data transfer rate of 250k Samples/s to internal memory. In addition, the multi-parameter display shows auxiliary measurements alongside your main measurement to provide you with the results you need at a glance. With the industry's most comprehensive analysis modes, including measurement statistics, histograms, and trend plots, you have the tools you need to quickly and accurately analyze your signal.
Features and Specifications of the Tektronix FCA3120 includes:
- 20 GHz Timer
- 3 Input Channels
- 50 ps Single-shot Time Resolution
- 12 Digit/s Frequency Resolution
- 0.001 ° Phase Resolution
- 3 mV or better Voltage Resolution
- Optional 5×10 €“8 High-stability Oven Time Base
- 250k Sample/s Data Transfer Rate to Internal Memory(Up to 3.75M samples stored)
- Up to 15k Sample/s Data Transfer Rate over USB/GPIB Bus(Block mode)
- Up to 650 Individually Triggered Measurements/s
- Automated Measurements: Frequency, Period, Ratio, Time Interval, Time Interval Error, Pulse Width, Rise/Fall
- Time, Phase Angle, Duty Cycle, Maximum Voltage, Minimum Voltage, Peak-to-Peak Voltage
- Multi-parameter Display
- Trend Plot Mode
- Measurement Statistics Mode
- Histogram Mode
- Allan Deviation
- Zero Dead-time Frequency/Period Measurements
- Programmable Pulse Output from 0.5 Hz to 50 MHz
- Optional Rear-panel Inputs
- USB Device and GPIB Ports on Rear Panel for Quick PC Connectivity
- GPIB Interface Supports Full SCPI-compatible Programmability and offers an Emulation Mode for Plug-and-Play Replacement in Existing ATE Systems
- External Arming Input
- 10 MHz Reference Oscillator Output
- Includes National Instrument's LabVIEW SignalExpress TE Limited Edition Software for Connecting Your Bench
- Optional TimeView Software Available for Modulation Domain Analysis
