Keysight (Agilent)

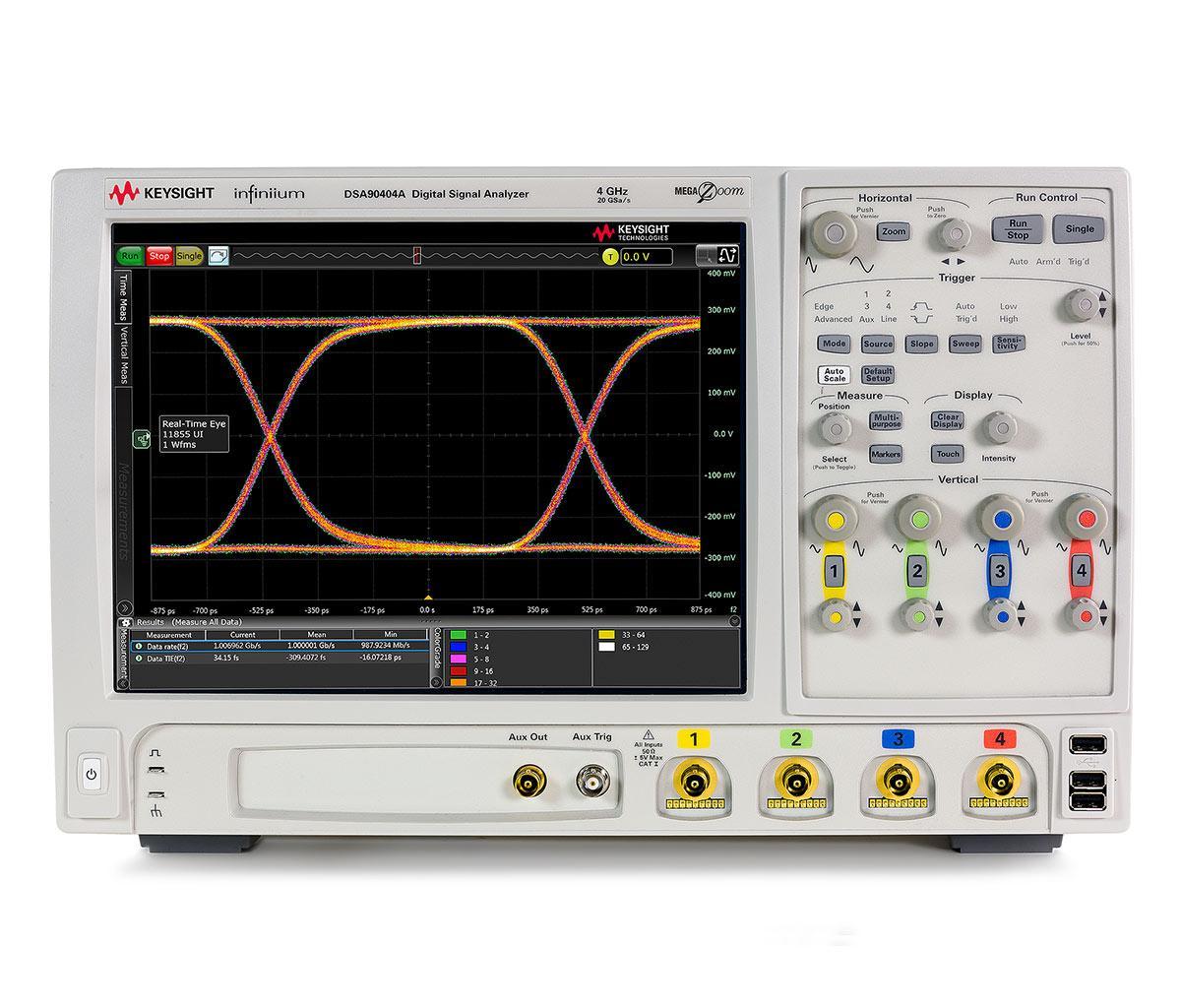

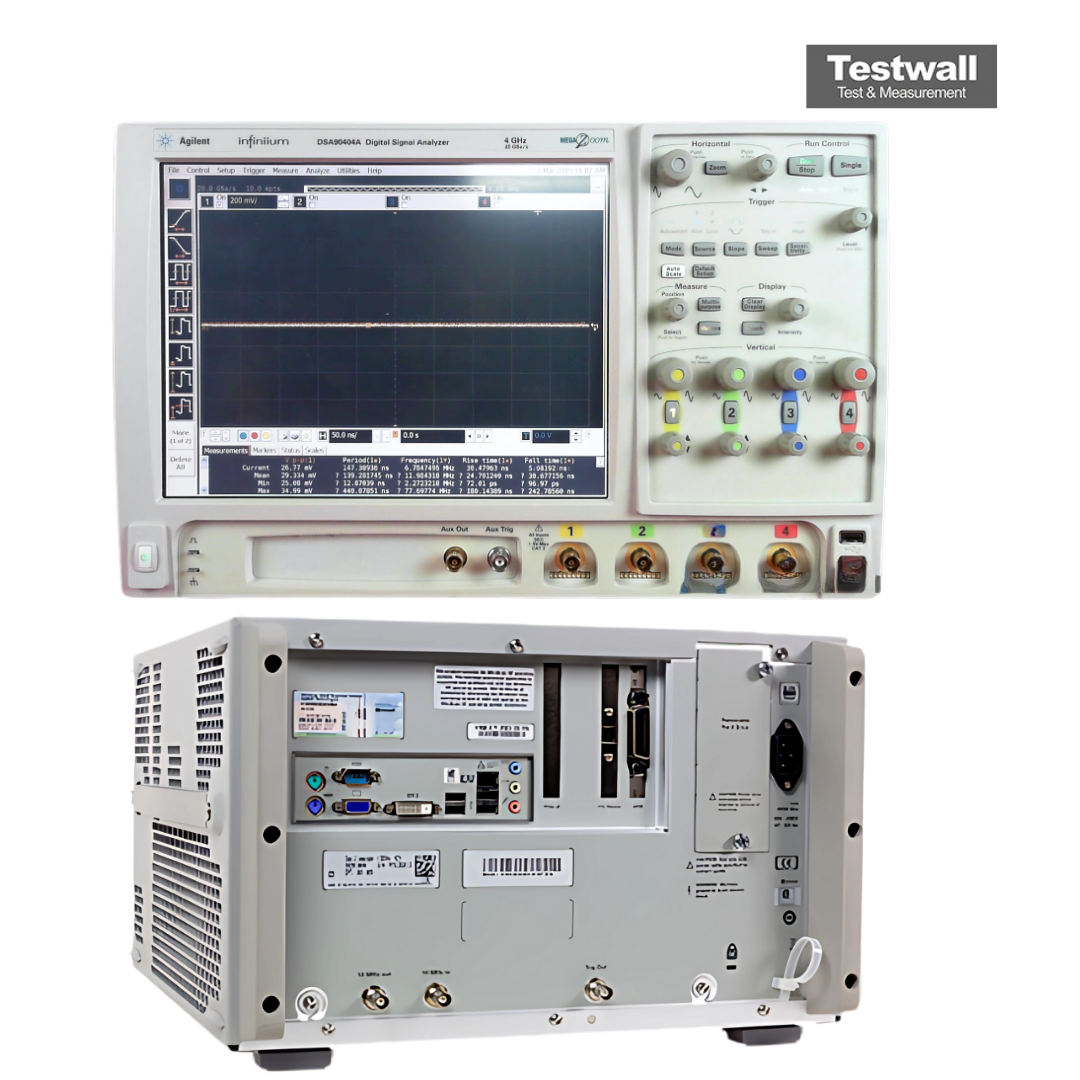

Keysight Technologies DSA90404A 4 Ch 4 GHz Digital Signal Analyzer
4 Ch 4 GHz Digital Signal Analyzer
4 GHz Ancho de banda analógico
4 Número de canales
20 GSa/s Tasa de muestreo máxima
Hasta 2 Gpuntos por canal Profundidad de memoria
8 bits Resolución vertical
| Atributo | Valor |
|---|---|
| Ancho de banda analógico | 4 GHz |
| Número de canales | 4 |
| Tasa de muestreo máxima | 20 GSa/s |
| Profundidad de memoria | Hasta 2 Gpuntos por canal |
| Resolución vertical | 8 bits |
| Sensibilidad vertical | 1 mV/div a 1 V/div |
| Base de tiempos (rango) | 5 ps/div a 20 s/div |
| Precisión de la base de tiempos | ±2 ppm |
| Impedancia de entrada | 50 Ω |
| Pantalla | Pantalla táctil LCD de 15 pulgadas de alta resolución |
Keysight Technologies DSA90404A 4 Ch 4 GHz Digital Signal Analyzer Options:
- DSA90404A - 002 - EZJIT Jitter Analysis Software (E2681A)
- DSA90404A - 003 - High Speed Serial Data Analysis Software (E2688A)
- DSA90404A - 004 - EZJIT Plus Jitter Analysis Software (N5400A)
- DSA90404A - 005 - Noise Reduction and Bandwidth Control (N5403A)
- DSA90404A - 006 - My Infiniium Integration Package (E2699A)
- DSA90404A - 007 - I2C and SPI Low-speed Data Analysis (N5391A)
- DSA90404A - 008 - CAN Serial Data Analysis Software (N5402A)
- DSA90404A - 009 - InfiniiScan Event Identification Software (N5415A)
- DSA90404A - 010 - Infiniium User Defined Function Software (N5430A)
- DSA90404A - 011 - Infiniium Application Remote Program Interface Software (N5452A)
- DSA90404A - 020M - Acquisition Memory 10 MPts to 20 MPts (N5472A)
- DSA90404A - 021 - Ethernet Electrical Performance Validation and Compliance Software (N5392A)
- DSA90404A - 022 - PCI Express Electrical Performance Validation and Compliance Software (N5393A)
- DSA90404A - 023 - HDMI Electrical Performance Validation and Compliance Software (N5399A)
- DSA90404A - 024 - Fully Buffered DIMM Validation and Compliance Software (N5409A)
- DSA90404A - 025 - Fibre Channel Validation and Compliance Software (N5410A)
- DSA90404A - 026 - Serial ATA Electrical Performance Validation and Compliance Software (N5411A)
- DSA90404A - 027 - Serial Attached SCSI Electrical Performance Validation and Compliance Software (N5412A)
- DSA90404A - 028 - DisplayPort Validation and Compliance Software (U7232A)
- DSA90404A - 029 - USB 2.0 Validation and Compliance Software (E2683A)
- DSA90404A - 030 - XAUI Electrical Validation and Compliance Software with 10GBASE-CX4, CPRI, OBSAI, and Serial RapidIO Support (N5431A)
- DSA90404A - 031 - DDR1 Validation and Compliance Software (U7233A)
- DSA90404A - 032 - DDR2 Validation and Compliance Software (N5413A)
- DSA90404A - 033 - DDR3 Validation and Compliance Software (U7231A)
- DSA90404A - 50M - Acquisition Memory 20 MPts to 50 MPts (N5472B)
- DSA90404A - 100 - Acquisition Memory 50 MPts to 100 MPts (N5472C)
- DSA90404A - 200 - Acquisition Memory 100 MPts to 200 MPts (N5472D)
- DSA90404A - 500 - Acquisition Memory 200 MPts to 500 MPts (N5472E)
- DSA90404A - 01G - Acquisition Memory 500 MPts to 1 GPts (N5472F)
- DSA90404A - 801 - 80 GBytes or greater removable hard disk drive
- DSA90404A - 803 - Additional 2 GByte CPU Memory (4 GByte total)
- DSA90404A - 805 - GPIB card
- DSA90404A - 807 - High Impedance Adapter (includes one 10073C passive probe)
- DSA90404A - 821 - Precision BNC to SMA adaptors (qty 2)
- DSA90404A - 1CM - Rackmount Kit (N5470A)
- DSA90404A - A6J - ANSI Z540 compliant calibration
- DSA90404A - 1A7 - ISO17025 compliant calibration
| Model | DSA90404A |
|---|
El Keysight (Agilent) DSA90404A es un osciloscopio Infiniium de 4 canales en tiempo real con 4 GHz de ancho de banda, ampliable a 13 GHz. Ofrece 20 GSa/s de muestreo, 1 Gpt de memoria y bajo ruido para pruebas precisas.
Incluye de-embedding por hardware, decodificación serie y análisis de jitter.
Testwall puede suministrar el Keysight (Agilent) DSA90404A usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza fiabilidad. Contáctenos para calibración o reparación del Keysight (Agilent) DSA90404A.
