Keysight (Agilent)

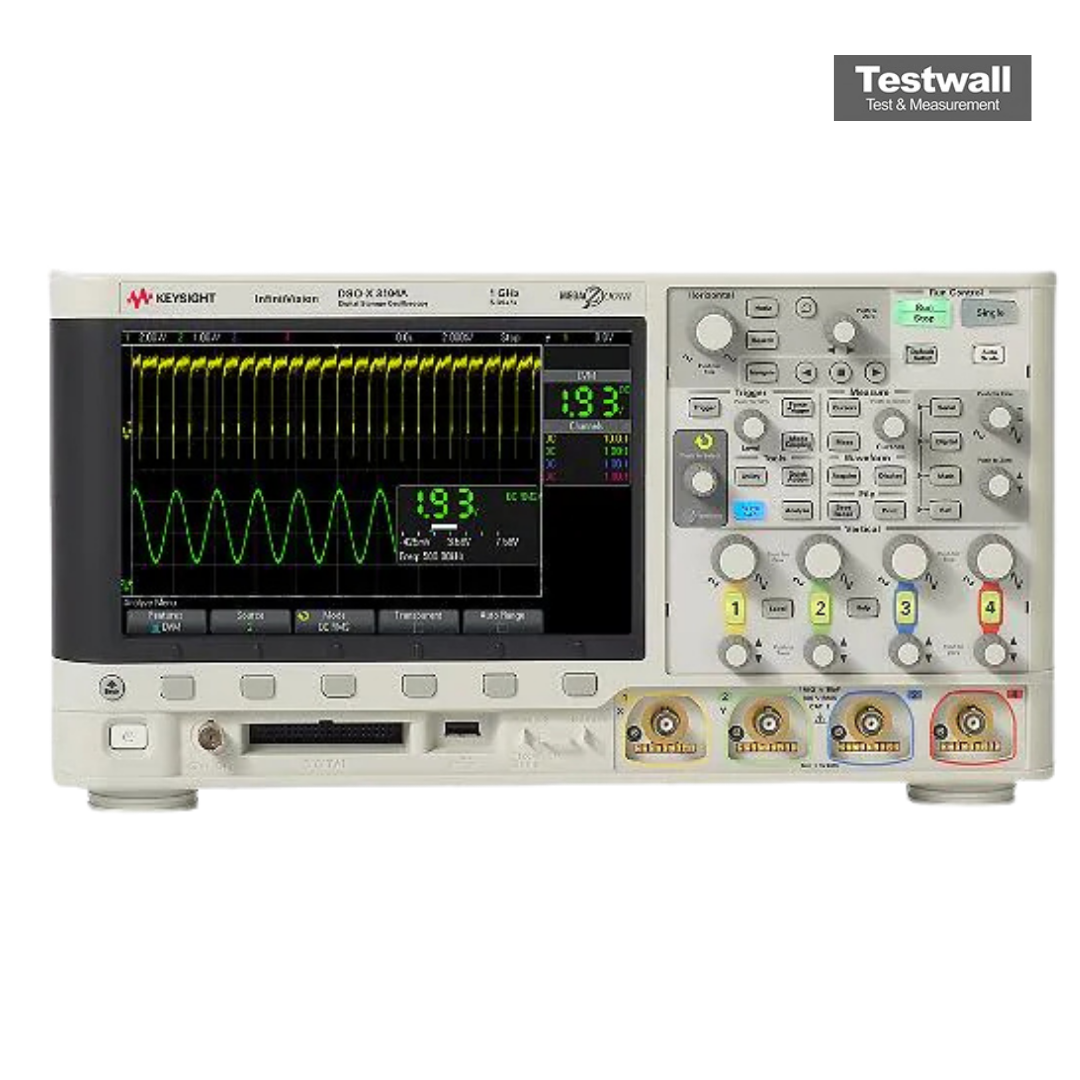

Keysight (Agilent) DSOX-3104A
4 Channel 1GHz 5GS/s Digital Oscilloscope
1 GHz Ancho de banda
4 canales analógicos Número de canales
5 GSa/s Tasa de muestreo máxima
4 Mpuntos Profundidad de memoria
1.000.000 formas de onda por segundo Tasa de actualización de forma de onda
| Atributo | Valor |
|---|---|
| Ancho de banda | 1 GHz |
| Número de canales | 4 canales analógicos |
| Tasa de muestreo máxima | 5 GSa/s |
| Profundidad de memoria | 4 Mpuntos |
| Tasa de actualización de forma de onda | 1.000.000 formas de onda por segundo |
| Resolución vertical | 8 bits |
| Tamaño de pantalla | 8,5 pulgadas WVGA (800 x 480 píxeles) |
| Rango de base de tiempo | 1 ns/div a 50 s/div |
| Sensibilidad vertical | 1 mV/div a 5 V/div |
| Interfaces de conectividad | USB, LAN (LXI), GPIB (opcional) |
Keysight (Agilent) DSOX-3104A 4 Channel 1GHz 5GS/s Digital Oscilloscope Options:
- DSOX-3104A - DSOX3ADVMATH - Advanced Math Measurement Application
- DSOX-3104A - DSOX3AERO - A/D Serial Triggering And Analysis (Mil-Std 1553/Arinc 429)
- DSOX-3104A - DSOX3AUDIO - Audio Serial Triggering And Analysis (I S)
- DSOX-3104A - DSOX3AUTO - Automotive Serial Triggering And Analysis (Can, Lin)
- DSOX-3104A - DSOX3COMP - Computer Serial Triggering And Analysis (Rs232/422/485/Uart)
- DSOX-3104A - DSOX3EMBD - Embedded Serial Triggering And Analysis (I C, Spi)
- DSOX-3104A - DSOX3FLEX - Flexray Triggering And Analysis
- DSOX-3104A - DSOX3MASK - Mask Limit Testing Application
- DSOX-3104A - DSOX3MEMUP - 4Mpts Memory Upgrade
- DSOX-3104A - DSOX3MSO - Mso Upgrades (100-500 MHZ Models)
- DSOX-3104A - DSOX3PWR - Power Measurements
- DSOX-3104A - DSOX3SGM - Segmented Memory Acquisition
- DSOX-3104A - DSOX3VID - Video Triggering And Analysis Application
- DSOX-3104A - DSOX3WAVEGEN - Wavegen Built-In Function And Arbitrary Waveform Generator
- DSOX-3104A - DSOXDVM - Integrated Digital Voltmeter
- DSOX-3104A - DSOXEDK - Educators Training Kit
- DSOX-3104A - DSOXGPIB - Gpib Connection Module
- DSOX-3104A - DSOXLAN - Lan/Vga Module
- DSOX-3104A - MSOX3000-001 - Wavegen 20 MHZ Function/Arbitrary Waveform Generator
- DSOX-3104A - MSOX3000-040 - 4Mpts Memory Upgrade
- DSOX-3104A - MSOX3000-232 - Computer Serial Triggering And Analysis (Rs232/Uart)
- DSOX-3104A - MSOX3000-805 - Lan/Vga Module
- DSOX-3104A - MSOX3000-806 - Gpib Module
- DSOX-3104A - MSOX3000-AER - A/D Serial Triggering And Analysis (Mil-Std 1553/Arinc 429)
- DSOX-3104A - MSOX3000-AMS - Automotive Serial Triggering And Analysis (Can, Lin)
- DSOX-3104A - MSOX3000-DVM - Integrated Digital Voltmeter
- DSOX-3104A - MSOX3000-EDK - Educators Training Kit
- DSOX-3104A - MSOX3000-FLX - Flexray Triggering And Analysis
- DSOX-3104A - MSOX3000-LMT - Limit Mask Testing
- DSOX-3104A - MSOX3000-LSS - Embedded Serial Triggering And Analysis (I C, Spi)
- DSOX-3104A - MSOX3000-MAT - Advanced Math Measurement Application
- DSOX-3104A - MSOX3000-PWR - Power Analysis Application
- DSOX-3104A - MSOX3000-SGM - Segmented Memory Application
- DSOX-3104A - MSOX3000-SND - Audio Serial Triggering And Analysis (I S)
- DSOX-3104A - MSOX3000-VID - Video Triggering And Analysis
| Model | DSOX-3104A |
|---|
El Keysight (Agilent) DSOX-3104A es un osciloscopio digital de 4 canales y 1GHz con tasa de muestreo de 5GS/s, equipado con una pantalla WVGA de 8,5 pulgadas y tecnología MegaZoom IV para memoria profunda y actualización rápida de formas de onda.
Combina osciloscopio, analizador lógico, generador de funciones y analizador de protocolos con ajuste automático de memoria para un rendimiento óptimo.
Testwall puede suministrar el Keysight (Agilent) DSOX-3104A usado, completamente probado. Con soporte experto y entrega global, Testwall asegura instrumentos de alto rendimiento con fiabilidad superior. Contáctenos directamente si necesita calibración o reparación del Keysight (Agilent) DSOX-3104A.
