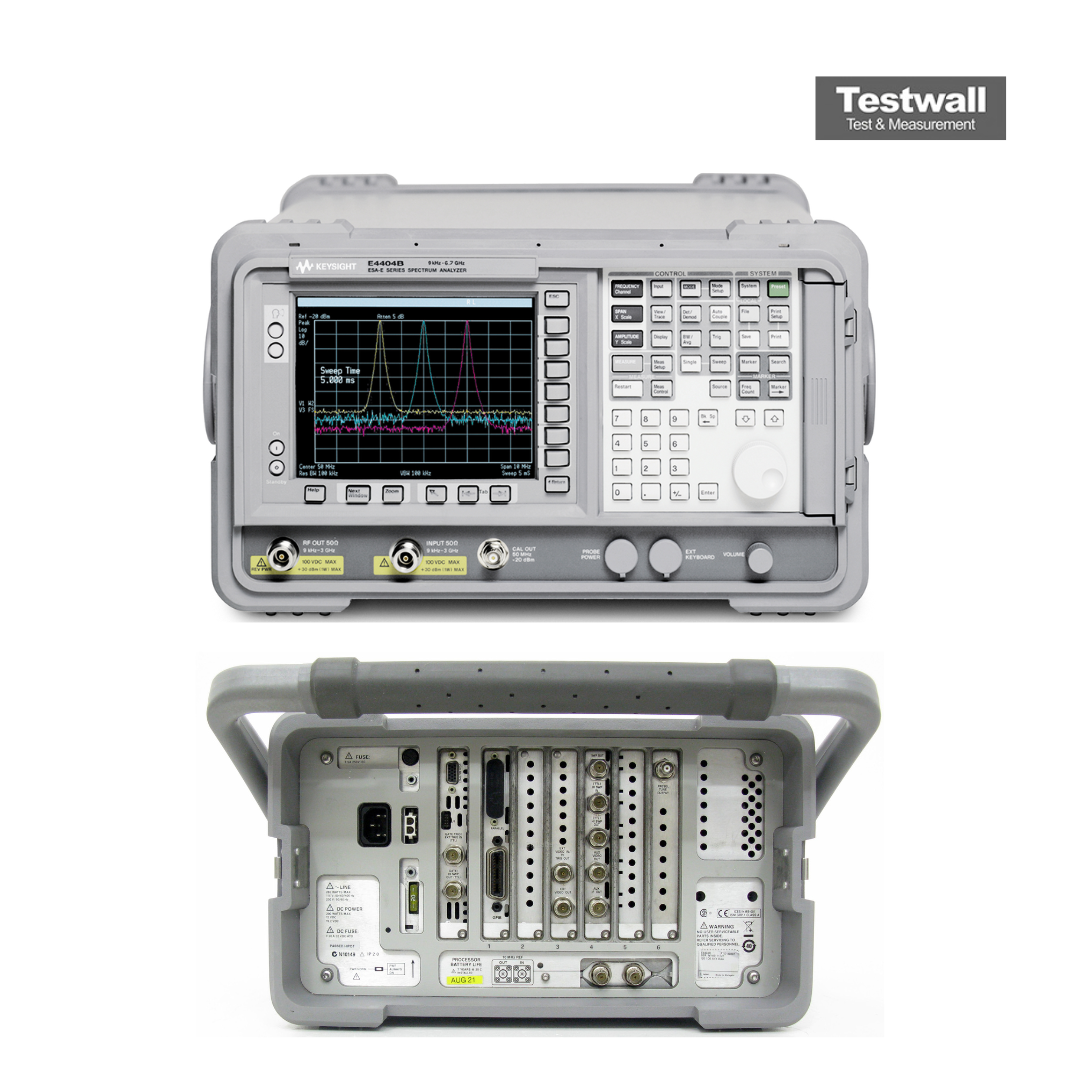

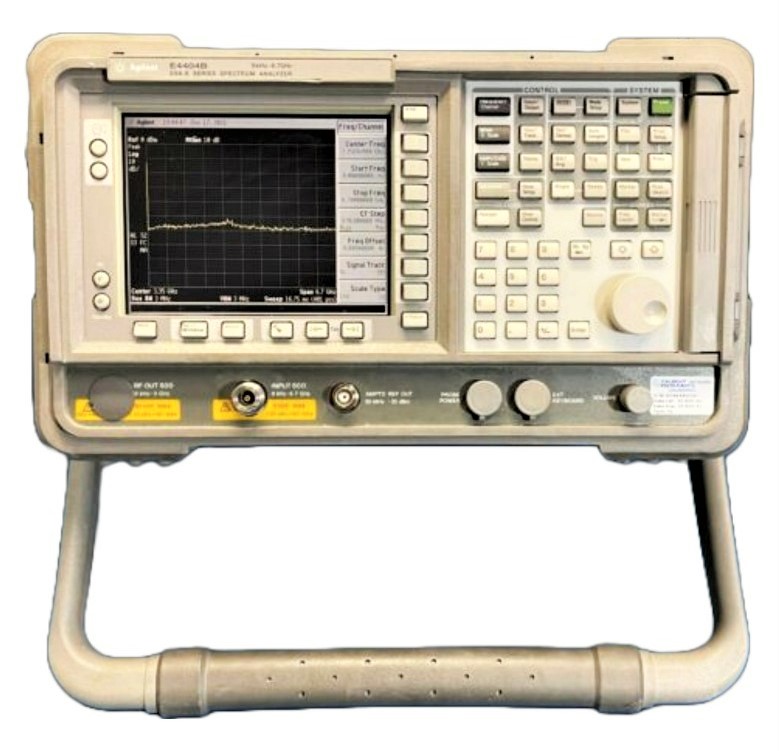

Keysight (Agilent) E4404B
| Atributo | Valor |
|---|---|
| Rango de Frecuencia | 100 Hz - 6,7 GHz |
| Rango de Amplitud | -147 dBm a +30 dBm |
| Ancho de Banda de Resolución (RBW) | 1 Hz - 5 MHz |
| Ancho de Banda de Video (VBW) | 1 Hz - 3 MHz |
| Figura de Ruido Mostrado Promedio (DANL) | -147 dBm (típico) a 1 GHz |
| Distorsión Armónica Total | -80 dBc (típico) |
| Impedancia de Entrada | 50 Ohmios |
| Potencia Máxima de Entrada | +30 dBm (1 W) |
| Pantalla | Pantalla de color TFT de 6,5 pulgadas |
| Alimentación Eléctrica | 100 - 240 V CA, 50/60 Hz |
Keysight (Agilent) E4404B Options:
- E4404B - STD - Standard express analyzer (includes fast time domain sweep, FM demodulation, and GPIB connection)
- E4404B - STG - Standard express analyzer with tracking generator
- E4404B - COM - Communications express analyzer (includes additional options to demodulate select wireless standards)
- E4404B - 1D5 - High stability frequency reference
- E4404B - 1DR - Narrow resolution bandwidth (adds 10 Hz - 300 Hz RBW and 200 Hz EMI BW)
- E4404B - 1DN - Tracking generator
- E4404B - 120 - Enhanced wide offset phase noise and ACPR dynamic range
- E4404B - 1D6 - Time gating
- E4404B - AYX - Fast time domain sweep
- E4404B - AYQ - Quasi-peak detector (requires Option 1DR; also includes FM demodulation)
- E4404B - BAA - Hz scale units
- E4404B - BAB - 50 Ω APC 3.5 (m) front panel RF input connector
- E4404B - B7D - Communications test / burst trigger capability
- E4404B - B7E - RF burst trigger
- E4404B - UKB - DC coupled input / 50 Vdc AC coupled
- E4404B - 060 - Class B EMI compliance
- E4404B - A4H - GPIB interface and parallel interface
- E4404B - 1AX - Serial (RS-232) and parallel interface
- E4404B - B72 - Extended internal data storage (8 MB)
| Model | E4404B |
|---|
RENT AGILENT / HP E4404B (call for availability)
The Agilent / HP E4404B Spectrum Analyzer is part of Agilent's general purpose line of ESA spectrum analyzers which can offer the ideal balance between economy and performance.
Depending on your application, the Agilent / HP E4404B Spectrum Analyzer may be fitted with application software such as Phase Noise, Noise Figure, GSM/EDGE, cdmaOne, Modulation Analysis, Blue Tooth, Cable Fault, and more.
With the free IntuiLink software you can conveniently save and document your results by linking the ESA to MS Word or Excel applications. In addition, the IntuiLink software provides a simple programming interface to the ESA spectrum analyzer, allowing you to easily write macros or functions with Windows applications to control the ESA spectrum analyzer.
Features and Specifications of the Agilent / HP E4404B Spectrum Analyzer include:
- Maximum Frequency: 6.7 GHz
- Minimum Frequency: 9 kHz
- 0.4 dB overall amplitude accuracy
- +16 dBm TOI
- -167 dBm DANL, with internal preamp
- 10 MHz demodulation bandwidth
- 1 Hz narrow resolution bandwidth (optional)
- 1 ms sweep time (50 ns 0 span)
- Variable sweep (trace points) from 2 to 8192
- Segmented sweep for up to 32 discontinuous spans in one sweep
- Rugged and portable for lab grade performance in the field
- 5 minute warm-up to guaranteed measurement accuracy
- Amplitude correction
- Automatic background alignment
- Tracking Generator (optional)
- Includes Power Suite 1-button power measurements
The PowerSuite allows one button measurements for:
- Channel power
- Occupied bandwidth
- Adjacent channel power (ACP)
- Multi-carrier ACP
- Power statistics (CCDF) (not available on the basic analyzer)
- Harmonic distortion
- Burst power
- Intermodulation distortion (TOI)
- Spurious emissions
- Spectrum emissions mask
