Keysight (Agilent) E5055A
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 10 MHz a 1,6 GHz |
| Número de puertos | 4 puertos |
| Tipo de analizador | Analizador de señal de fase de ruido |
| Suelo de ruido de fase | -185 dBc/Hz (típico) |
| Impedancia de entrada | 50 Ω |
| Rango de potencia de entrada | -20 dBm a +30 dBm |
| Rango de desplazamiento de frecuencia | 0,01 Hz a 100 MHz |
| Interfaz de comunicación | GPIB, LAN, USB |
| Sistema operativo | Windows XP Embedded |
| Dimensiones (An x Al x Pr) | 426 mm x 222 mm x 498 mm |
Keysight (Agilent) E5055A Options:
- E5055A - 100 - Standard phase noise option
- E5055A - 200 - Enhanced low phase noise option
- E5055A - 172 - GPIB interface
- S963105B - Core software for E5055A (mandatory, includes Phase noise, AM noise, and Baseband noise measurements, Cross Correlation = 1)
- S963015B - SSA-X Signal Source Analyzer advanced features for E5055A (Cross Correlation 2 to 100,000, Transient measurements, VCO characterization measurements, Spectrum monitor 15 MHz span)
- S963905B - Spectrum analysis for E5055A (full span, full function spectrum analysis)
- S96325B - Pulsed-RF measurements for SSA-X Signal Source Analyzer (Pulsed-RF AM/PM noise measurements)
| Model | E5055A |
|---|

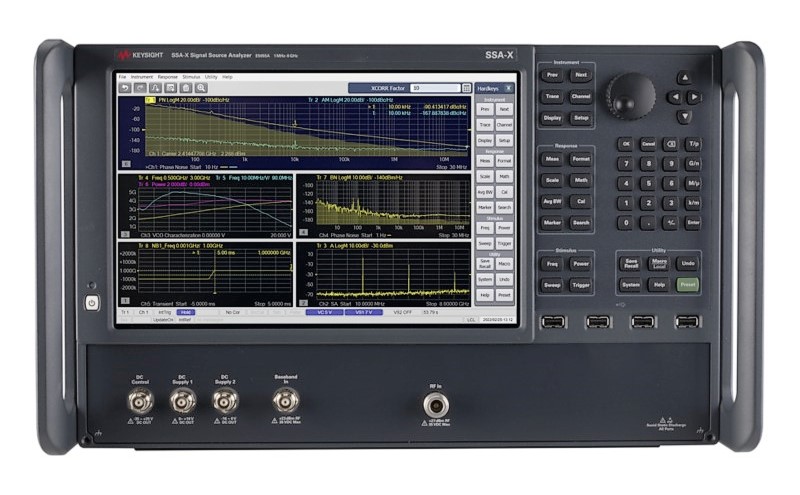

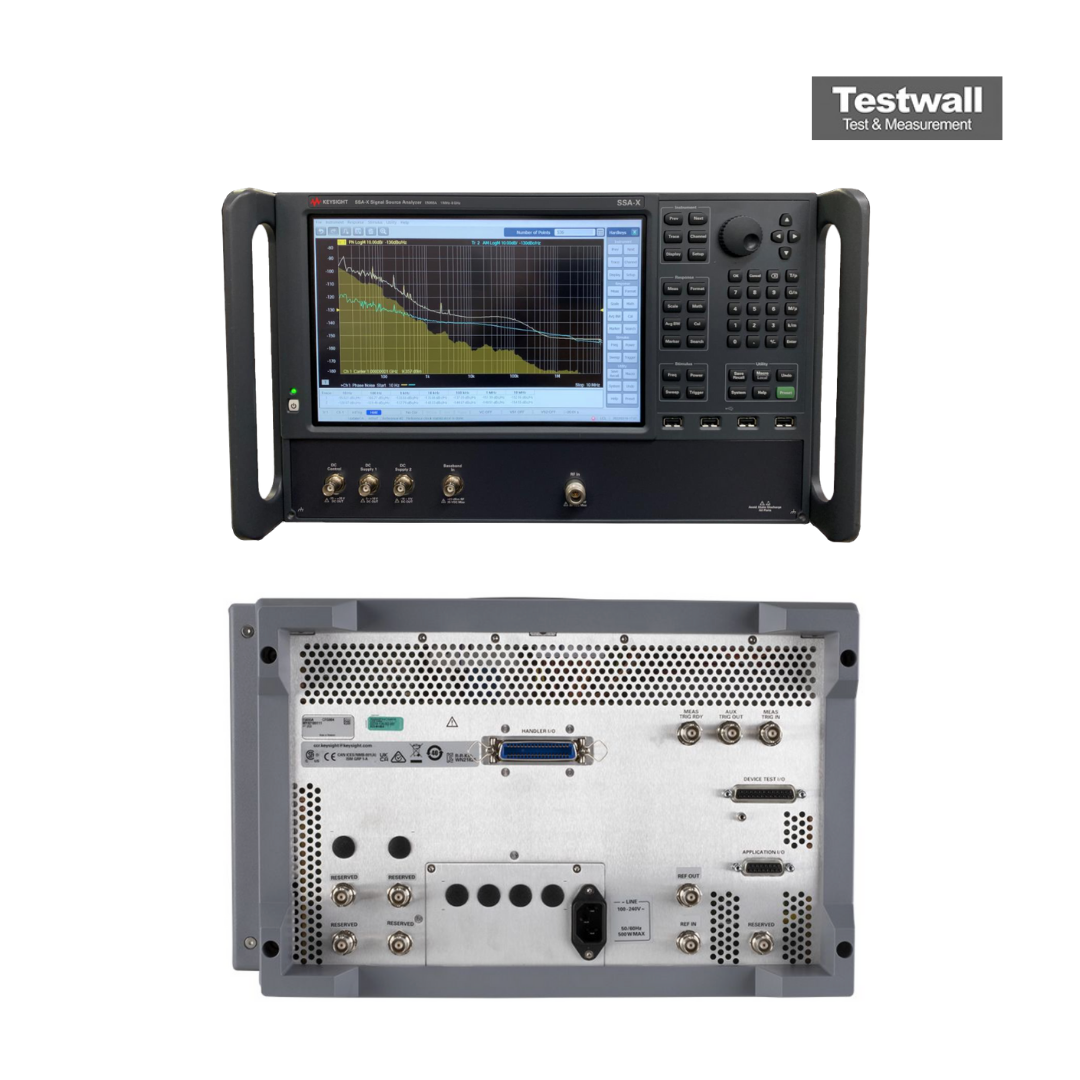

Keysight (Agilent) E5055A Signal Source Analyzer
Keysight's E5055A SSA-X Signal Source Analyzer is a next generation bench-top signal source solution for wireless communications, high-speed digital, and aerospace and defense applications. The E5055A offers superior performance with a RF frequency range of 1 MHz to 8 GHz, phase noise offset frequency of 0.01Hz to >1 GHz, and state-of-the-art system noise sensitivity -175 dBc/Hz (typical). Optimize measurement throughput and accuracy with flexible measurement settings.
Flexible measurement settings and a modern user interface improve measurement efficiency, while application support through software expands measurement coverage to meet new requirements. Gain accuracy and precision in phase noise measurements with an ultra-low noise floor and cross-correlation method. The Keysight E5055A provides an even lower noise floor than the E5052B SSA. Evaluate voltage-controlled oscillators (VCOs) with more flexibility by utilizing clean DC voltage (2 channels) and tuning voltage outputs. Solve your unique measurement requirements effectively and efficiently by using application software.
Specifications for the Keysight (Agilent) E5055A Signal Source Analyzer Include:
| Frequency Range | 1 MHz to 8 GHz |
| Min Offset Frequency | 1 mHz |
| Input power range | -50 dBm to +20 dBm (typ.) |
| Allan deviation | 4.0 x 10E-13 at tau(Ï„) = 1 sec |
