Keysight (Agilent) M9383B
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 1 MHz a 44 GHz |
| Potencia de salida máxima | +20 dBm |
| Resolución de frecuencia | 1 Hz |
| Pureza espectral (ruido de fase) | -135 dBc/Hz a 1 GHz con desplazamiento de 20 kHz |
| Factor de forma | PXIe (módulo de 2 ranuras) |
| Interfaz de control | PXI Express (PCIe x4) |
| Modulación soportada | AM, FM, PM, pulso y modulación en cuadratura (I/Q) |
| Ancho de banda de modulación I/Q | Hasta 2 GHz |
| Referencia de frecuencia | Referencia interna de 10 MHz / entrada de referencia externa |
| Alimentación | A través del chasis PXIe (no requiere alimentación externa independiente) |
Keysight (Agilent) M9383B Options:
- M9383B - F44 - Frequency range 1 MHz to 44 GHz
- M9383B - PMR - Pulse Modulation (basic pulse modulation)
- M9383B - PME - Pulse Modulation (enhanced pulse modulation)
- M9383B - D05 - Internal Baseband Generator, sample rate 1 Hz to 625 MHz
- M9383B - D06 - Internal Baseband Generator, sample rate 1 Hz to 625 MHz
- M9383B - D10 - Internal Baseband Generator, sample rate 1 Hz to 1.28 GHz
- M9383B - D11 - Internal Baseband Generator, sample rate 1 Hz to 1.28 GHz
- M9383B - D20 - Internal Baseband Generator, sample rate 1 Hz to 2.56 GHz
- M9383B - D21 - Internal Baseband Generator, sample rate 1 Hz to 2.56 GHz
- M9383B - D2E - Internal Baseband Generator, sample rate 1 Hz to 2.56 GHz (frequency dependent)
- M9383B - EXT - External I/Q input
- M9383B - DIQ - I/Q baseband output
- M9383B - PCH - Multi-channel baseband synchronization primary/secondary; relative phase adjustments channel 1 versus channel 2
- M9383B - ST5 - Phase noise option (ST5, for use with F32 or F44)
- M9383B - ST6 - Phase noise option (ST6, ultra-low phase noise)
- M9383B - 1EB - Higher maximum output power option
- M9383B - 1EE - Higher maximum output power option
- M9383B - 1EH - Harmonic filters below 2 GHz
- M9383B - 1ES - Spectral purity option
- M9383B - 320 - Pulse train generator (SCPI only), up to 2047 pulse patterns
- M9383B - M05 - 512 MSa arbitrary waveform playback memory
- M9383B - M10 - 1024 MSa arbitrary waveform playback memory
- M9383B - 002 - Dual channel configuration
| Model | M9383B |
|---|

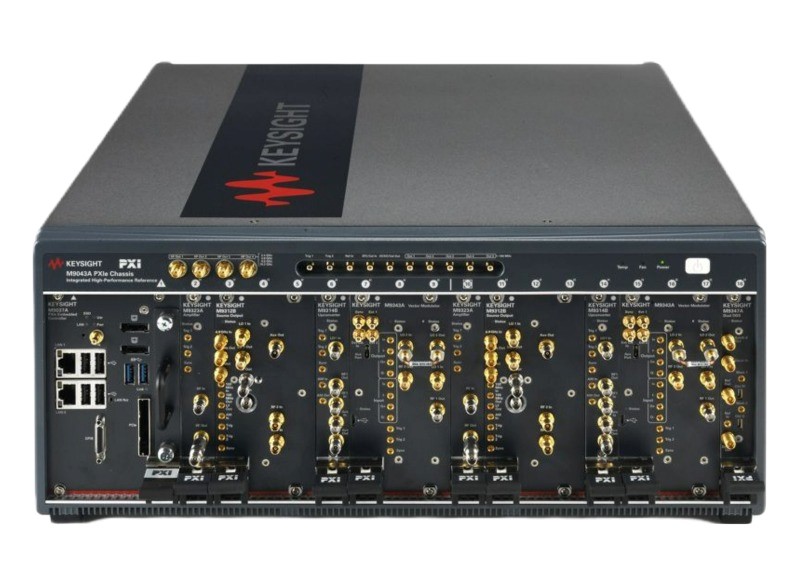

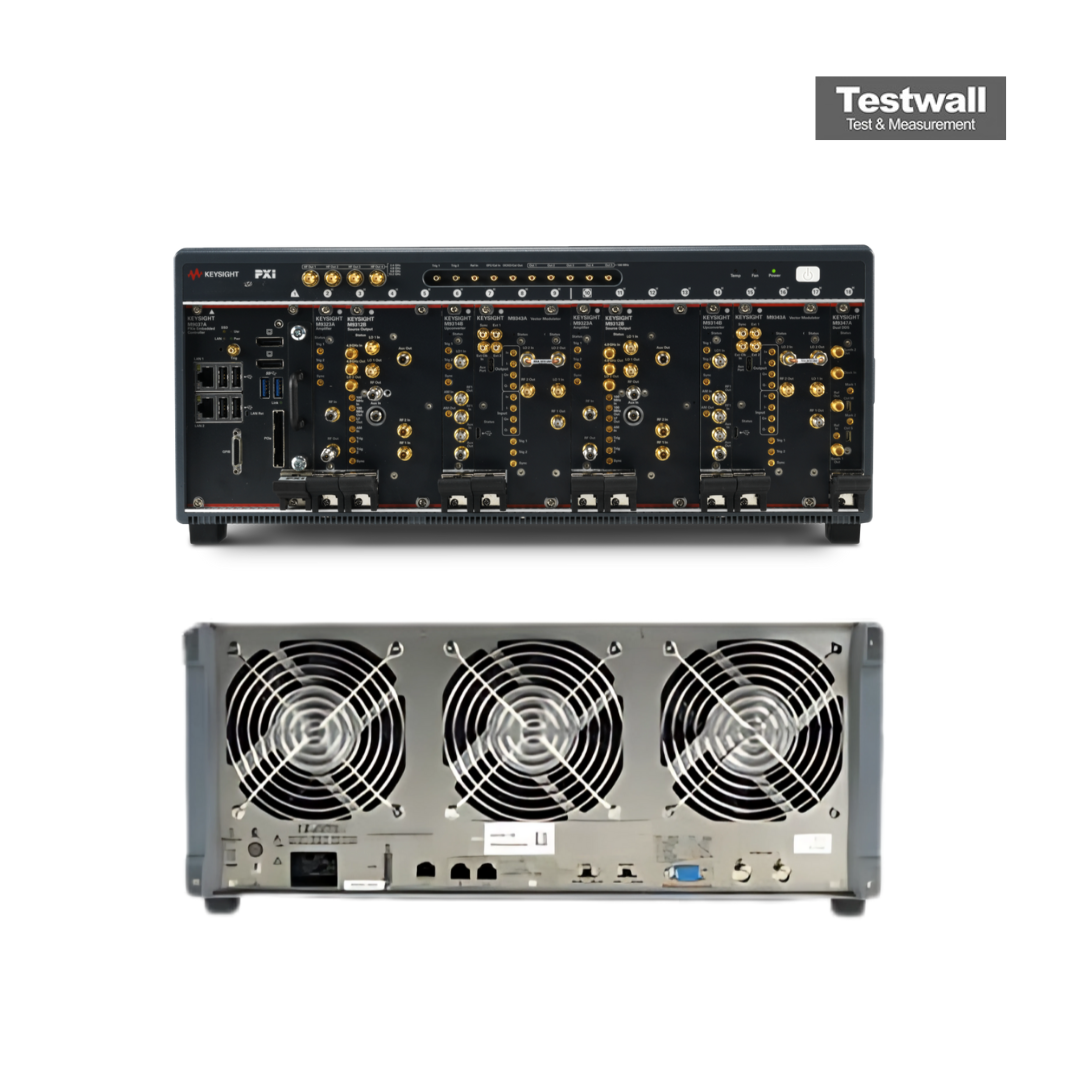

Keysight (Agilent) M9383B VXG-m Microwave Signal Generator
The Keysight M9383B is a Dual-channel PXIe Microwave Signal Generator from Keysight that operates from 1 MHz to 44 GHz with a 2 GHz RF Bandwidth. This signal generator has an output power range from -110 to 23 dBm. The high output power allows it to compensate for system loss and enable 5G power amplifier and over-the-air (OTA) testing. It has phase cohe LO and baseband synchronization for multi-user or beamforming MIMO OTA testing.
The M9383B signal generator is compatible with Keysight's PathWave Signal Generation software which can help accelerate design and test workflows. It has a new graphical user interface for 5G NR that delivers a streamlined experience when creating standard-compliant test signals. This is the modular version of this Signal Generator, that has no in-built screen. The same Signal Generator is available with a multi-touch screen under Model Number .
Specifications for the Keysight (Agilent) M9383B VXG-m Microwave Signal Generator Include:
| Frequency | 1 MHz to 44 GHz |
| Output Power @1 GHz | -110 dBm to +23 dBm |
| Harmonics @1 GHz | -54 dBc |
| Phase Noise @1 GHz (20 kHz offset) | -140 dBc/Hz |
