Keysight (Agilent)
Keysight (Agilent) N1914A
Power Meter, Dual, EPM Series
2 (hasta 4 con USB sensores) Canales
9 kHz a 110 GHz Rango de frecuencia
-70 a +44 dBm Rango de potencia
50 MHz, 1 mW (0 dBm) ±0,4% Referencia de potencia
promedio Tipos de medición
| Atributo | Valor |
|---|---|
| Canales | 2 (hasta 4 con USB sensores) |
| Rango de frecuencia | 9 kHz a 110 GHz |
| Rango de potencia | -70 a +44 dBm |
| Referencia de potencia | 50 MHz, 1 mW (0 dBm) ±0,4% |
| Tipos de medición | promedio |
| Sensores compatibles | 8480 serie, E-serie E441x/E930x, N8480 serie, U2000 serie USB |
| Velocidad de medición | 20 / 40 / 400 lecturas/s; 200 lecturas/s típ. con 2 canales |
| Precisión | ±0,02 dB o ±0,5% absolute; ±0,04 dB o ±1,0% relative |
| Pantalla | color LCD |
| Interfaces | GPIB, LAN (LXI), USB; Opc. VGA salida |
| Dimensiones (An × Al × P) | 212,6 × 88,5 × 348,3 mm |
| Peso | 3,7 kg |
Sensores de potencia compatibles
| Modelo | Rango de frecuencia | Rango de potencia | Tipo de sensor |
| 8481A | 10 MHz a 18 GHz | -30 a +20 dBm | termopar |
| 8481B | 10 MHz a 18 GHz | 0 a +44 dBm | termopar, con 25 W atenuador |
| 8481D | 10 MHz a 18 GHz | -70 a -20 dBm | diodo, promedio |
| 8481H | 10 MHz a 18 GHz | -10 a +35 dBm | termopar, con 3 W atenuador |
| 8482A | 100 kHz a 4,2 GHz | -30 a +20 dBm | termopar |
| 8482B | 100 kHz a 4,2 GHz | 0 a +44 dBm | termopar, con 25 W atenuador |
| 8482H | 100 kHz a 4,2 GHz | -10 a +35 dBm | termopar, con 3 W atenuador |
| 8483A | 100 kHz a 2 GHz | -30 a +20 dBm | diodo, promedio |
| 8485A | 50 MHz a 26,5 GHz (33 GHz con Opc. 033) | -30 a +20 dBm | termopar |
| 8485D | 50 MHz a 26,5 GHz (33 GHz con Opc. 033) | -70 a -20 dBm | diodo, promedio |
| 8487A | 50 MHz a 50 GHz | -30 a +20 dBm | termopar |
| 8487D | 50 MHz a 50 GHz | -70 a -20 dBm | diodo, promedio |
| R8486A | 26,5 a 40 GHz | -30 a +20 dBm | termopar, guía de onda |
| R8486D | 26,5 a 40 GHz | -70 a -20 dBm | diodo, promedio |
| Q8486A | 33 a 50 GHz | -30 a +20 dBm | termopar, guía de onda |
| Q8486D | 33 a 50 GHz | -70 a -20 dBm | diodo, promedio |
| V8486A | 50 a 75 GHz | -30 a +20 dBm (Opc. H02: -60 a +20 dBm) | diodo, promedio, guía de onda |
| W8486A | 75 a 110 GHz | -30 a +20 dBm | diodo, promedio, guía de onda |
| 8484A | 10 MHz a 18 GHz | -70 a -20 dBm | diodo, promedio |
| E8486A | 60 a 90 GHz (Opc. 201: 54 a 95 GHz) | -30 a +20 dBm (Opc. 100), -60 a +20 dBm (Opc. 200/201) | diodo, promedio, guía de onda |
| E4412A | 10 MHz a 18 GHz | -70 a +20 dBm | diodo, CW |
| E4413A | 50 MHz a 26,5 GHz | -70 a +20 dBm | diodo, CW |
| E9300A | 10 MHz a 18 GHz | -60 a +20 dBm | diodo, promedio, amplio rango dinámico |
| E9300B | 10 MHz a 18 GHz | -30 a +44 dBm | diodo, promedio, amplio rango dinámico |
| E9300H | 10 MHz a 18 GHz | -50 a +30 dBm | diodo, promedio, amplio rango dinámico |
| E9301A | 10 MHz a 6 GHz | -60 a +20 dBm | diodo, promedio, amplio rango dinámico |
| E9301B | 10 MHz a 6 GHz | -30 a +44 dBm | diodo, promedio, amplio rango dinámico |
| E9301H | 10 MHz a 6 GHz | -50 a +30 dBm | diodo, promedio, amplio rango dinámico |
| E9304A | 9 kHz a 6 GHz | -60 a +20 dBm | diodo, promedio, amplio rango dinámico |
| N8481A | 10 MHz a 18 GHz | -35 a +20 dBm | termopar |
| N8482A | 100 kHz a 6 GHz | -35 a +20 dBm | termopar |
| N8485A | 10 MHz a 26,5 GHz (33 GHz con Opc. 033) | -35 a +20 dBm | termopar |
| N8486AR | 26,5 a 40 GHz | -35 a +20 dBm | termopar, guía de onda |
| N8487A | 50 MHz a 50 GHz | -35 a +20 dBm | termopar |
| N8488A | 10 MHz a 67 GHz (a 70 GHz típ.) | -35 a +20 dBm | termopar |
| U2000A | 10 MHz a 18 GHz | -60 a +20 dBm | USB promedio potencia sensor (diodo) |
| U2001A | 10 MHz a 6 GHz | -60 a +20 dBm | USB promedio potencia sensor (diodo) |
| U2004A | 9 kHz a 6 GHz | -60 a +20 dBm | USB promedio potencia sensor (diodo) |
| U2000B | 10 MHz a 18 GHz | -30 a +44 dBm | USB promedio potencia sensor (diodo) |
| U2001B | 10 MHz a 6 GHz | -30 a +44 dBm | USB promedio potencia sensor (diodo) |
| U2000H | 10 MHz a 18 GHz | -50 a +30 dBm | USB promedio potencia sensor (diodo) |
| U2001H | 10 MHz a 6 GHz | -50 a +30 dBm | USB promedio potencia sensor (diodo) |
| U2002H | 50 MHz a 24 GHz | -50 a +30 dBm | USB promedio potencia sensor (diodo) |
| U8481A | 10 MHz a 18 GHz (Opc. 100), DC a 18 GHz (Opc. 200) | -35 a +20 dBm | USB promedio potencia sensor (termopar) |
| U8485A | 10 MHz a 33 GHz (Opc. 100), DC a 33 GHz (Opc. 200) | -35 a +20 dBm | USB promedio potencia sensor (termopar) |
| U8487A | 10 MHz a 50 GHz | -35 a +20 dBm | USB promedio potencia sensor (termopar) |
| U8488A | 10 MHz a 67 GHz | -35 a +20 dBm | USB promedio potencia sensor (termopar) |
| U8489A | DC a 120 GHz | -35 a +20 dBm | USB promedio potencia sensor (termopar) |
Keysight (Agilent) N1914A Options:
- N1914A - 101 - Single/dual-channel average power meter
- N1914A - 201 - Single/dual-channel average power meter with VGA, trigger in/out, 1 front and 1 rear USB port
- N1914A - B01 - Without battery
- N1914A - B02 - With battery
- N1914A - C01 - Front calibrator, front sensor
- N1914A - C02 - Front calibrator, parallel front and rear sensor
- N1914A - C03 - Rear calibrator, parallel front and rear sensor
- N1914A - 200 - 438A code compatibility
- N1914A - 0B0 - Delete hard copy English language User's Guide
- N1914A - 0BF - Hard copy English language Programming Guide
- N1914A - 0B1 - Hard copy English language User's Guide and Installation Guide
- N1914A - 0BK - Hard copy English language User's Guide and Programming Guide
- N1914A - ABJ - Hard copy Japanese localization User's Guide and Programming Guide

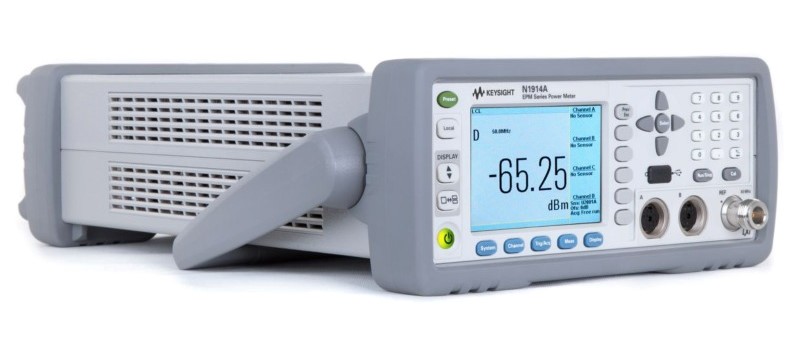

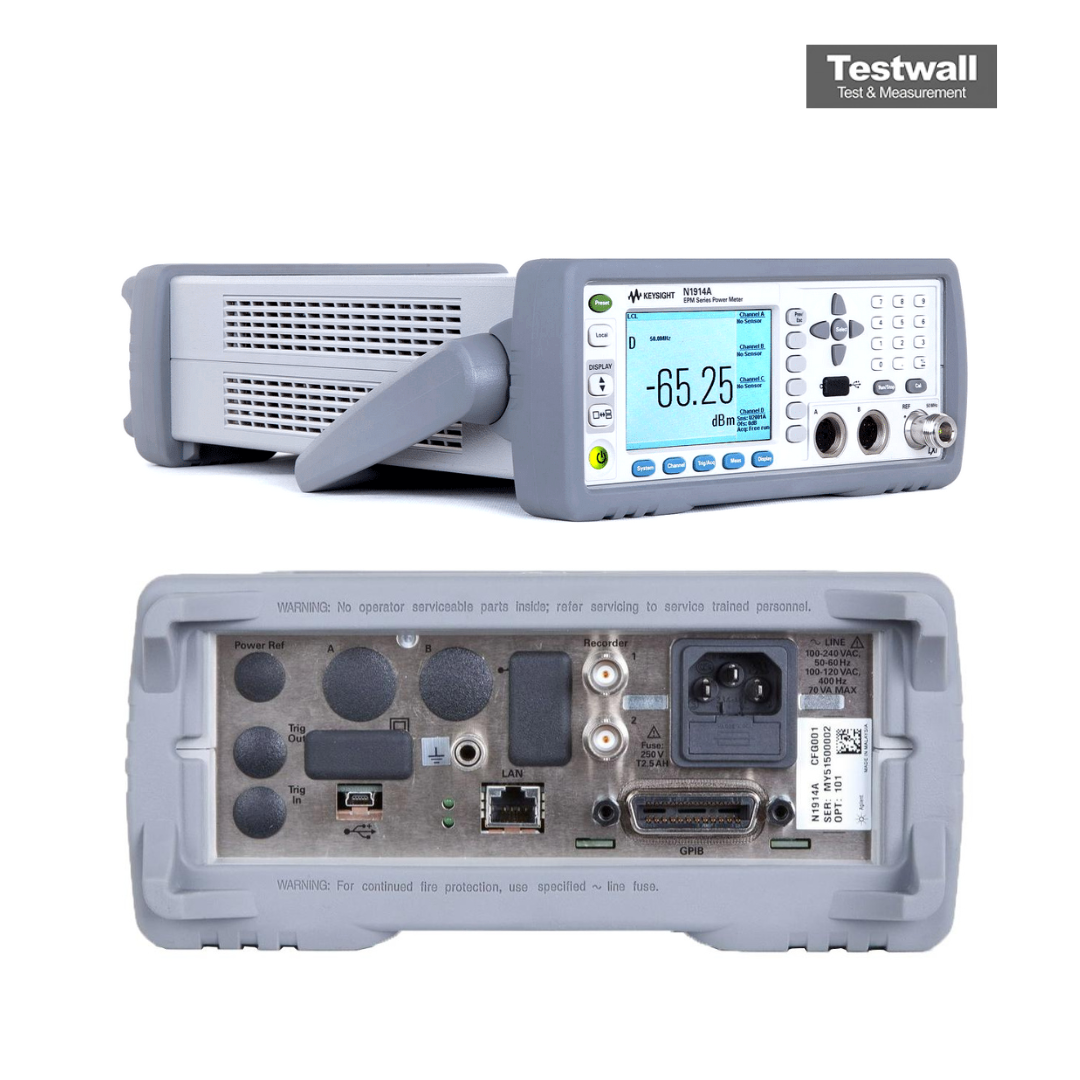

KEYSIGHT N1914A (Agilent) Power Meter
The Keysight N1914A Power Meter replaces the E4419B Power Meter, and offers more capability.
Features of the N1914A Power meter include:
- Up to four Measurement Channels (w/ optional USB ports)
- Measure faster with improved measurement speed of 400 readings per second with Agilent E series Sensors
- View test results easily with color LCD readout
- USB, LAN/LXI-C and GPIB interfaces
- Automate frequency/power sweep measurements with optional external trigger in/out feature
- Confirm battery power with a single-button push (only with battery option)
- HP 436A, 437B and 438A code compatibility (channel dependent)
- Enhance manufacturing test by connecting a large external monitor with VGA output option
Specifications of the Keysight N1914A Power Meter include:
- Frequency range of 9 kHz to 110 GHz (sensor dependent)
- Wide dynamic range of -70 to +44 dBm (sensor dependent)
- Speed improvement by 2X for E-Series sensors: up to 400 readings/sec
- Absolute accuracy: ±0.02dB logarithmic, ±0.5% linear
- Relative accuracy: ±0.04dB logarithmic, ±1% linear
