Keysight (Agilent) N8485A
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 100 MHz a 50 GHz |
| Rango de potencia | -35 dBm a +20 dBm |
| Tipo de sensor | Sensor de potencia de diodo |
| Conector | 2,4 mm (macho) |
| Impedancia | 50 Ohmios |
| Incertidumbre de calibración | ±0,9 % (a 50 MHz) |
| Factor de reflexión (SWR) | 1,15 (máximo, a 50 GHz) |
| Potencia máxima de entrada | 200 mW (23 dBm) promedio |
| Temperatura de operación | 0 °C a 55 °C |
| Compatibilidad con medidores de potencia | Compatible con medidores de potencia Keysight serie N1911A/N1912A y E4418B/E4419B |
Keysight (Agilent) N8485A Options:
- N8485A - CFT - N8480 sensor without the calibration factor table stored in the EEPROM. Calibration factor data is provided on the label attached to the power sensor
- N8485A - 033 - N8485A model with EEPROM feature with extended frequency range, 10 MHz to 33 GHz
- N8485A - 100 - 3.5 mm (male) connector for N8485A
- N8485A - 1A7 - ISO 17025 calibration with test data
- N8485A - A6J - ANSI Z540 calibration with test data
- N8485A - R-51B-001-3C - Return to Keysight Technologies Warranty - 3 years
- N8485A - R-51B-001-5C - Warranty Assurance Plan - Return to Keysight Technologies - 5 years
- N8485A - OB1 - English language Operating and Service Guide
- N8485A - ABJ - Japanese localization Operating and Service Guide
| Model | N8485A |
|---|

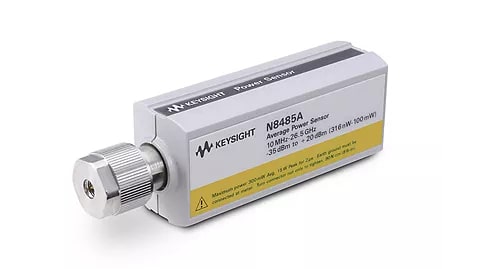

Keysight (Agilent) N8485A Thermocouple Power Sensor
The Keysight N8485A thermocouple power sensors are amongst the most accurate and reliable sensors, plus they include EEPROM, and extended frequency and power ranges. The sensors' low SWR further enhances accuracy by minimizing mismatch uncertainty. These sensors also come with dual-range power for greater sensitivity to fluctuating signals. With high accuracy and stability, the N8485A helps you test confidently, faster.
The Keysight N8485A sensor eliminates cumbersome keying-in of the calibration factor (CF), eliminates manual input errors, and saves you time and effort. CF, linearity, and temperature corrections are all stored in the sensors' EEPROM €”auto-downloaded on calibration. The Keysight N8485A sensors are backward compatible with the Keysight leading range of power meters, including the P-Series, EPM-P Series, and EPM Series. All that's needed is a simple firmware upgrade that's downloadable for free.
Specifications for the Keysight (Agilent) N8485A Thermocouple Power Sensor Include:
| Frequency Range | 10 MHz to 26.5 GHz |
| Dynamic Range | -35 dBm to +20 dBm |
| Damage level (average power) | +25 dBm |
| Damage level (peak power) | 15 W/2 μs |
